Chapter 3: Installation
3-8 2E43-51/2E43-51R User’s Guide
3.4.3.2 Connecting Power to the 2E43-51R
To connect the 2E43-51R to the power sources, proceed as follows:
1. Plug each power cord into a grounded wall outlet, see Figure 3-5 . To
take advantage of the load sharing and redundancy capabilities, each
power cord must be plugged into a dedicated ac outlet. The POWER
LED turns on (green) and the CPU LED turns on (green) briefly.

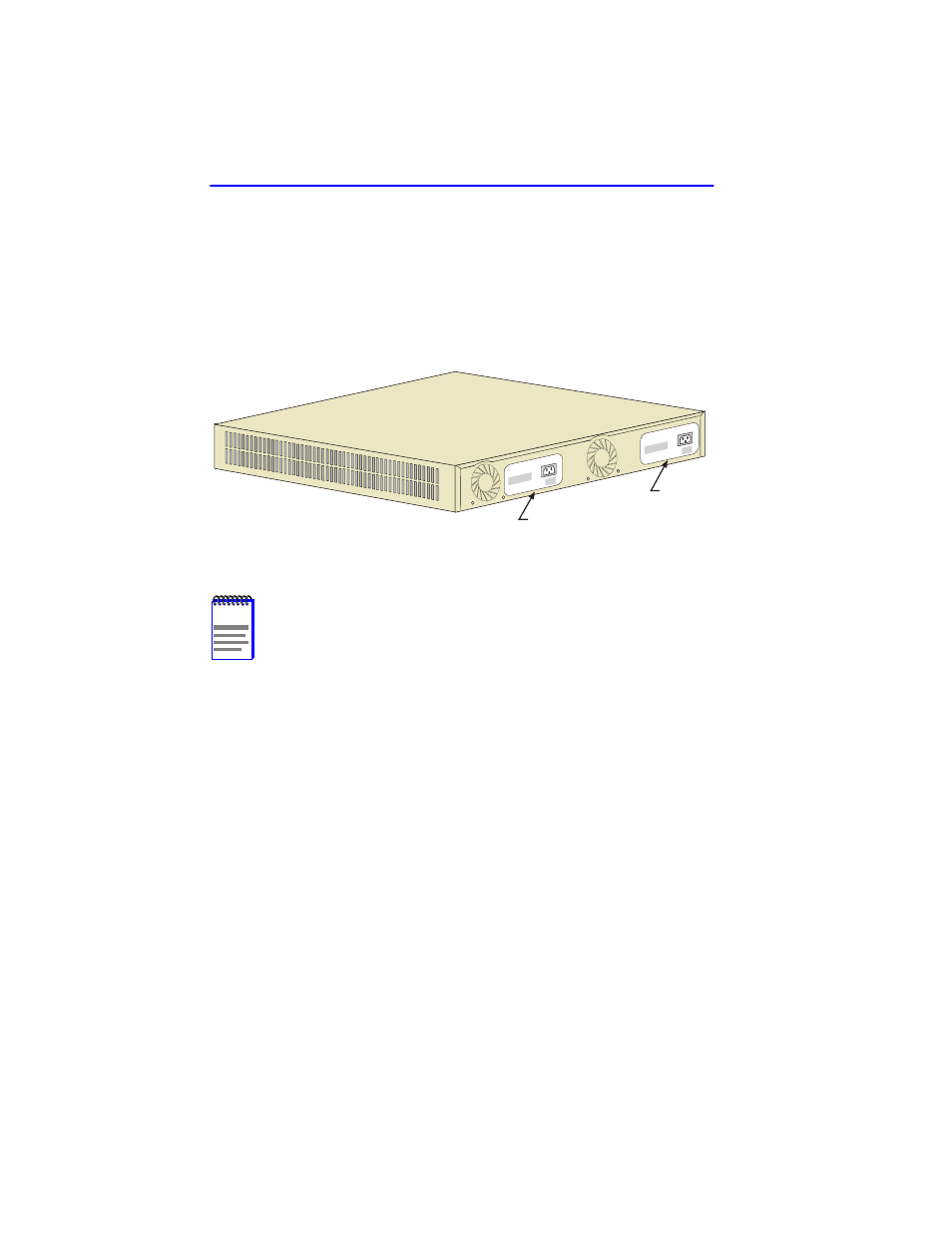

Figure 3-5 2E43-51R Rear View
2. Observe the LANVIEW LEDs. After a successful boot, the CPU LED
turns on (green). If the PWR LED is not green after one minute and
turns amber, there is no power redundancy. Check the power cord
connections and the power source. If there are no problems with the
power cord connections or power source and the PWR LED is still not
green, contact the Cabletron Systems Global Call Center. Refer to
Section 1.6 for details.
NOTE
It takes approximately one minute for the 2E43-51R to boot up.
Primary
Redundant
8H02-26R
1960-62
