Appendix C: Optional Installations and Mode Switch Bank Settings
C-10 2E43-51/2E43-51R User’s Guide
4. Carefully lower the Fast Ethernet Interface Module onto the standoffs
while inserting the module connector into the associated Motherboard
Connector.

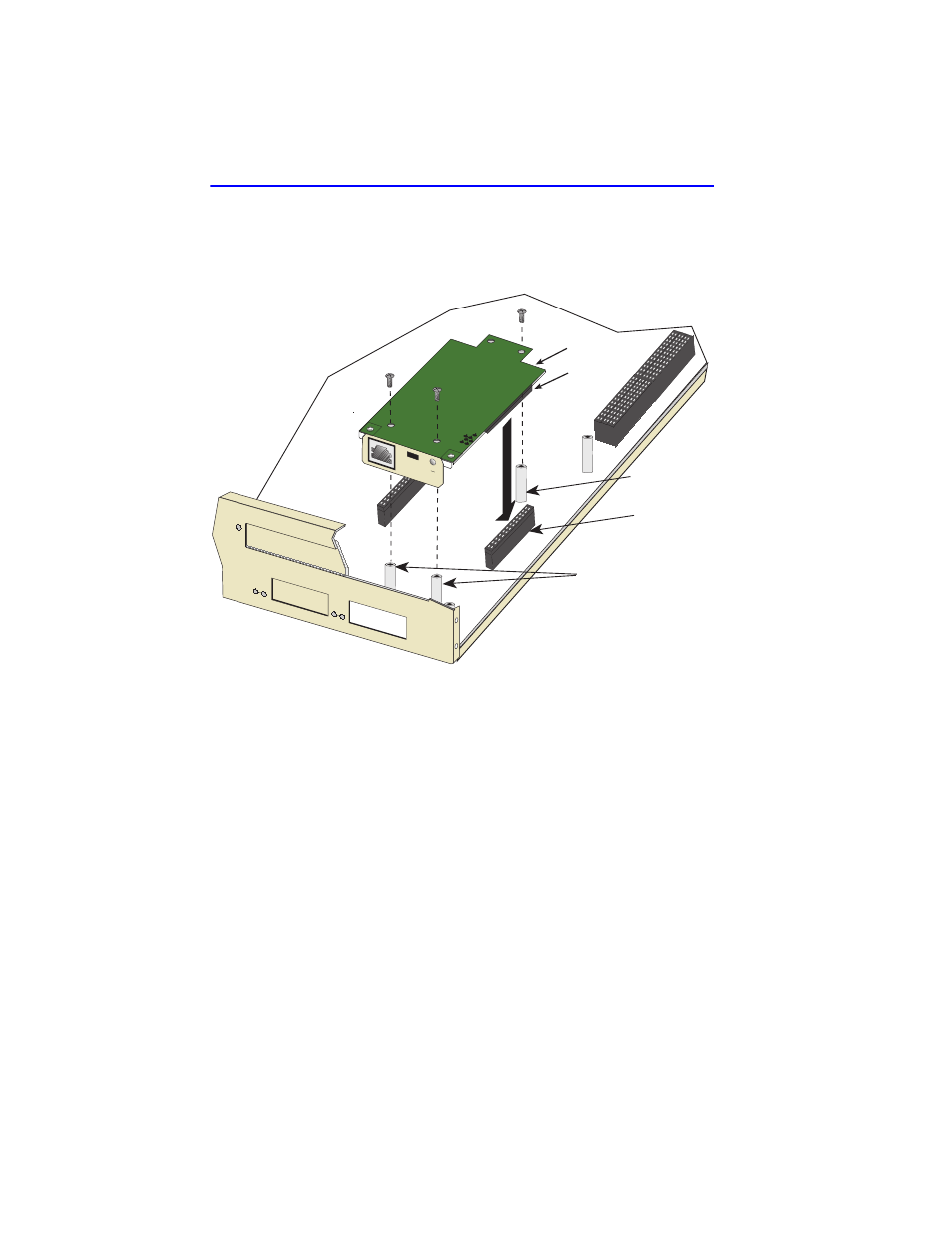

Figure C-5 Installing the Fast Ethernet Interface Module
5. Press down firmly on the Fast Ethernet Interface Module until the pins
slide all the way into the Motherboard Connector. Ensure that the Fast
Ethernet Interface Module seats flush on the standoffs.
6. Secure the Fast Ethernet Interface Module with the screws saved in
steps 1 and 2.
7. Reinstall the cover.
2251-39
FE-100TX 10
100
Front
Standoffs
Rear
Standoff
Module
Motherboard
Connector
Module
Connector
5
6
