Setting Up the Scanner

Connecting to a Network

This section explains how to connect
this machine to a network.

Important

❒ Use a 100BASE-TX (category 5) or

10BASE-T network cable when
you connect this machine to a net-
work.

AAAA

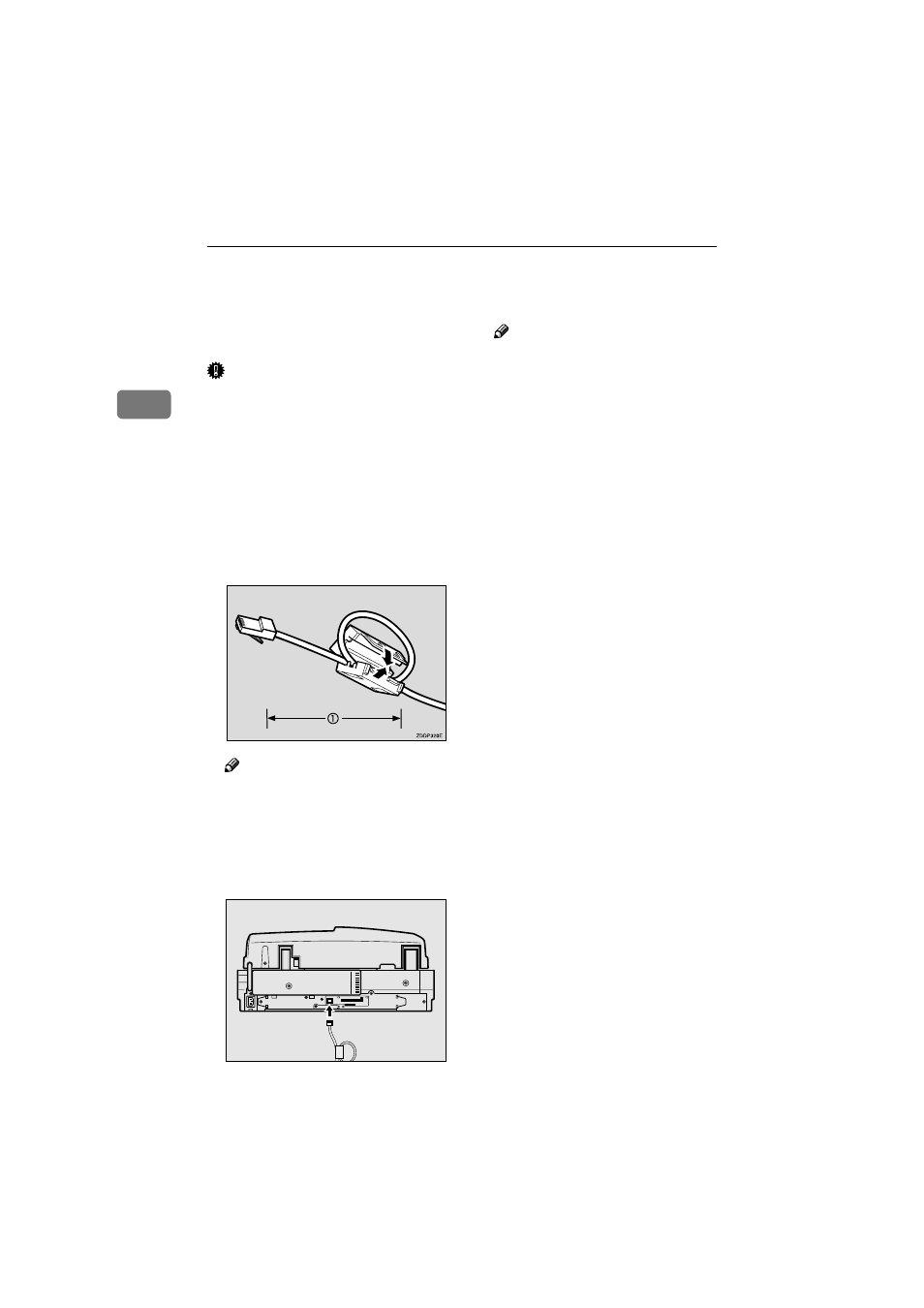

With the network cable you use
for connection, create a single
loop about 15cm (6”)(

A) away

from an end of the cable, and then
attach the ferrite core that comes
with this machine as illustrated
below.

Note

❒ Skip this step when you use this

machine in North America.

BBBB

Insert the network cable’s end
that has the ferrite core into the
network interface connector of
this machine.

Note

❒ When you use this machine in

North America, insert an end of
the network cable into the net-
work interface connector of this
machine.

CCCC

Insert the other end of the net-
work cable into an appropriate
connector of a network device,
such as an Ethernet hub.

ADG004S
