Appendix
186
11
Using Wireless LAN
This section describes the setting pro-
cedure related to network when the
optional “Expansion wireless LAN
board type BII” is used
Preparation
Prepare a 10BASE-T or 100BASE-
TX cross network cable before-
hand. When you use a network de-
vice as a hub, prepare a 10BASE-T
or 100BASE-TX straight network
cable.
Outline to Use Wireless LAN
You can configure settings for a wire-
less LAN card using [Configuration]
→
[Basic Settings]
→ [TCP/IP] on the Web
Status Monitor. Before getting start-
ed, it is necessary to prepare for log-
ging in the Web Status Monitor.
Configuring Wireless LAN
Settings
Preparation
It is necessary to change the net-
work settings of the computer that
you use for configuring wireless
LAN settings. Be sure to note your
computer’s network settings be-
fore you change them, for refer-
ence when you restore the settings
afterwards.
AAAA

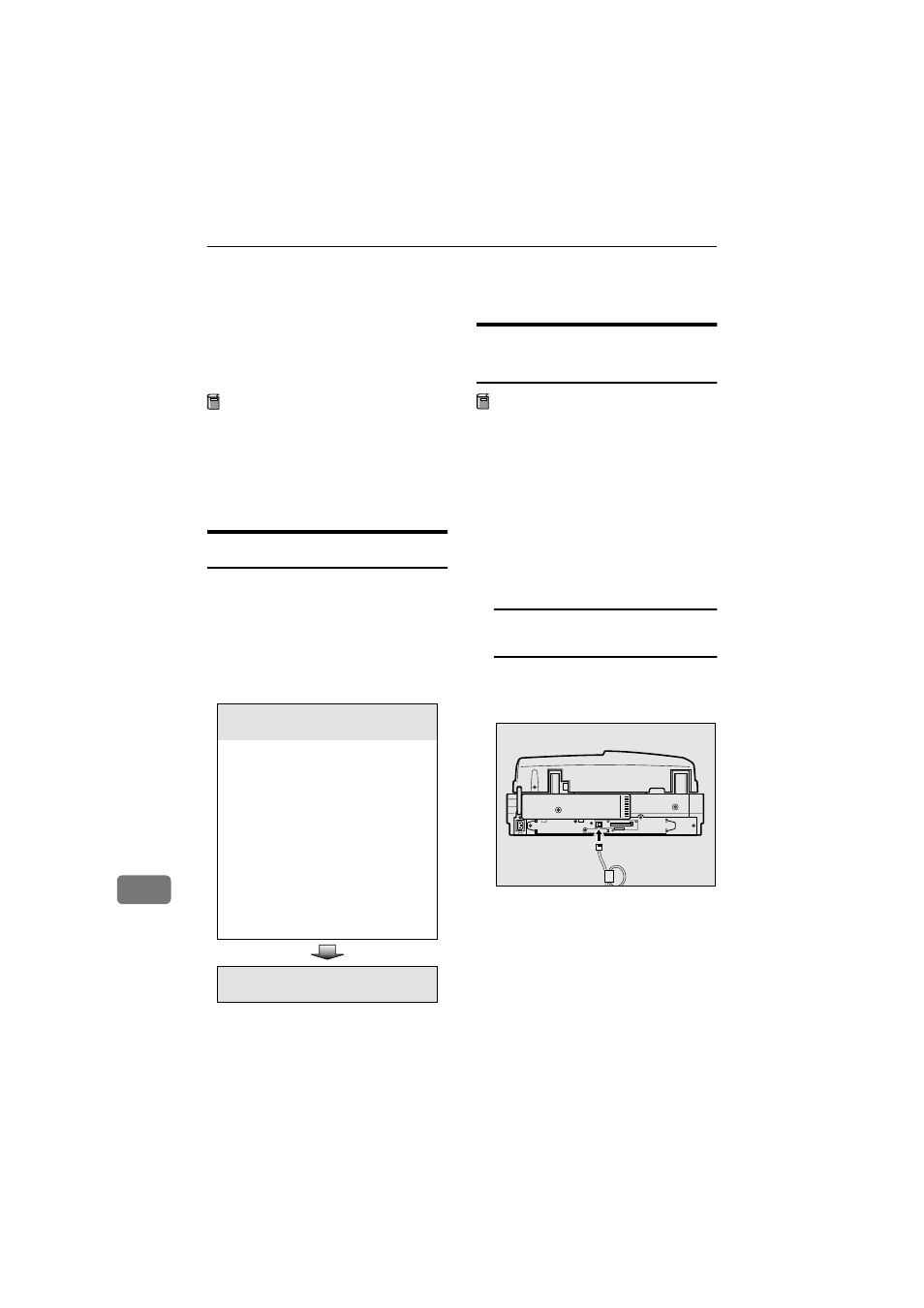

Connect a computer to this ma-
chine.
When you use a cross network
cable
A Connect a cross network cable
to the network interface con-
nector of this machine.
B Connect the other end of the
cable to the computer.
Make preparations to log in to the web
status monitor.
Connect this machine and a com-
puter using a network cable tem-
porarily
Sample setting for this machine:
IP Address : 192.168.1.2
Subnet Mask :
255.255.255.0
Sample setting for the computer:
IP Address : 192.168.1.3
Subnet Mask :
255.255.255.0
Use the Web Status Monitor to config-
ure the wireless LAN settings.
ADG004S
