Chapter 4 Innovation Series Water Heaters
GF-128
Initial Start-Up USER MANUAL OMM-0079_0B
07/21/11 AERCO International, Inc.
· 100 Oritani Dr. · Blauvelt, NY 10913 · Ph: 800-526-0288
Page 43 of 200

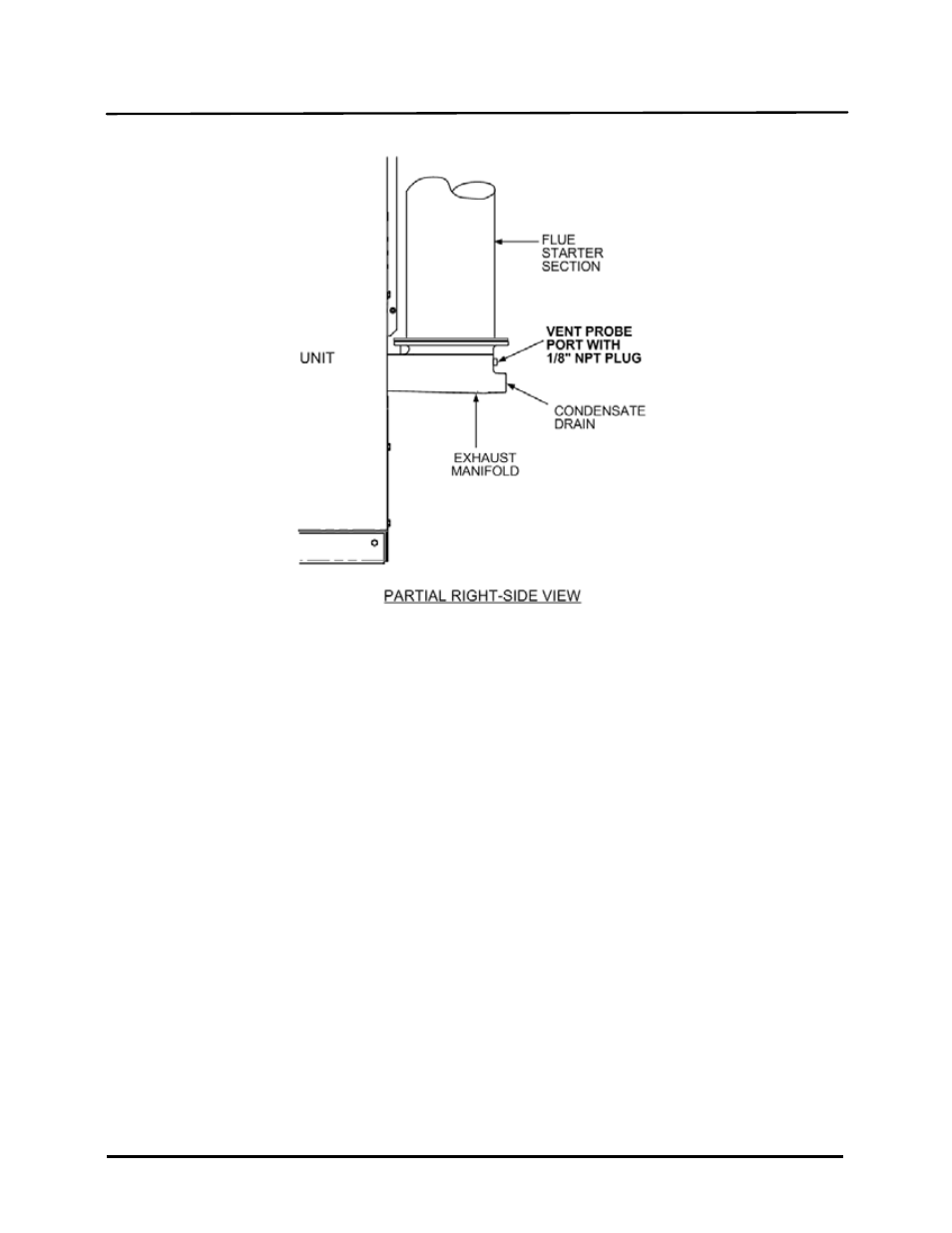

Figure 4-2 Analyzer Probe Hole Location
4.3 NATURAL GAS COMBUSTION CALIBRATION
The Innovation Heater is combustion calibrated at the factory prior to shipping. However, recalibration as
part of initial start-up is necessary due to changes in the local altitude, gas BTU content, gas supply piping
and supply regulators. Factory Test Data sheets are shipped with each unit. These sheets must be filled
out and returned to AERCO for proper Warranty Validation.
It is important to perform the following procedure as outlined. This will keep readjustments to a minimum
and provide optimum performance.
1. Open the water supply and return valves to the unit and ensure that the system pumps are running.
2. Open the natural gas supply valve(s) to the unit.
3. Set the control panel ON/OFF switch to the OFF position.
4. Turn on external AC power to the unit. The display will show LOSS OF POWER and the time and
date.
5. Set the unit to the Manual Mode by pressing the AUTO/MAN key. A flashing Manual Valve Position
message will be displayed with the present position in %. Also, the MANUAL LED will light.
6. Adjust the air/fuel valve position to 0% by pressing the
▼ arrow key.
7. Ensure that the leak detection ball valve downstream of the SSOV is open.
8. Set the ON/OFF switch to the ON position
.
9.
Change the valve position to 29% using the ▲ arrow key. The unit should begin its start sequence and
fire.
