ALTERNATOR
11-22 TNV IDI Service Manual
Dynamo
6. Reinstall the flat washer (Figure 11-28, (4)),
lock washer (Figure 11-28, (3)), and nut
(Figure 11-28, (2)). Tighten the nut to the
specified torque.
7. Reinstall the rear cap (Figure 11-28, (1)).

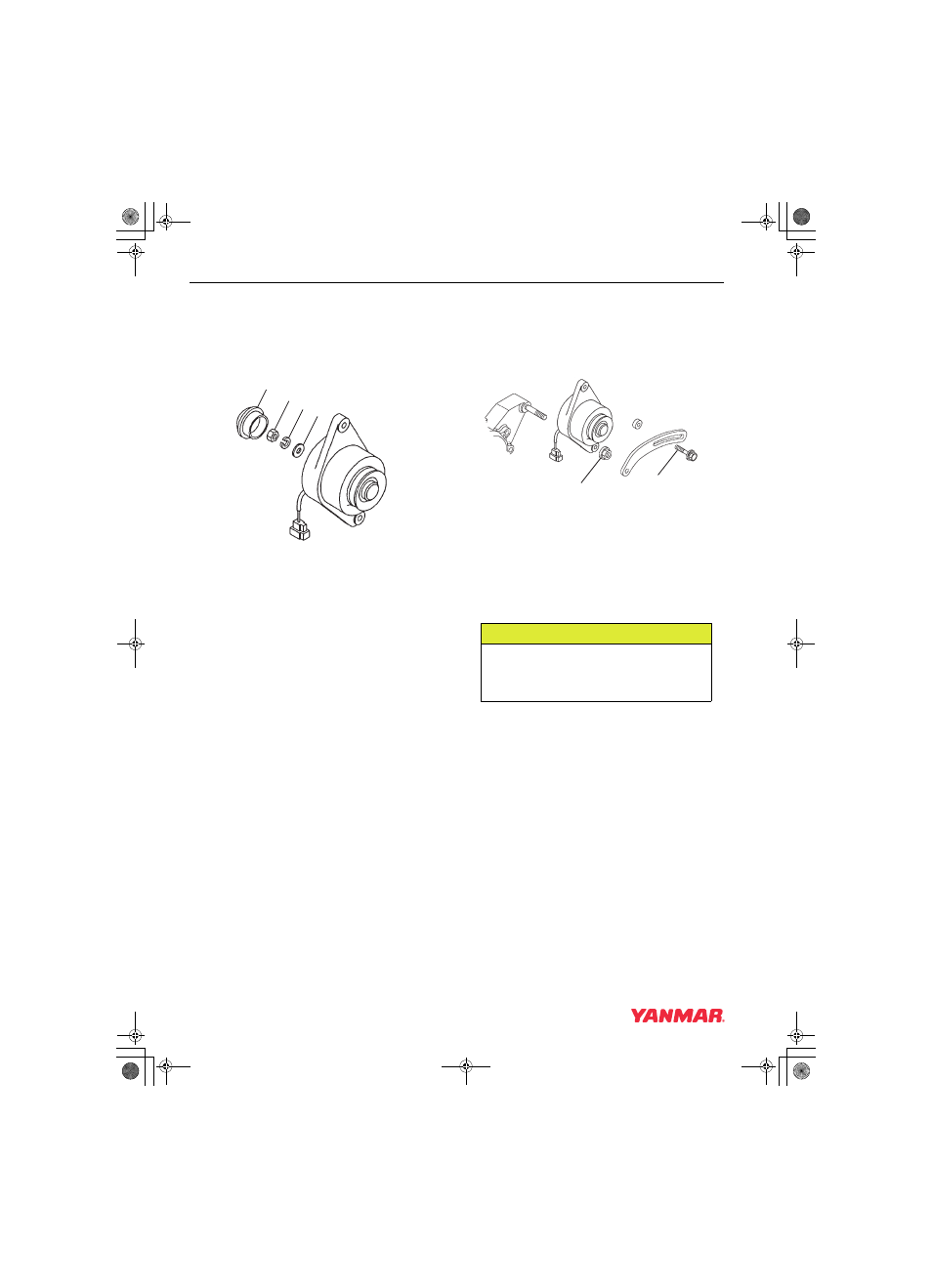

Figure 11-28
Installation of Dynamo
1. Position the dynamo on the gear case. Loosely
reinstall the nut (Figure 11-29, (2)) on the gear
case stud and the V-belt adjuster bolt
(Figure 11-29, (1)).
Figure 11-29
2. Reconnect the dynamo output wire connector.
3. Reinstall the V-belt. Tighten the V-belt to the
proper tension. See Check and Adjust Cooling
Fan V-Belt on page 5-27.
4. Start the engine. Listen for any unusual sounds
from the alternator.
5. Verify that the charge indicator is ON while the
engine is operating. If the charge indicator is
not ON, repair the problem before operating the
engine.
(1)
(2)
(3)
(4)
0002143
CAUTION
Do not operate the engine if the
alternator is producing unusual sounds.
Damage to the alternator will result.
0000039en
0002141 (1)
(2)
