STARTER MOTOR
TNV IDI Service Manual 10-11
Starter Motor

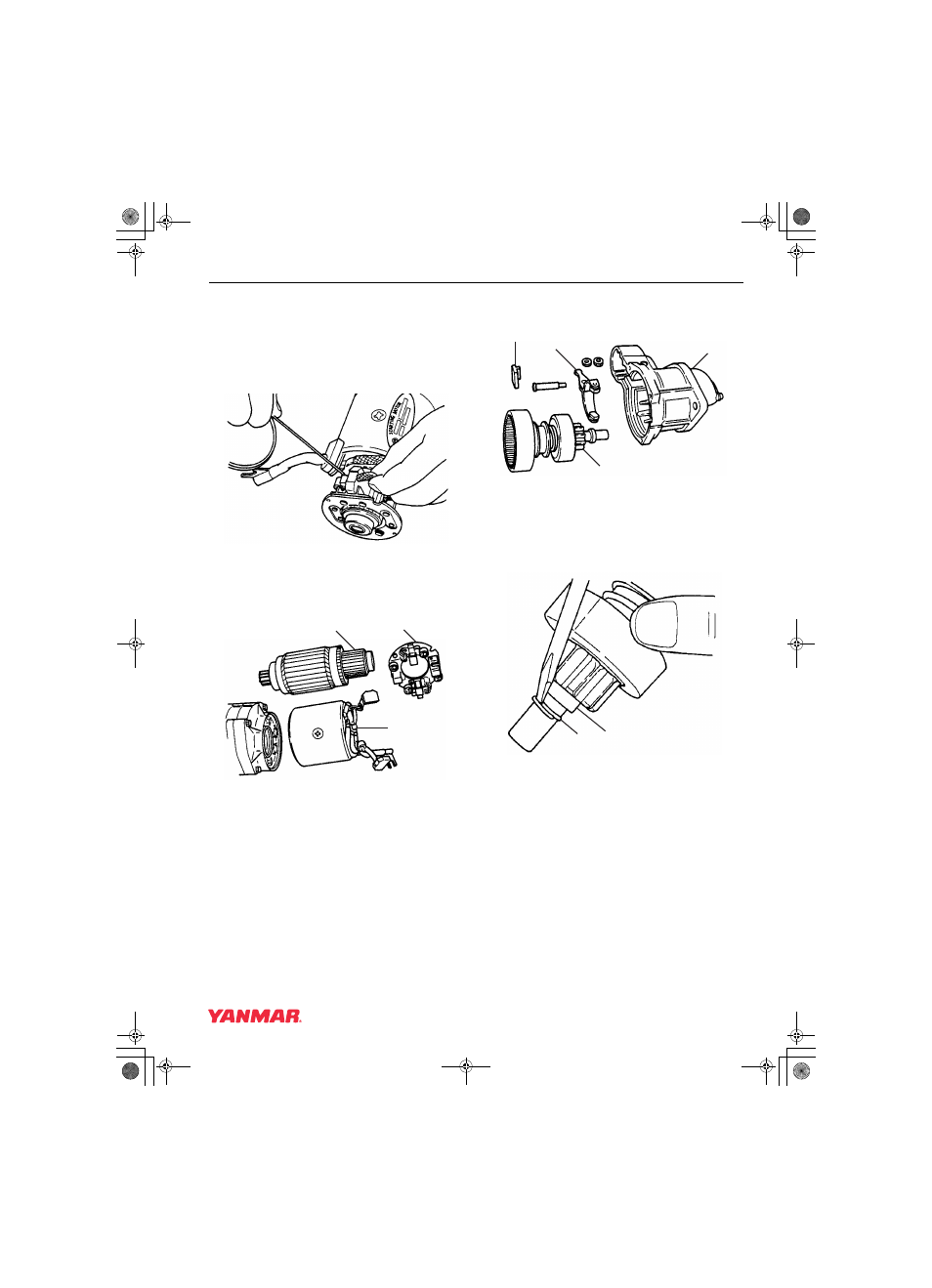

6. Pull the brush springs up using a brush spring
puller. On the negative (-) side, bring the brush
spring into contact with the side of the brushes
to hold the brushes clear of the commutator
surface. On the positive (+) side, remove the
brushes from the brush holder assembly
(Figure 10-6).
Figure 10-6
7. Remove the brush plate and holder
(Figure 10-7, (1)).
Figure 10-7
8. Pull the field assembly (Figure 10-7, (3)) off
from the armature assembly (Figure 10-7, (2)).
9. Remove the armature from the intermediate
housing.
10. Remove the intermediate housing, gear and
pinion shaft assembly (Figure 10-8, (4)) from
the pinion housing (Figure 10-8, (3)).
Disengage from the shift lever as it is removed.
11. Remove the shift lever (Figure 10-8, (2)), pin,
and spacer (Figure 10-8, (1)).
Figure 10-8
12. Pull the pinion stop (Figure 10-9, (1)) down to
expose the retaining ring. Using a flat-blade
screwdriver, remove the retaining ring
(Figure 10-9, (2)) from the pinion shaft.
Figure 10-9
