ENGINE
6-16 TNV IDI Service Manual

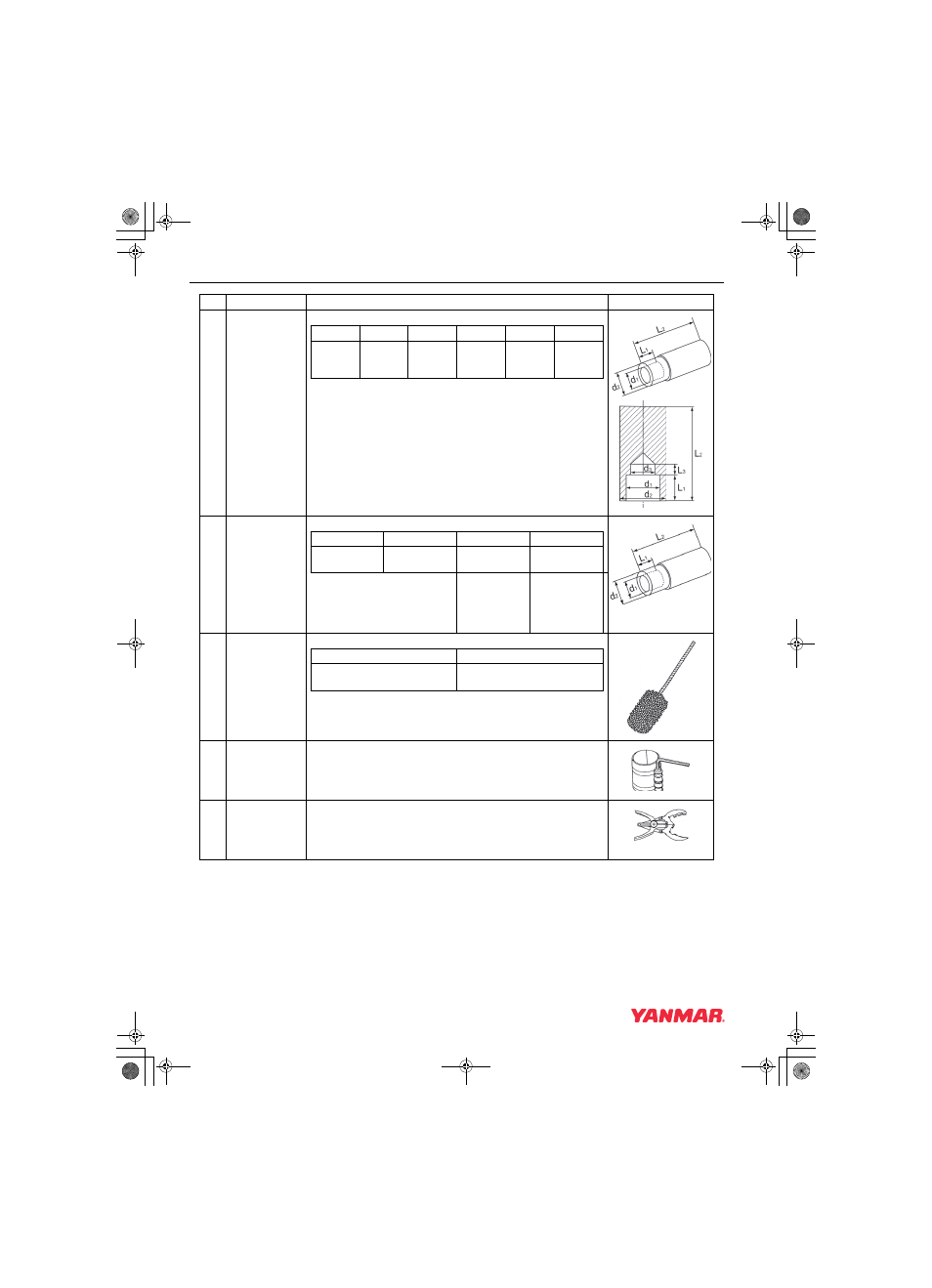

Special Service Tools
5
Stem Seal Tool
(for Installing
Stem Seals)
d1 d2 d3 L1 L2 L3
0.591 in.
(15 mm)
0.827 in.
(21 mm)
0.472 in.
(12 mm)
0.433 in.
(11 mm)
2.559 in.
(65 mm)
0.157 in.
(4 mm) or
more
Allowance:
d1: ±0.00787 in. (±0.2 mm)
L1: ±0.00393 in. (±0.1 mm)
Locally Manufactured
6
Camshaft
Bushing Tool
(For Removing
Camshaft
Bushing)
L1 L2 d1 d2
0.709 in.
(18 mm)
2.756 in.
(70 mm)
1.772 in.
(45 mm)
1.890 in.
(48 mm)
Locally Manufactured
Allowance d1:
-0.0118 to
-0.0236 in.
(-0.3 to -0.6
mm)
Allowance d2:
-0.0118 to
-0.0236 in.
(-0.3 to -0.6
mm)
7
Flex-Hone
(For Preparing
Cylinder Walls)
Yanmar Part No. Cylinder Bore
129400-92410
2.756 - 2.992 in.
(70 - 76 mm)
8
Piston Ring
Compressor
(For Installing
Pistons)
Yanmar Part No. 955500-02476
The Piston Insertion Tool is Applicable for
2.362 - 4.921 in. (60 - 125 mm) Diameter Pistons
9
Piston Ring Tool
(For Removing/
Installing of
Piston Rings)
Available Locally
No Tool Name Applicable Model and Tool Size Illustration
0000820
0000822
0000823
0000824
0000825
