STARTER MOTOR
10-10 TNV IDI Service Manual
Starter Motor
Removal of Starter Motor
1. Disconnect the battery cables at the battery,
negative (-) cable first.
2. Remove the electrical wires from the solenoid
switch assembly.
3. Remove the starter mounting bolts
(Figure 10-2, (1)). Remove the starter motor
from the flywheel housing.

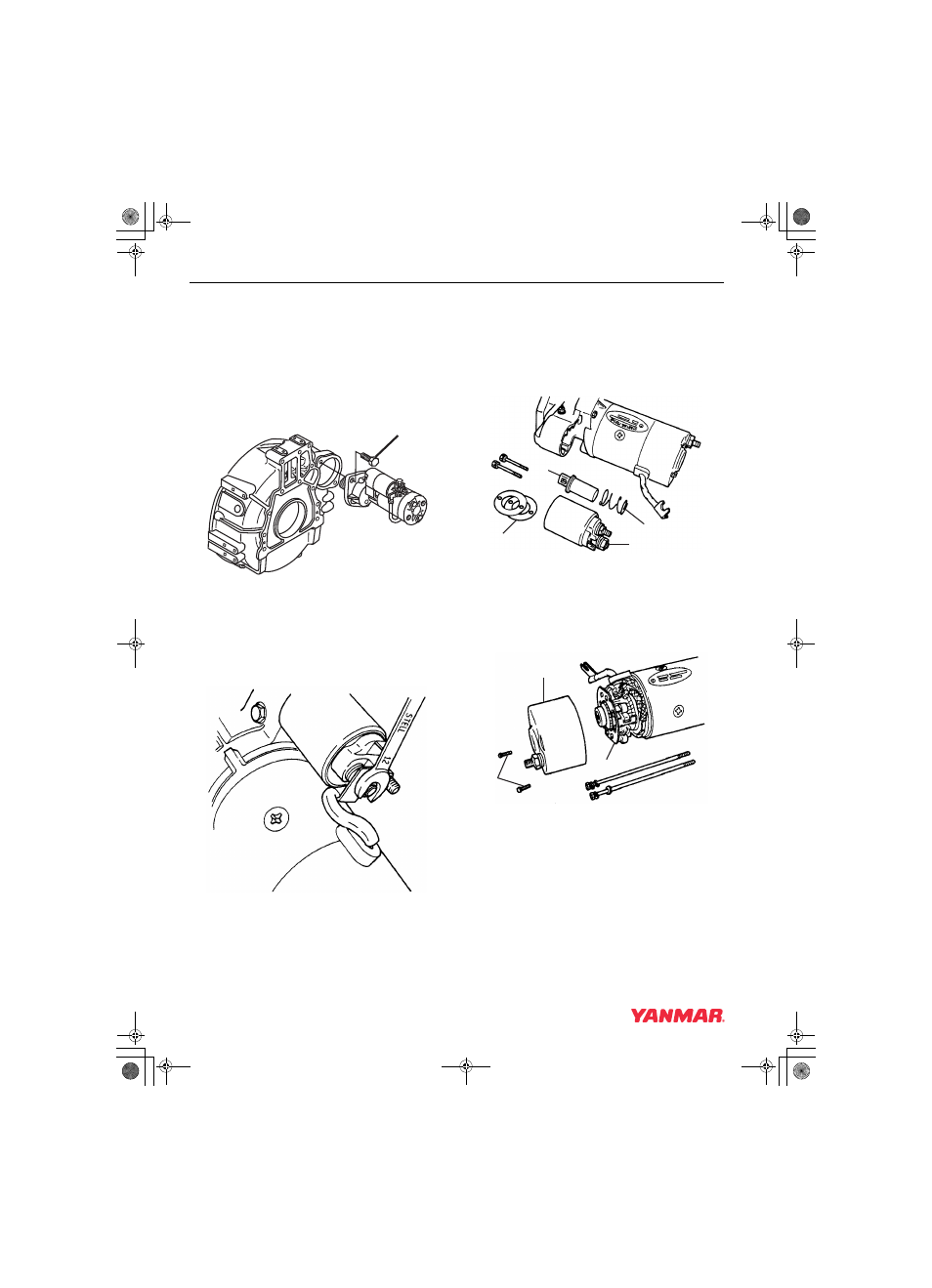

Figure 10-2
Disassembly of Starter Motor
1. Make alignment marks across all mating joints.
2. Disconnect the field wire from the solenoid
switch (Figure 10-3).
Figure 10-3
3. Remove the two bolts or nuts retaining the
solenoid switch assembly (Figure 10-4, (1)) to
the pinion housing. Remove the solenoid switch
assembly and dust covers (Figure 10-4, (2)).
Remove the plunger (Figure 10-4, (4)) and
torsion spring (Figure 10-4, (3)) from the pinion
housing.
Figure 10-4
4. Remove the two bolts (Figure 10-5, (1))
securing the rear cover (Figure 10-5, (2)) to the
brush holder assembly (Figure 10-5, (3)).
Figure 10-5
5. Remove the two through bolts. Remove the rear
cover (Figure 10-5, (2)).
(1)
0002126
0000138
(4)
(2)
(3)
(1)
0000140A
(1)
(2)
(3)
0000142A
