ALTERNATOR
TNV IDI Service Manual 11-13
Alternator

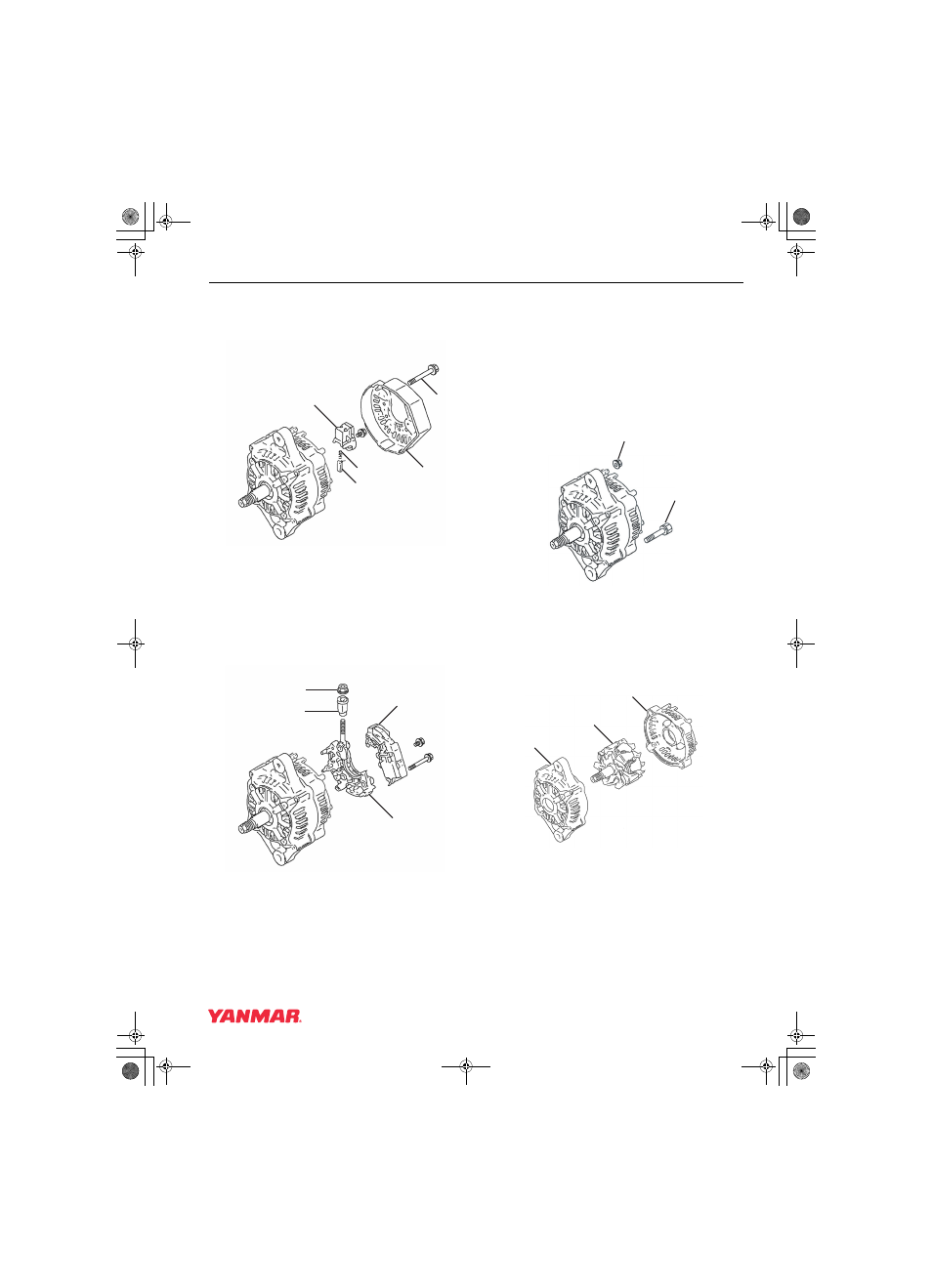

2. Remove the three bolts (Figure 11-6, (1))
retaining the rear cover (Figure 11-6, (2)) to the
rear frame assembly.
Figure 11-6
3. Remove the brush holder (Figure 11-6, (3)).
Remove the brush springs (Figure 11-6, (4))
and brushes (Figure 11-6, (5)).
4. Remove the bolt retaining the regulator
assembly (Figure 11-7, (1)) to the holder
(Figure 11-7, (2)).
Figure 11-7
5. Remove the bolts retaining the holder
(Figure 11-7, (2)) to the rear frame housing.
Remove the holder.
6. Remove the nut (Figure 11-7, (3)) retaining the
insulation bushing (Figure 11-7, (4)). Remove
the insulation bushing.
7. Remove the two bolts (Figure 11-8, (1)) and
two nuts (Figure 11-8, (2)) securing the rear
frame housing to the front frame housing.
Figure 11-8
8. Using a press, remove the rotor assembly
(Figure 11-9, (1)) from the front frame housing
(Figure 11-9, (2)) and rear frame housing
(Figure 11-10, (1)).
Figure 11-9
3
4
5
1
2
0000257A
3
4
1
2
0000258A
0000265A
1
2
100266A
2
1
3
