ENGINE
TNV IDI Service Manual 6-17

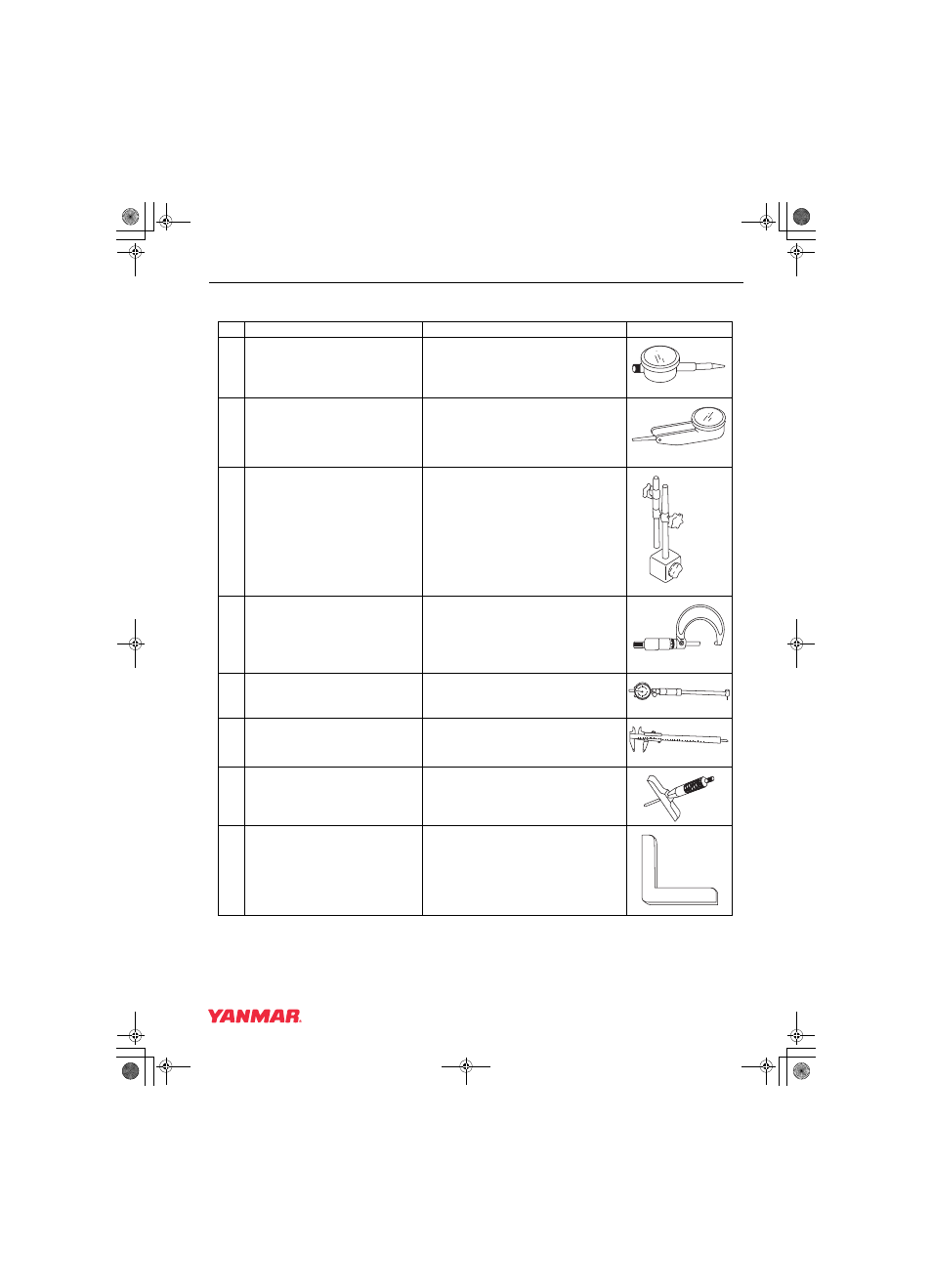

Measuring Instruments
MEASURING INSTRUMENTS
No. Instrument Name Application Illustration
1 Dial Indicator (Available Locally) Measure shaft bend and end play
2 Test Indicator (Available Locally)
Measurements of narrow or deep portions that
cannot be measured by dial gauge
3 Magnetic Stand (Available Locally) For holding the dial gauge when measuring.
4 Micrometer (Available Locally)
For measuring the outside diameters of
crankshaft, pistons, piston pins, etc.
5 Cylinder Bore Gauge (Available Locally)
For measuring the inside diameters of cylinder
liners, bearing bores, etc.
6 Calipers (Available Locally)
For measuring outside diameters, depth,
thickness and width
7 Depth Micrometer (Available Locally) For measuring of valve recession
8 Square (Available Locally)
For measuring valve spring inclination and
straightness of parts
0000831
0000832
0000833
0000834
0000835
0000836
0000837
0000838
