ENGINE
TNV IDI Service Manual 6-33
Cylinder Head
Reassembly of Intake Manifold / Valve
Cover
1. Reinstall the glow plugs (Figure 6-33, (1)) and
tighten to specification. Reinstall the electrical
harness (Figure 6-33, (2)).

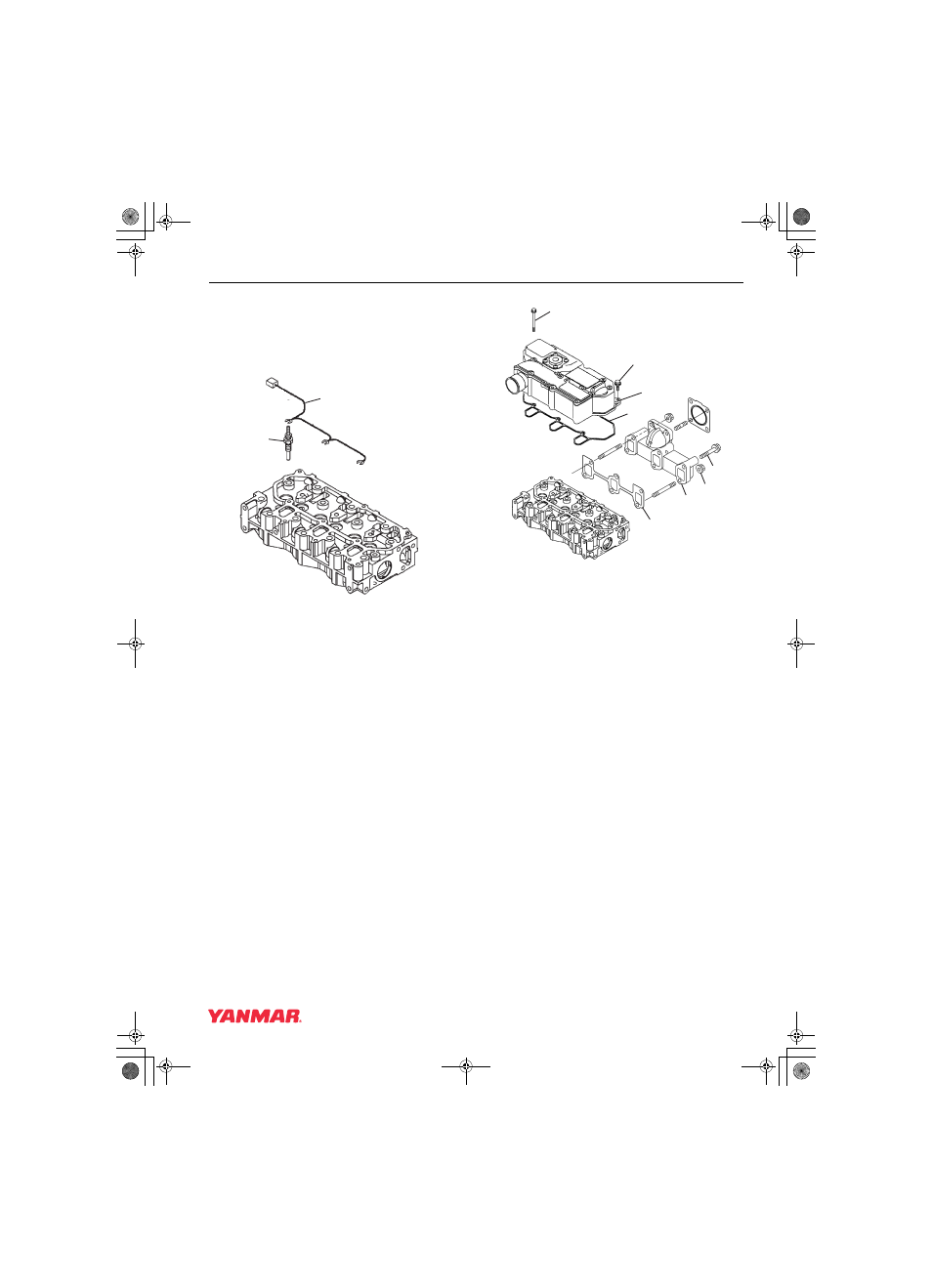

Figure 6-33
2. Lightly grease a new valve cover gasket
(Figure 6-34, (4)). Place the gasket in the
groove of the intake manifold / valve cover
(Figure 6-34, (3)).
3. Place the valve cover on the cylinder head.
4. Reinstall and tighten bolts
(Figure 6-34, (1 and 2)) securely.
Figure 6-34
5. Reinstall the exhaust manifold using a new
gasket. Tighten the bolts and nuts
(Figure 6-34, (5 and 6)) securely.
6. Reinstall the fuel injectors. See Installation of
the Fuel Injectors on page 7-29.
7. Reinstall the high pressure and return fuel
injection lines. See Installation of the Fuel
Injectors on page 7-29.
8. Reinstall the coolant pump. See Reassembly of
Engine Coolant Pump on page 8-9.
9. Reinstall the alternator. See Installation of
Alternator on page 11-16.
