9145E NID Software User’s Manual
Software Upgrade
Software Upgrades Using FTP or SFTP
76
8.5 Software Upgrades Using FTP or SFTP
8.5.1 Software Download using FTP
Software upgrades can also be downloaded from the Canoga Perkins web site and installed using the
computer that is the 9145E management host.
1.
Go to the Canoga Perkins web site or contact Canoga Perkins Customer Service to obtain the lat-
est version of the 9145E software and copy the file to the 9145E management host.

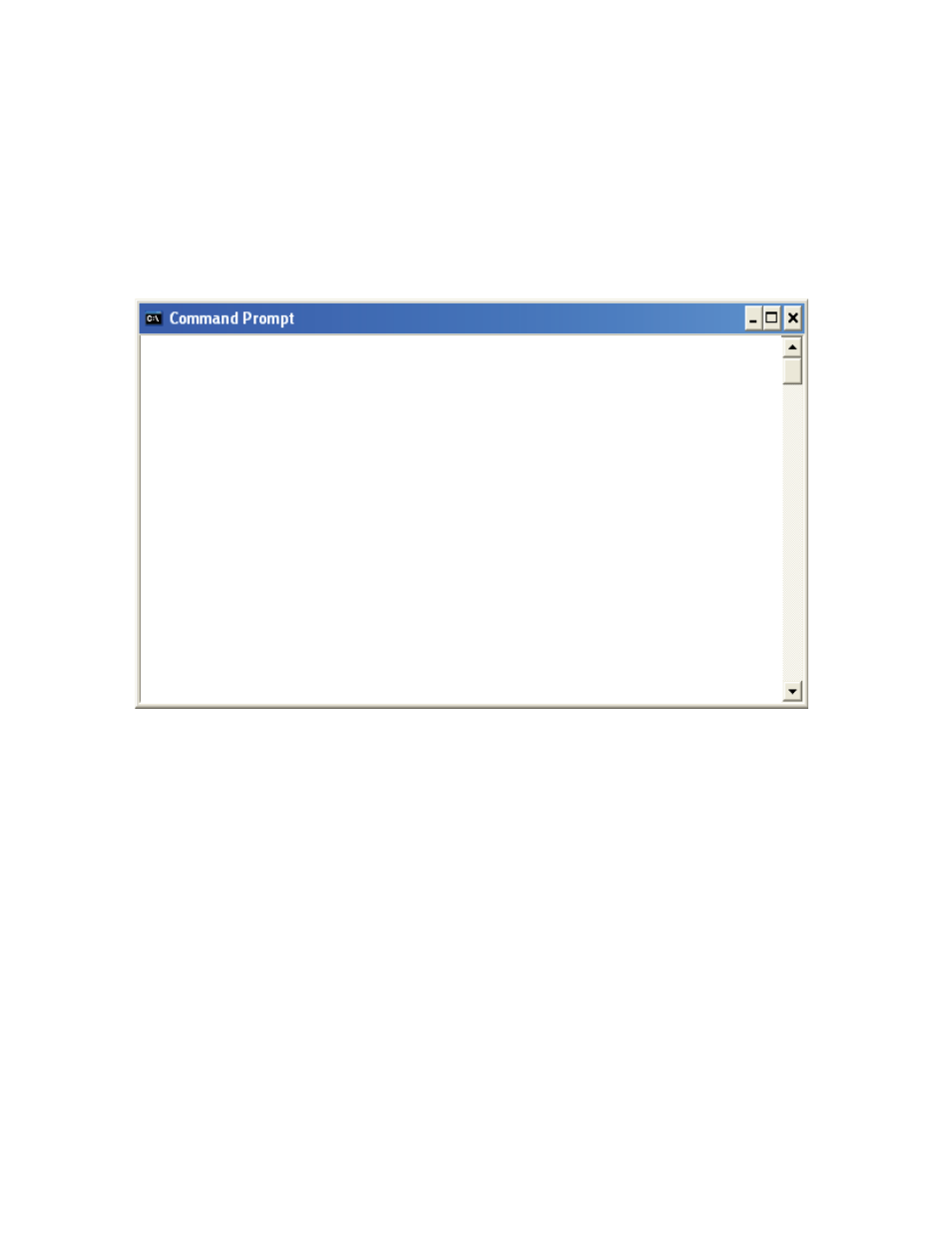

Figure 8-3 Command Prompt Screen
2.
Open a Command Prompt by selecting
Start>Run
3.
Type
CMD into the OPEN window and click OK. The Command Prompt screen will open (Figure
8-3).
NOTE: Confirm that the IP address of your computer is listed in the 9145E host
table. If not, you can not access the 9145E. To add the computer IP address
in the host table, refer to “Host Table” on page 13.
4.
If required, type
cd directory name
Where
directory name is the name of the directory where the software upgrade is located.
5.
Press
Enter. The prompt will be relocated to that directory.
6.
At the directory prompt, type
ftp IP address
Where
IP address is the management IP address for the 9145E.
7.
Press
Enter. Service will be established.
8.
Type in your 9145E account username and password. Press
Enter.
9.
Type in your password and press
Enter. The ftp> prompt opens.
Microsoft Windows XP [Version 5.1.2600]
(C) Copyright 1985-2001 Microsoft Corp.
C:\>cd Documents and Settings
C:\Documents and Settings>ftp 172.16.142.223
Connected to 172.16.142.223.
220 Service ready for new user.
User (172.16.142.223:(none)): admin
331 Username okay, need password.
Password:
230 User logged in, proceed.
ftp> cd BURNING
250 Requested file action okay, completed.
ftp> BI
200 Command Okay.
ftp> put 9145e-a10-02-00.zip
200 Command Okay.
150 File status okay; about to open data connection.
226-Closing data connection.
Writing file to flash.
226
ftp: 3415561 bytes sent in 126.42Seconds 27.02Kbytes/sec.
ftp>
