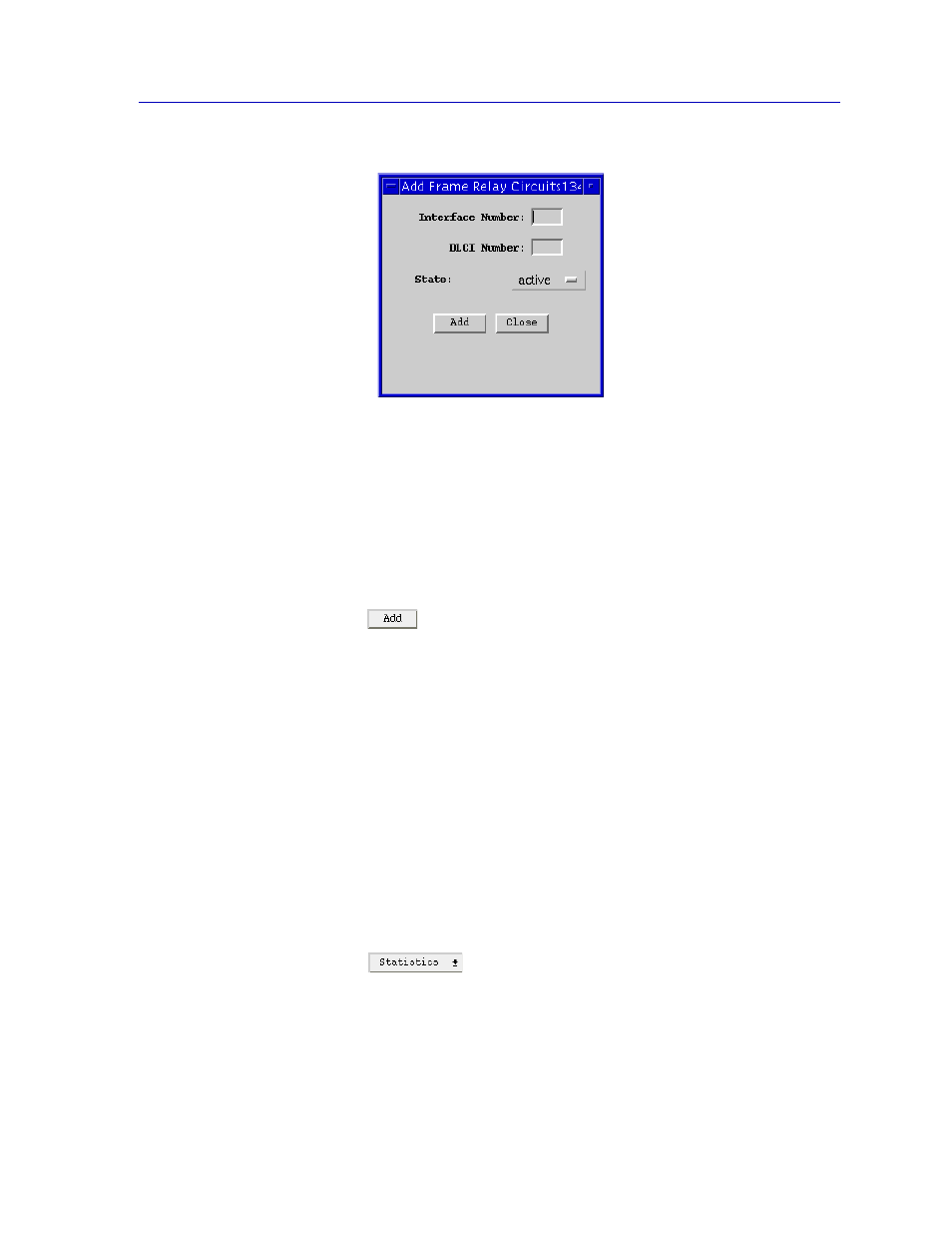

Figure 4-10. The Add Frame Relay Circuits Window
2. Enter the Interface Number of the circuit. This is the number of the interface
the circuit will reside on. Only interface numbers which have been assigned
Frame Relay protocol will be accepted.
3. Enter the DLCI Number of the circuit.
4. Click on the State selection box to determine the operational state of the new
circuit: active (the default) or inactive.
5. Click on to add the circuit to the circuit table. Repeat these steps for
each circuit you want to add to the interface.
Checking Statistics
The Statistics windows contains various statistics for the PPP and Frame Relay
Protocols and the Synchronous port you are using on your CSX. All Þve statistics
windows Ñ described in the following sections Ñ are available from the CSX
WAN ConÞguration windowÕs Statistics pull-down menu.
PPP Link Control Protocol Errors
The PPP Link Control Protocol Errors window ( Figure 4-11 ) displays the error
counts for each interface conÞgured to use the PPP Protocol. To open this
window:
1. Click on . A pull-down menu will appear.
2. Drag down to Ppp Lcp Errors and release.
