Configuring the Frame Relay Protocol 4-19
CSX WAN Configuration

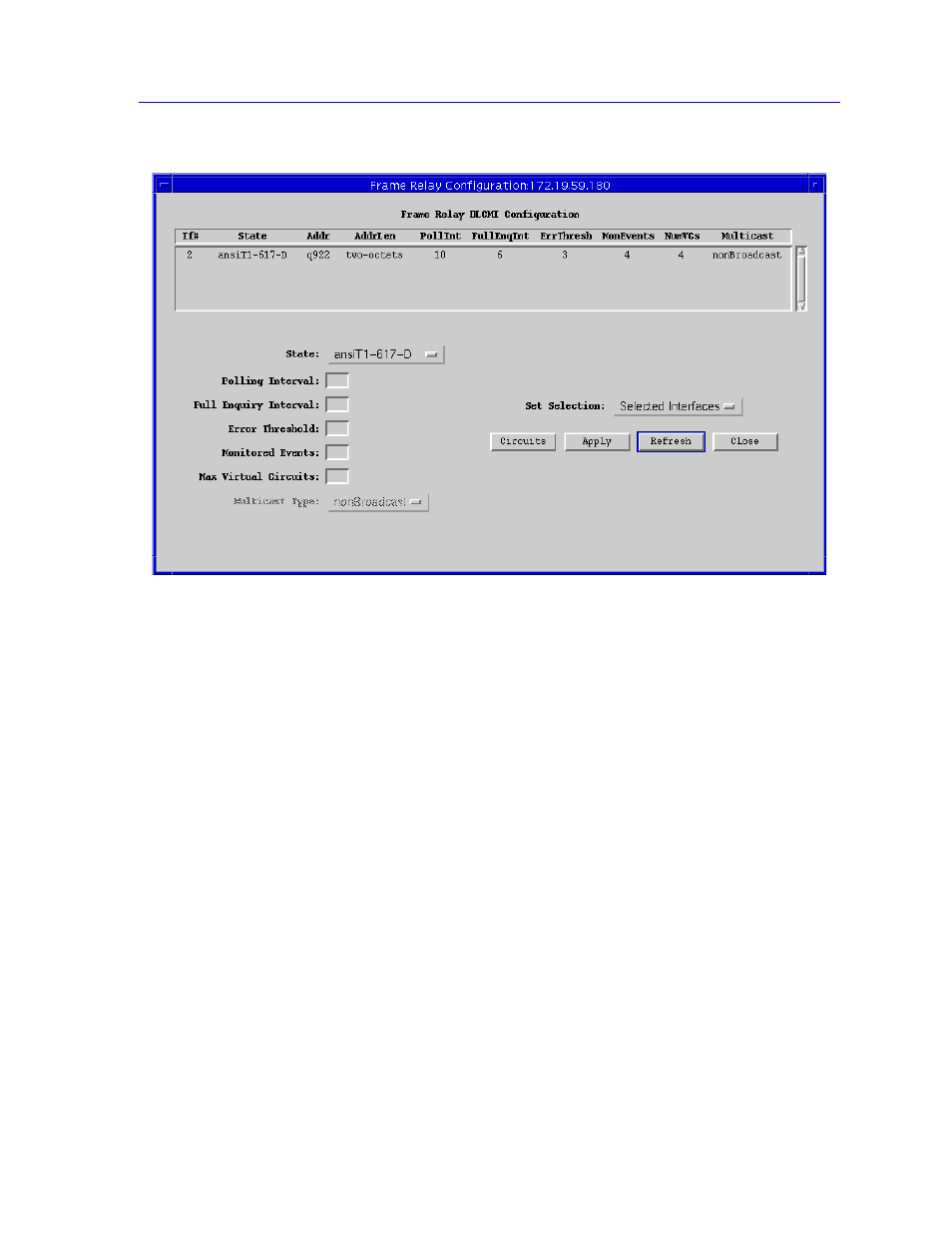

Figure 4-8. The Frame Relay ConÞguration Window
You can view the following information for each interface assigned the Frame
Relay Protocol. You can also change the State, Polling Interval, Full Enquiry
Interval, Error Threshold, Monitored Events, and Max Virtual Circuits settings.
If#
Displays the interface number. The total number of interfaces on the device
depends on the type of WPIM installed.
State
Displays the state of the local management interface that is running on the
interface. Default is ansiT1-617-D. If the network carrier is not running an LMI
(Local Management Interface) this can be changed to the other option,
noLmiConÞgured.
Addr
Displays which address format is being used on the Frame Relay interface. The
supported address format is q922.
Address Length (AddrLen)
Displays the address format in octets. The supported address length on a CSX is
two-octets.
