CSX WAN Configuration
4-4
Accessing the CSX WAN Configuration Window

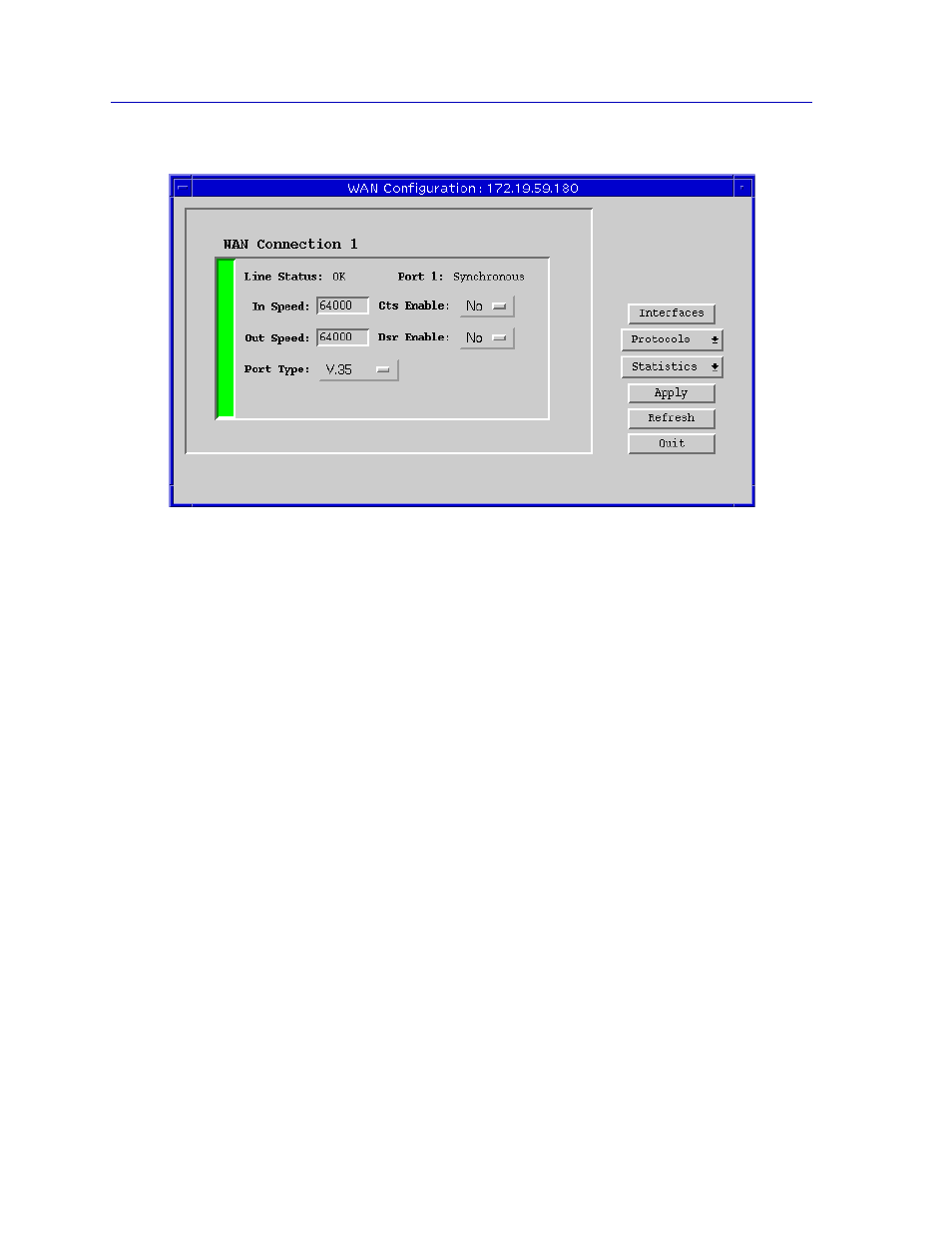

Figure 4-2. Typical CSX200 WAN ConÞguration Window
All CSX WAN ConÞguration windows contain the WAN Connection Þeld, which
displays the connection number of the monitored wide area network connection.
(Since the CSX200 has only one WAN connection, this will always display 1.)
In addition, all CSX200/400 WAN ConÞguration windows contain the following
buttons:
Interfaces
Used to open the
. This
window is used to conÞgure the individual interfaces provided by each WPIM.
Protocols
This button accesses conÞguration windows for the appropriate WAN protocol(s).
ConÞguring PPP and Frame Relay protocols is discussed later in this chapter.
Statistics
The Statistics button accesses a number of windows containing statistics for PPP
and Frame Relay protocols, and (where applicable) for Synchronous ports. See
on
for more information.
Apply
Puts into effect any changes you have made.
Refresh
Causes the application to re-request WAN conÞguration information from the
device and thus update the window.
