CSX Bridge View
3-4 Accessing the Bridge Traffic View Window

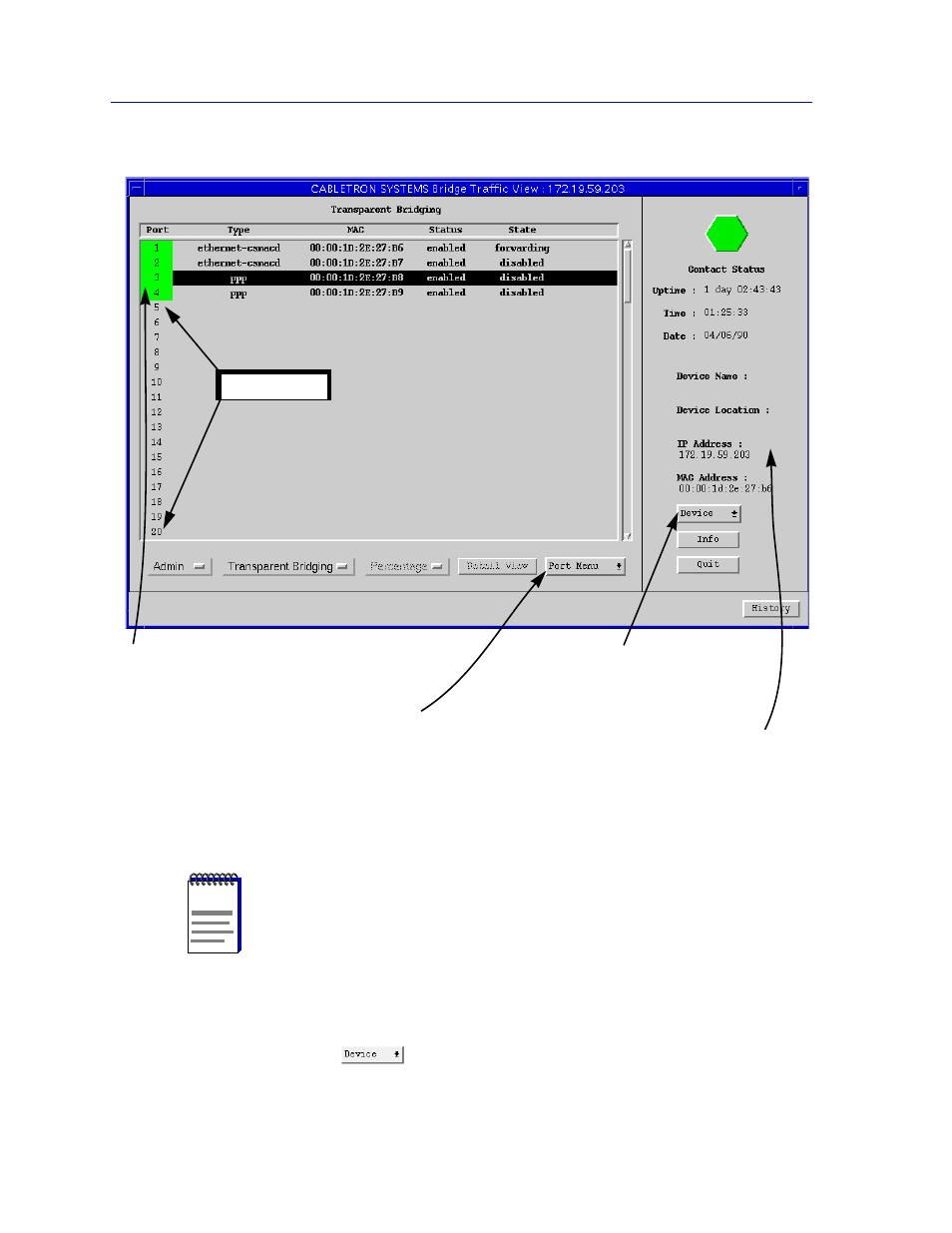

Figure 3-1. Mousing Around the CSX Bridge TrafÞc View
To display the Device menu:
1. Click on in the Bridge Traffic View front panel.
NOTE
Depending on the type of WAN connection(s) you have on your CSX200/400, the Bridge
TrafÞc View window may display a number of virtual bridge ports, for which only a
port index is visible. The Bridge TrafÞc View window displays all of the virtual bridge
ports available through your WAN interface(s). The virtual ports are not conÞgurable
from this window Ñ nor will there be any visible information beyond port index Ñ
unless they are in use.
Each list entry represents a bridge port. Click
button 1 on a Bridge Port list entry to select it.
Once a port is selected, click button 3 on the
Port Menu button to display the Port menu.
Click button 1 on a bridge port to select it for
display in the Detail View (at least two must be
selected to activate the Detail View button).
The Front Panel shows device-level
summary information.
Click on the Device button
to display the Device menu
Virtual Ports
