Cabletron Systems CSX400 - Manual (Page 62)

CSX Bridge View
3-42 Viewing the Forwarding Log

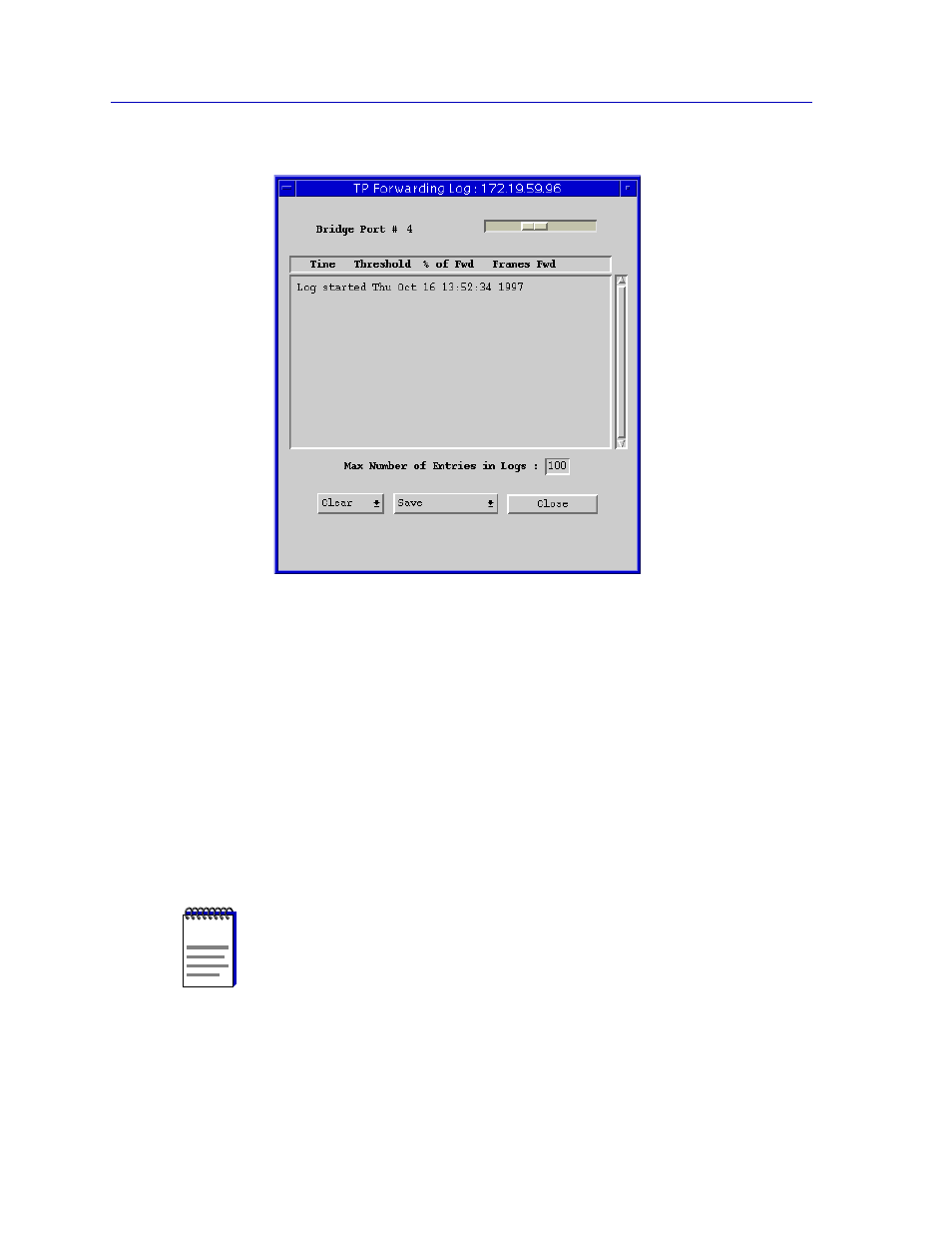

Figure 3-18. Sample Forwarding Log Window
To select a different Bridge Port log:
1. Use the slide bar at the top of the Forwarding Log window to select a different
port.
To clear all logs or just the current log:
1. Click on the Clear button and then select the appropriate choice, either
Current Log or All Logs.
To change the number of entries retained by the log:
1. Highlight the Max Number line, type a new number and press Return on the
keyboard.
NOTE
Log entries are stored in the SPMA software. When the maximum number of entries is
reached, the entries get aged out as necessary, starting with the oldest entry Þrst.
