The Bridge Port Forwarding Statistics Window 3-35
CSX Bridge View
To access the Pie Chart, Graph and Meters tools from the Bridge TrafÞc View Port
menus:
1. Click mouse button 1 on a Bridge Port entry to select it.
2. Click button 3 on the Port Menu button to display the Bridge Port menu.
3. Drag down to select Pie Chart or Graphs/Meters—>Transparent.

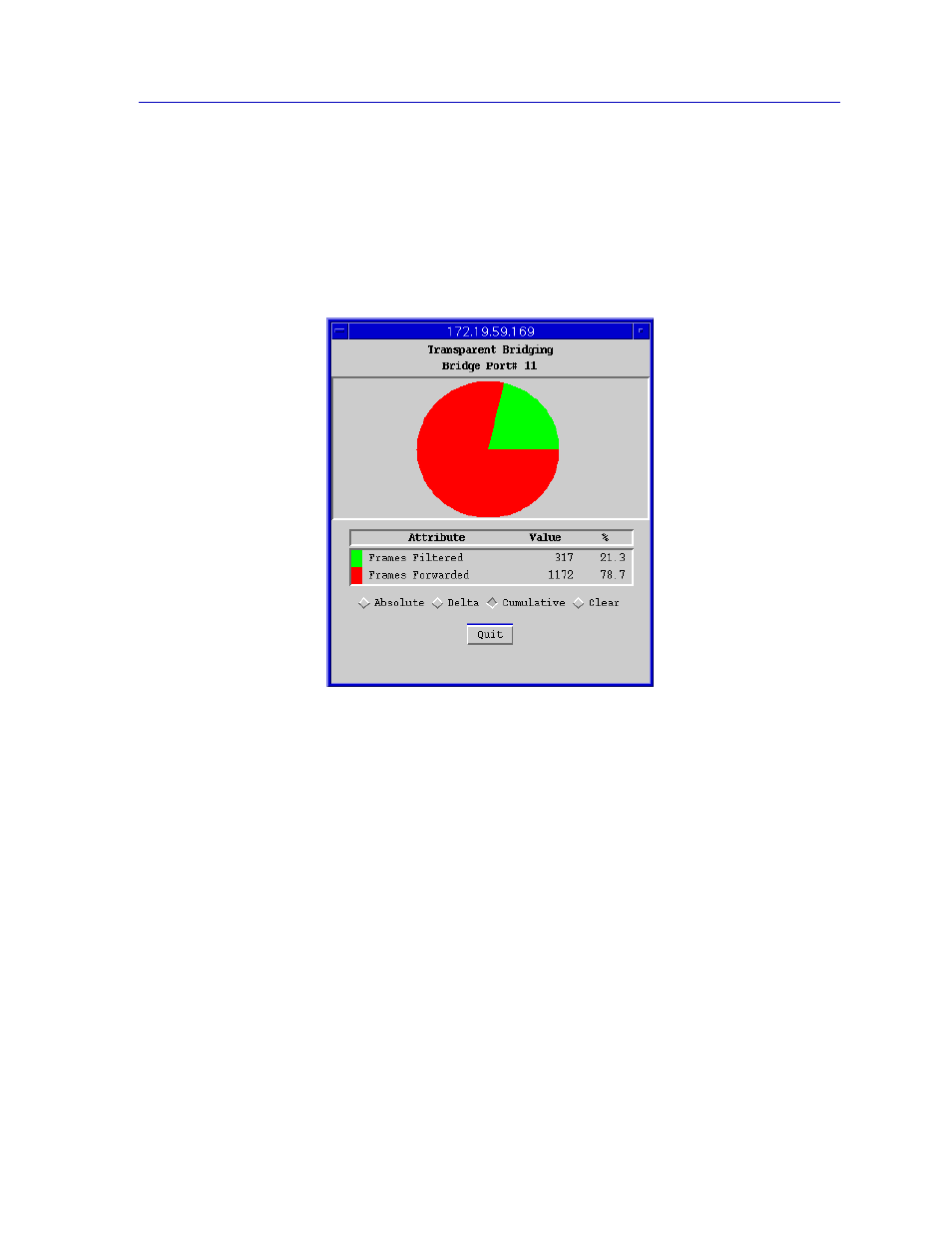

Figure 3-15. Pie Chart Window
For complete descriptions of chart, graph and meter variables and details on how
to create and control a pie chart, graph or meter, see the chapter on charts, graphs
and meters in the SPMA Tools Guide.
The Bridge Port Forwarding Statistics Window
The procedures for viewing Transparent and Source Routing statistics are nearly
identical, although graphically the windows for the two are slightly different.
Both show you a breakdown of activity between the selected port and each of the
other bridge ports.
To view statistics for a particular bridge port:
1. In the Bridge Traffic View, click mouse button 3 on a bridge port to display the
Port menu.
