CSX Bridge View
3-10 Using the Detail View Window
1. In the Bridge Traffic View, select two, three, or four ports by clicking mouse
button 1 on the desired ports; the selected Port entries will be highlighted. The
Detail View button becomes active once you select at least two bridge ports.
2. Click on the Detail View button. The Detail View window appears, with the
selected ports displayed as boxes.

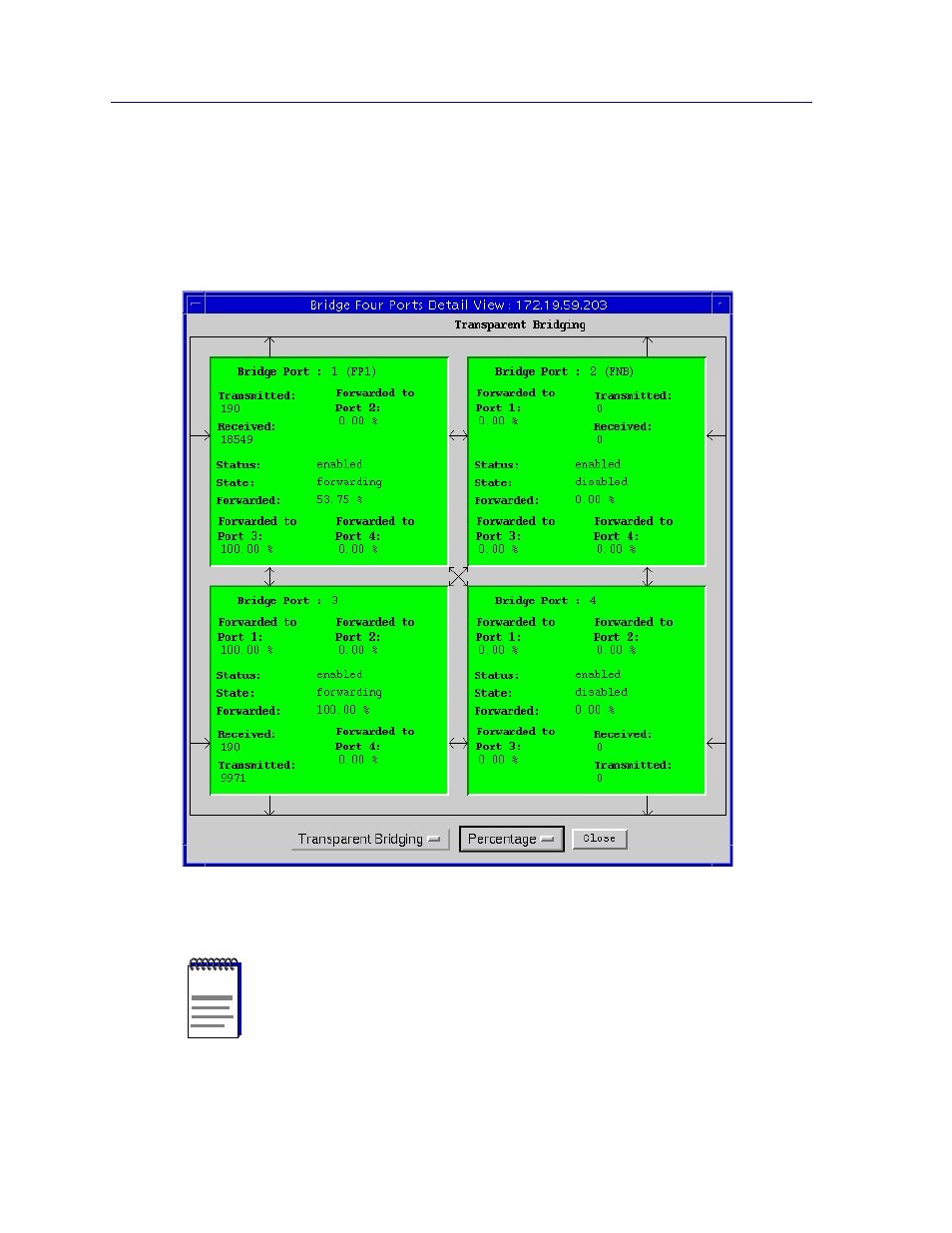

Figure 3-3. Detail View Showing Four Ports
NOTE
Due to Þrmware limitations, you may see a bridge port incorrectly identiÞed as Ò(FNB).Ó
This can occur here in the Detail View window or in the Bridge Statistics window (see
page 3-13 ). In either case the port number is correct, but Ò(FNB)Ó should be disregarded.
