Checking Statistics 4-27
CSX WAN Configuration
Frame Relay DLCMI Last Error
The Frame Relay DLCMI Last Error window contains a line for each interface
conÞgured to use the Frame Relay protocol. It displays the last error for each
interface. To open this window:
1. Click on . A pull-down menu will appear.
2. Drag down to Frame Relay Dlcmi Errors and release. Figure 4-12 will
appear.

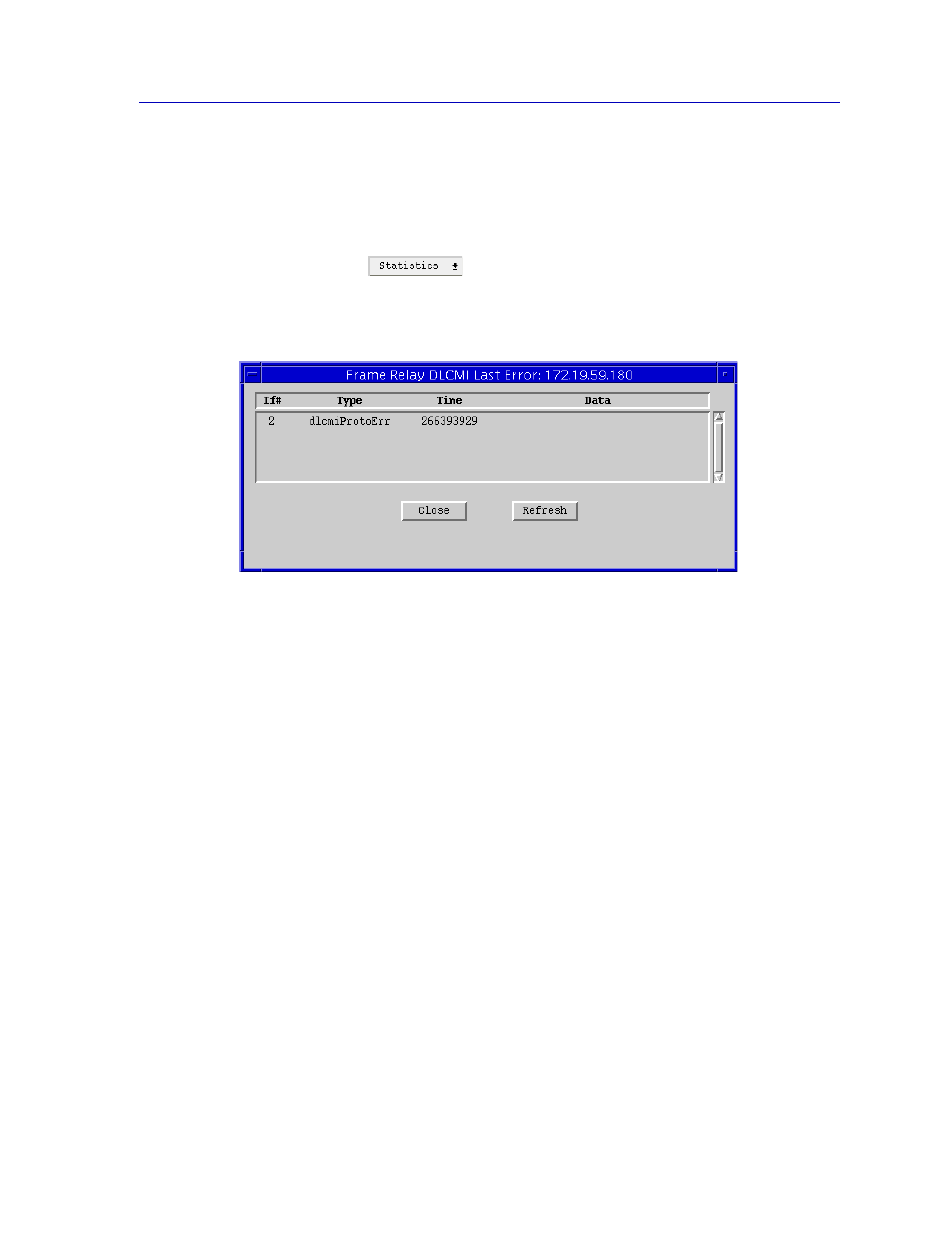

Figure 4-12. The Frame Relay DLCMI Last Error Window
Following are descriptions of each of the errors which are recorded in this
window.
If#
The interface number to which the collected statistics in the row are related.
Type
Displays the type of the last error seen on this interface. The possible error
types are:
¥ unknownError
¥ receiveShort
¥ receiveLong
¥ illegalDLCI
¥ unknownDLCI
¥ dlcmiProtoErr
¥ dlcmiUnknownIE
¥ dlcmiSequenceErr
¥ dlcmiUnknownReport
¥ noErrorSinceReset
Time
The sysUpTime at the time that the error was detected in hundredths of a second.
