TIGW1U server—Server Installations and Upgrades
Kontron Carrier Grade Server TIGW1U
Product Guide, rev. 1.3
December 2009
66
7. Dispose of the battery according to local ordinance.
8. Being careful to observe the correct polarity, insert the new battery into the socket.
9. Re-install the processor air duct and the chassis cover.
10. Run Setup to restore the configuration settings to the RTC.

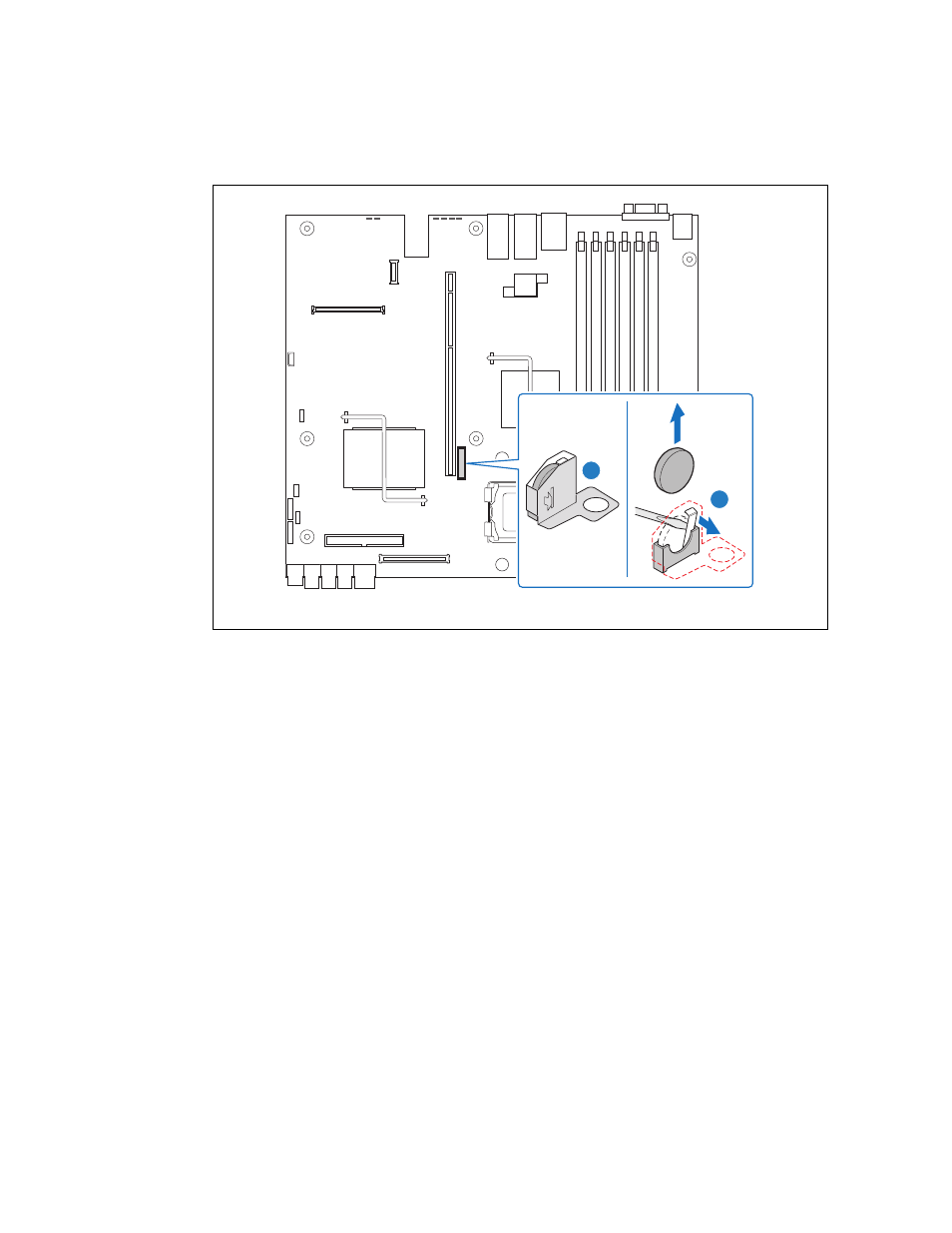

Figure 54.
Replacing the Battery
TS000416
A
B
