Regardless of the processor model you install, you must use BIOS version R0085 or
later with any server that has one of the above product codes:
Caution: If your server has one of the above product codes, then configuring it with a BIOS
version lower than R0085 will cause system instabilities and your system may not boot.
3.4.2 Configuring Memory DIMMs
The S5000PHB server board server board supports up to six DDR2-533 or DDR2-667
Fully Buffered DIMMs (FBD memory) in six DIMM slots across two channels, Channel 0
and Channel 1.
Channel 0 consists of DIMM sockets A1, A2, and A3. Channel 1 consists of DIMM
sockets B1, B2, and B3. See Figure 18 .
CPU CPU
J3E2
1 2 3
1 2 3
for Dual-Core Intel ®
Xeon ® Processor
5100 Series:
for Quad-Core Intel ®
Xeon ® Processor
5400 Series:
NO jumper
installed.
Install jumper
over pins 1-2.
CAUTION: Jumper J3E2 must be
configured to match your installed
processor or your system will not boot
properly.
Server
Board

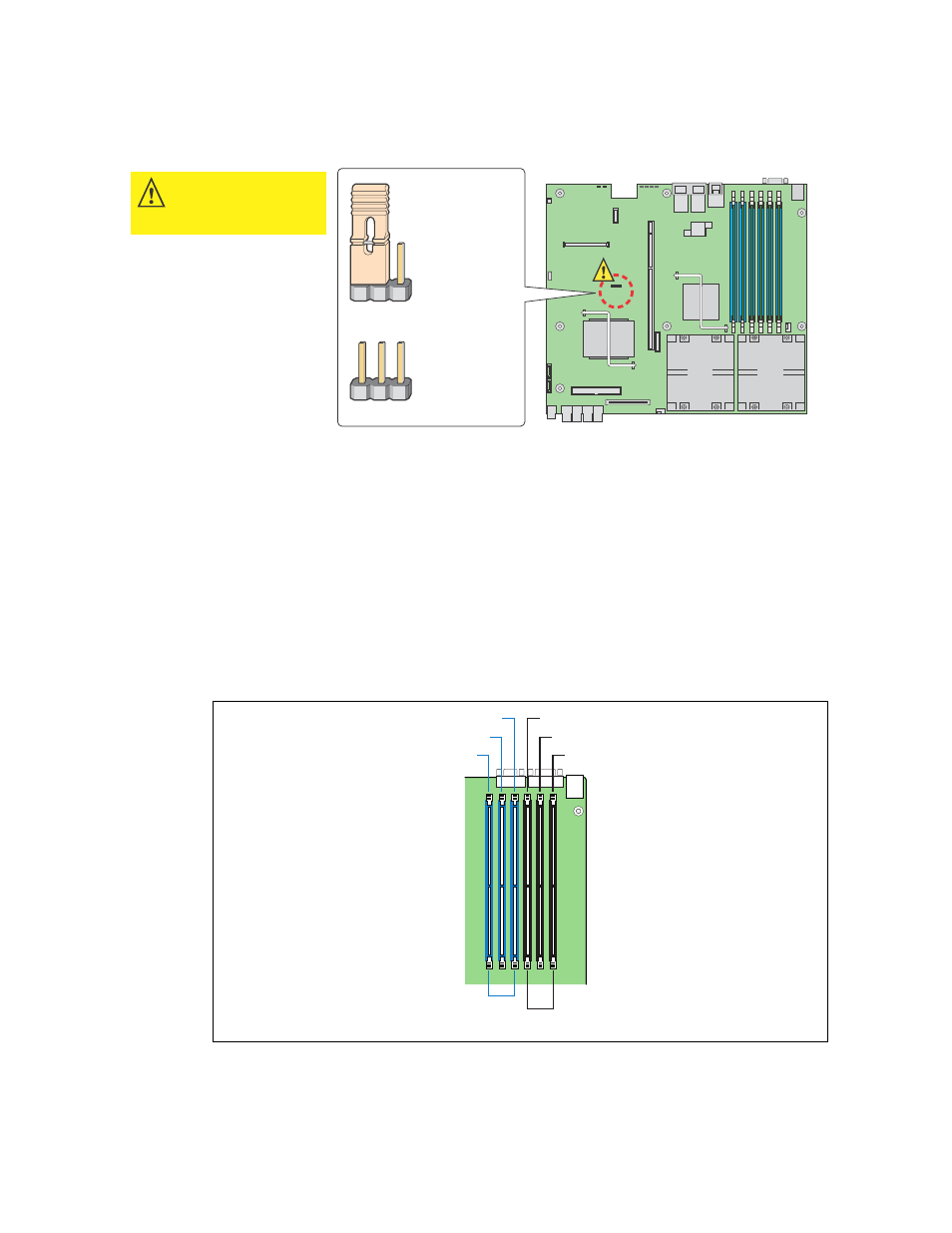

Figure 18. DIMM Slots and Channels
Channel 1
Channel 0
DIMM Soc
kets
DIMM A1
DIMM A2
DIMM B3
DIMM B2
DIMM A3 DIMM B1
AF000879
