TIGW1U server—Features
Kontron Carrier Grade Server TIGW1U
Product Guide, rev. 1.3 December 2009
16
2.2 Back Panel
Note: Figure 3 shows the AC input power configuration. Items G to J can also be configured
for DC operation.
2.3 Front Panel

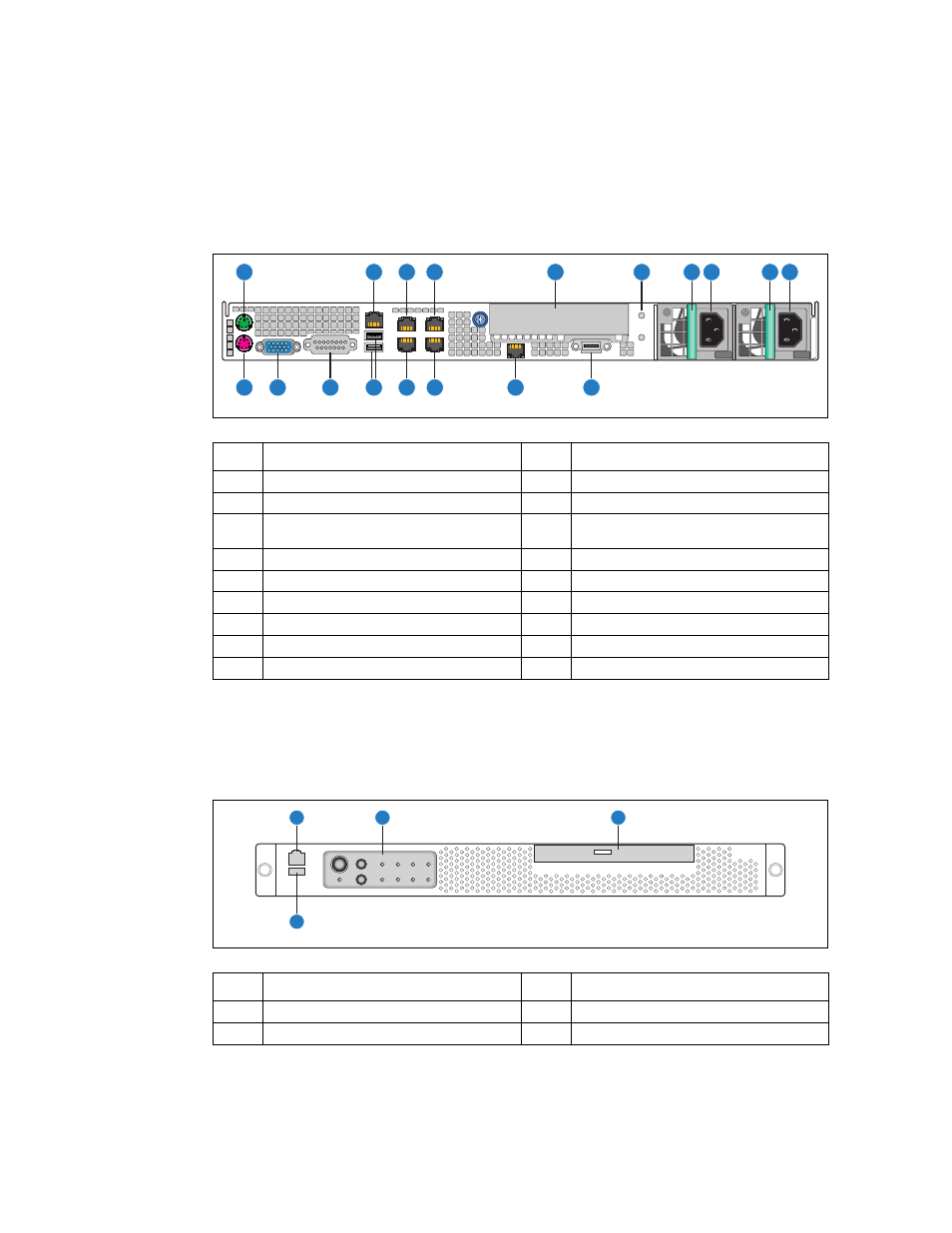

Figure 3. Rear View
Item Description Item Description
A PS/2 mouse J AC power socket
B RJ45 serial port (COM2/Serial B) K External x4 SAS connector
C RJ45 NIC connector L
Intel ® Remote Management Module 2
(Intel ® RMM2) connector (optional)
D RJ45 NIC connector M RJ45 NIC connector
E PCI add-in card bracket or filler panel N RJ45 NIC connector
F Ground studs for DC input (2) O USB port 0 and USB port 1
G Power supply #1 P Telco alarms connector
H AC power connection Q Video connector
I Power supply #2 R Keyboard connector
AF000813
A
R Q P N M L K O
B C D E F G H I J
Figure 4. Front View (Bezel Installed)
Item Description Item Description
A RJ45 serial port (COM2/Serial B) C Optical drive
B Control panels D USB port 2
AF000806
A
D
B C
