TIGW1U server—Server Installations and Upgrades
Kontron Carrier Grade Server TIGW1U
Product Guide, rev. 1.3 December 2009
40
Caution: The underside of the processor has components that may damage the socket pins if
installed improperly. The processor must align correctly with the socket. Set the
processor carefully into the socket!
2. Orient the processor with the socket so that the processor cutouts match the
socket notches. (“A” in Figure 25 )
3. Insert the processor into the socket. (“B”)
4. Remove the socket protective cover by grasping the cover tab and pulling away
from the load plate. Store the protective cover for future use. (“A” and “B” in
Figure 26 )

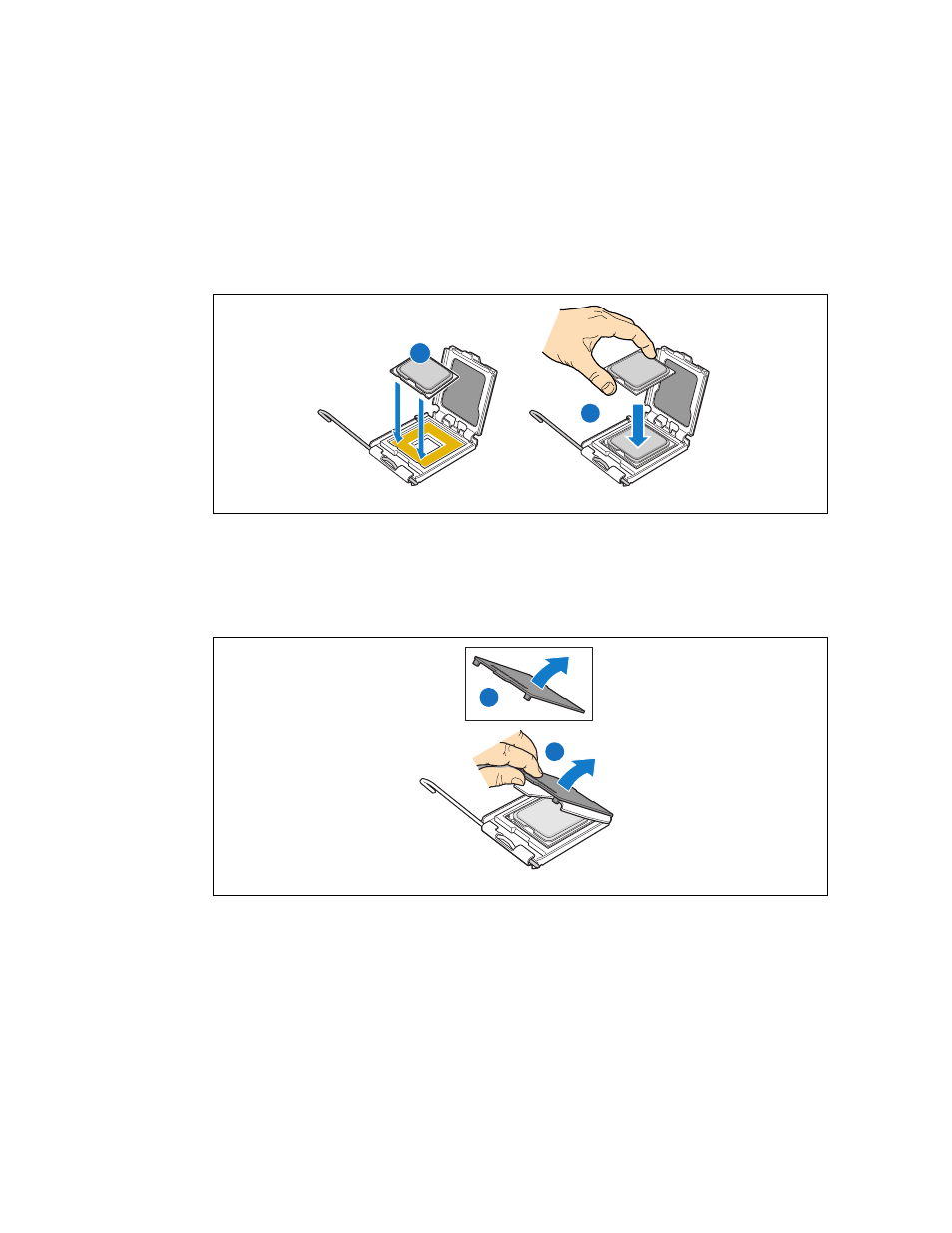

Figure 26. Removing the Socket Protective Cover
Figure 25. Installing the Processor in the Processor Socket
[
A
B
AF000771
B
A
AF000772
