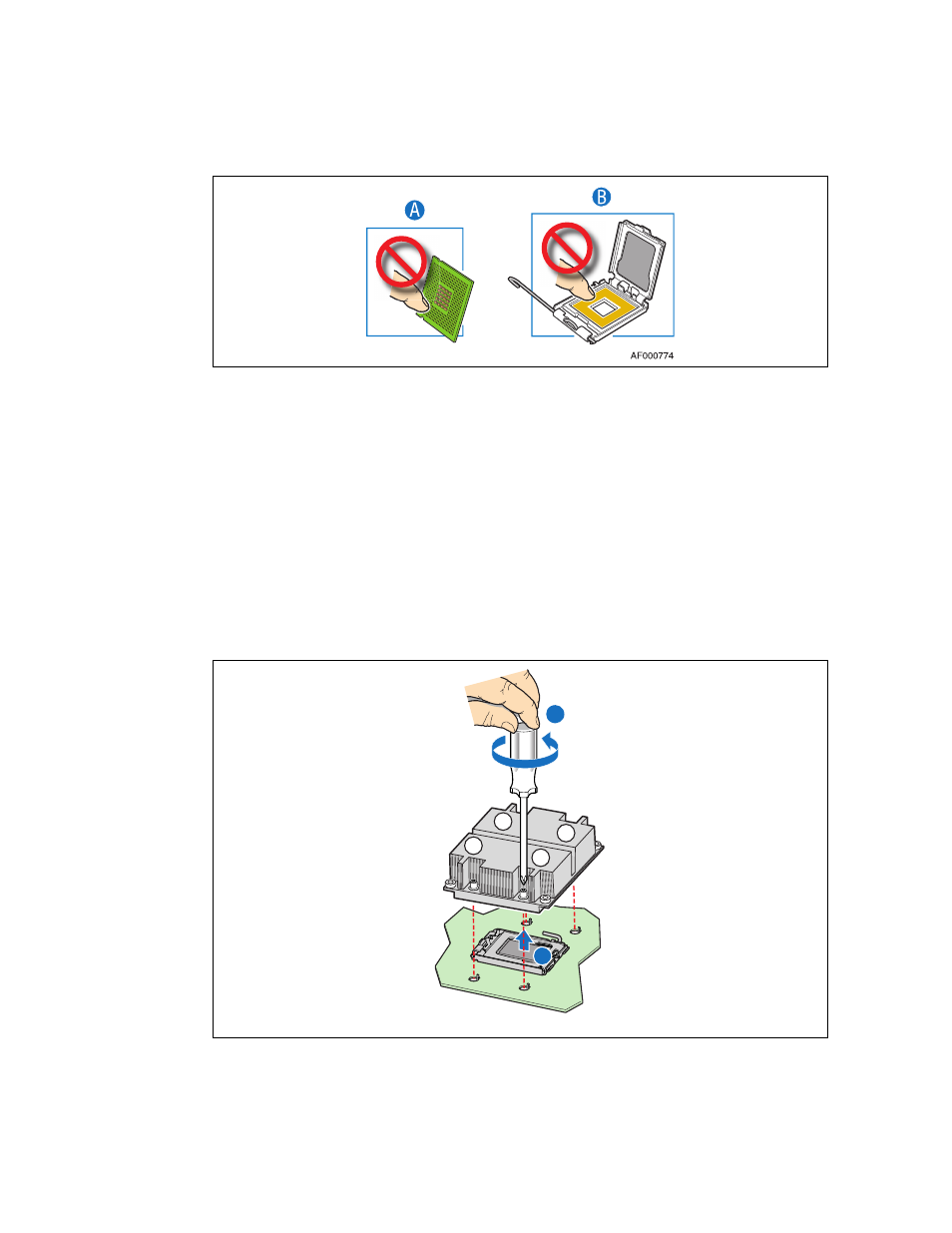

Figure 20. Cautions for Handling Processors
Follow the instructions below to remove and then install a processor, referring to
Figure 21 through Figure 27 .
3.4.4.2 Removing a Processor
1. Remove the processor air duct that covers the processor. For instructions, Section
3.2.5, “Removing the Processor Air Duct” on page 26 .
2. Loosen the four captive screws on the corners of the heat sink (“A” in Figure 21 ).
3. Twist the heat sink slightly to break the seal between the heat sink and the
processor. (“B”)
4. Lift the heat sink from the processor. If it does not pull up easily, twist the heat sink
again.
Note: Do not force the heat sink from the processor. Doing so could damage the processor.
5. Open the socket by pushing the lever handle down and away from the socket to
release it. (“A” and “B” in Figure 22 )
Figure 21. Removing the Heat Sink
A
B
2
3
1
4
AF000766
