3.2.4 Installing the Front Bezel
While holding the front bezel in place, tighten the captive screws at the left and right
edges of the bezel.
3.2.5 Removing the Processor Air Duct
The air duct must be removed to access the processors, memory DIMMs, and the four-
fan assembly. The processor air duct is required for proper airflow within the chassis.
Be sure the air duct is in place before installing the chassis cover. To remove the
processor air duct:
1. Power down the server system and unplug all peripheral devices and the AC power
cable.
2. Remove the chassis cover. For instructions, see Section 3.2.1, “Removing the
Chassis Cover” on page 24 .
3. Lift the air duct straight up and lift it from the chassis (“A” in Figure 12 ).

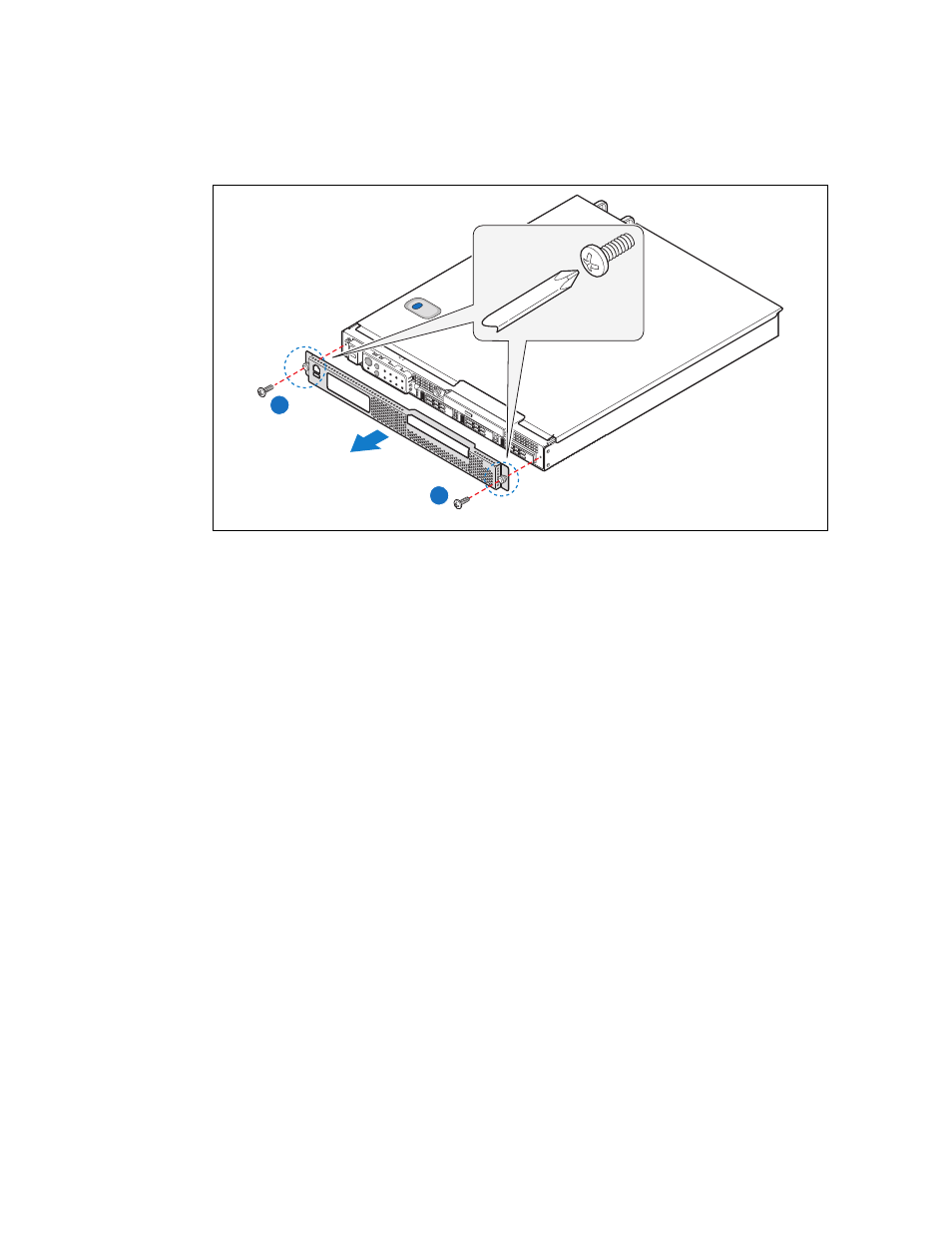

Figure 11. Removing the Front Bezel
A
A
TS000202
