Kontron Carrier Grade Server TIGW1U
December 2009
Product Guide, rev. 1.3
63
Server Installations and Upgrades—TIGW1U server
5. Remove the heat sink(s) and processor(s). For instructions, see
“Removing a Processor” on page 38
6. Remove the four-fan assembly, including the bracket.
7. Disconnect all cables from the server board.
8. Remove the screws that attach the server board to the chassis. (“A” in
)
9. Tilt the server board and lift it from the chassis. (“B”) Use caution in pulling it out
from beneath the Serial B connector at the rear of the chassis.
3.5.6.2
Installing the Server Board Back into the Chassis
1. Set the replacement board into place (“B” in
), using caution to make sure
that no cables are pinched under the board. Insert the rear edge of the board first,
and line up the I/O ports at the rear of the system.
2. Make sure the standoff locations line up correctly and reinsert the seven screws
removed previously. (“A”)

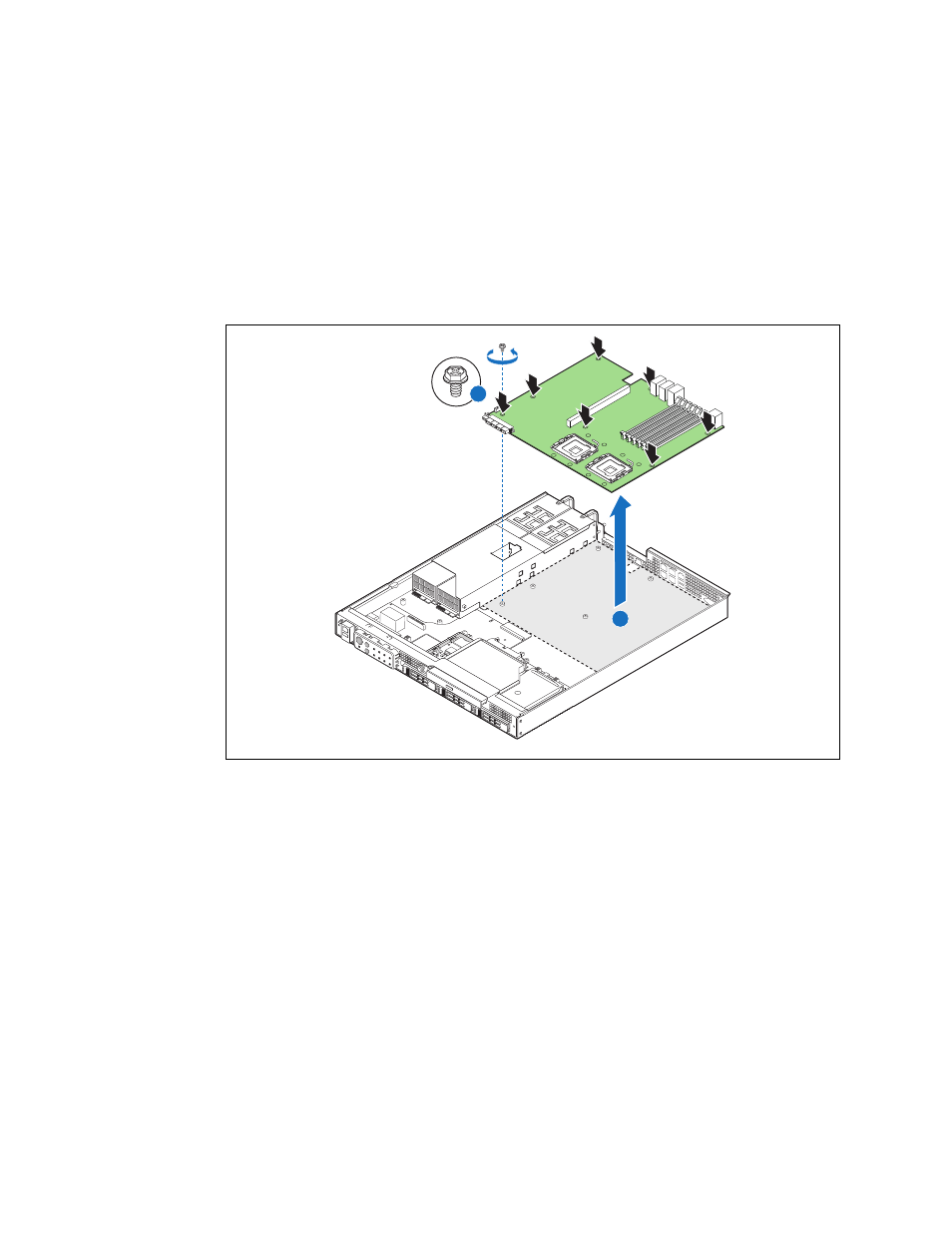

Figure 52.
Removing the Server Board
TS000209
A
B
