Server Installations and Upgrades—TIGW1U server
6. Align the two hooks on the underside of the Smart Battery with the matching tabs
on the chassis. (“A” in
7. Slide the Smart Battery toward the front panel to lock it in place. (“B”)
8. Connect the cable from the Smart Battery to the connector on the SFP board. (“C”)

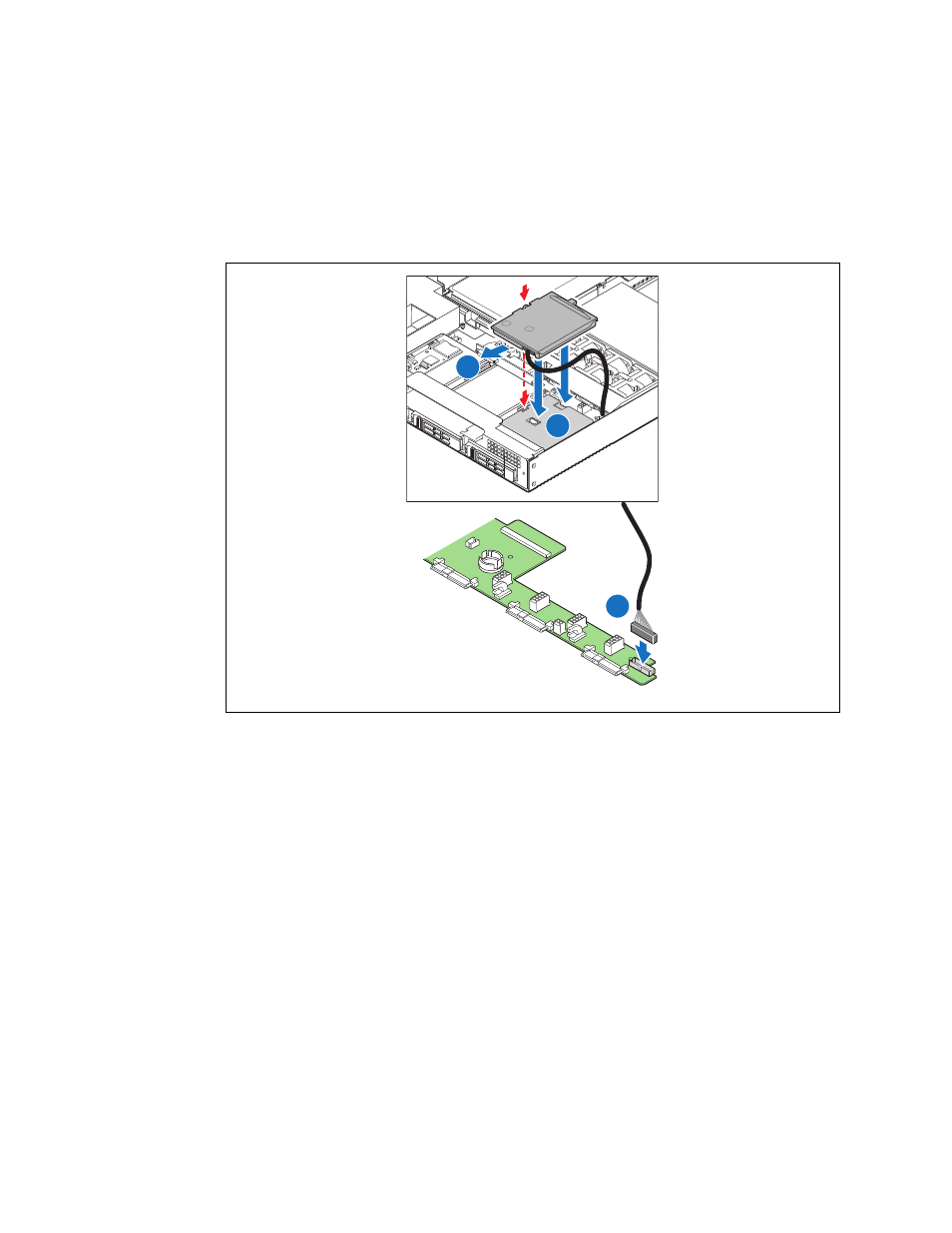

Figure 35.
Installing the Smart Battery
A
C
B
TS000294
