TIGW1U server—Server Installations and Upgrades
Kontron Carrier Grade Server TIGW1U
Product Guide, rev. 1.3
December 2009
52
3.5.1.2
Installing a New Optical Drive
1. Connect the interposer board to the back of the optical drive. (“A” in
)
2. Place the new optical drive into the drive tray. (“A” in
3. Insert the optical drive tray back into the chassis and tighten the blue thumbscrew.
(“A” and “B” in
).

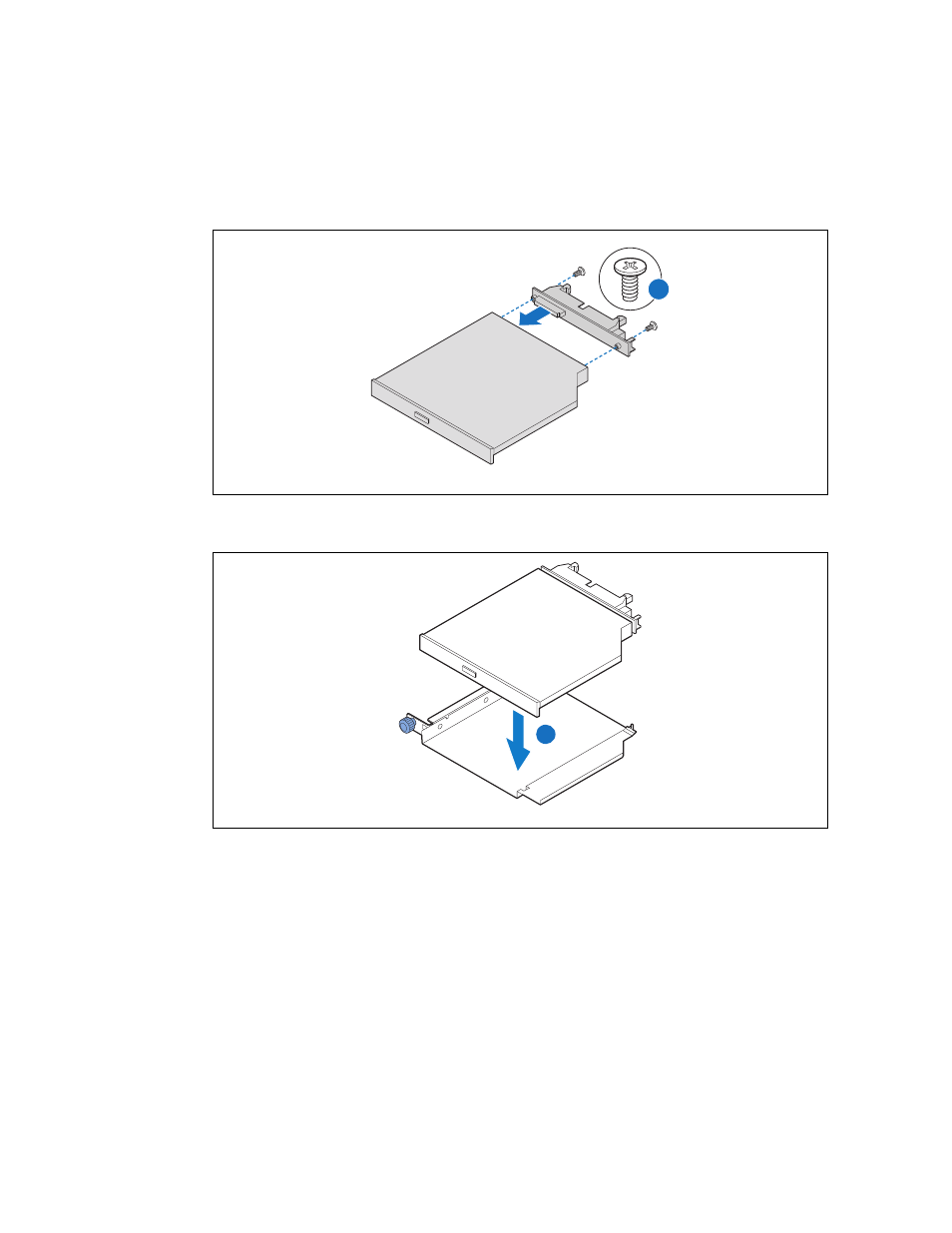

Figure 39.
Connecting the Optical Drive Interposer Board
A
TS000221
Figure 40.
Installing an Optical Drive in the Drive Tray
A
TS000222
