Kontron Carrier Grade Server TIGW1U
December 2009 Product Guide, rev. 1.3
55
Server Installations and Upgrades—TIGW1U server
7. Connect the fan cables to the correct fan connectors on the SFP board.
The fan connectors are labeled on the SFP board.
3.5.2.2 Replacing the PCI Fan
1. Disconnect the PCI fan power cable from the SAS front panel (SFP) board by
squeezing the latch on the fan cable connector. See Figure 9 for the location of this
connector.
2. Remove the fan from the fan bracket.
3. Insert one of the blue fan bumpers into each of the four mounting holes on the PCI
fan.
The locking shoulder will catch on the flange to fasten the bumper to the fan. (“B”
in Figure 43
4. Align the fan with the arrow on top facing the rear of the chassis.
5. Push the PCI fan into the fan bracket.

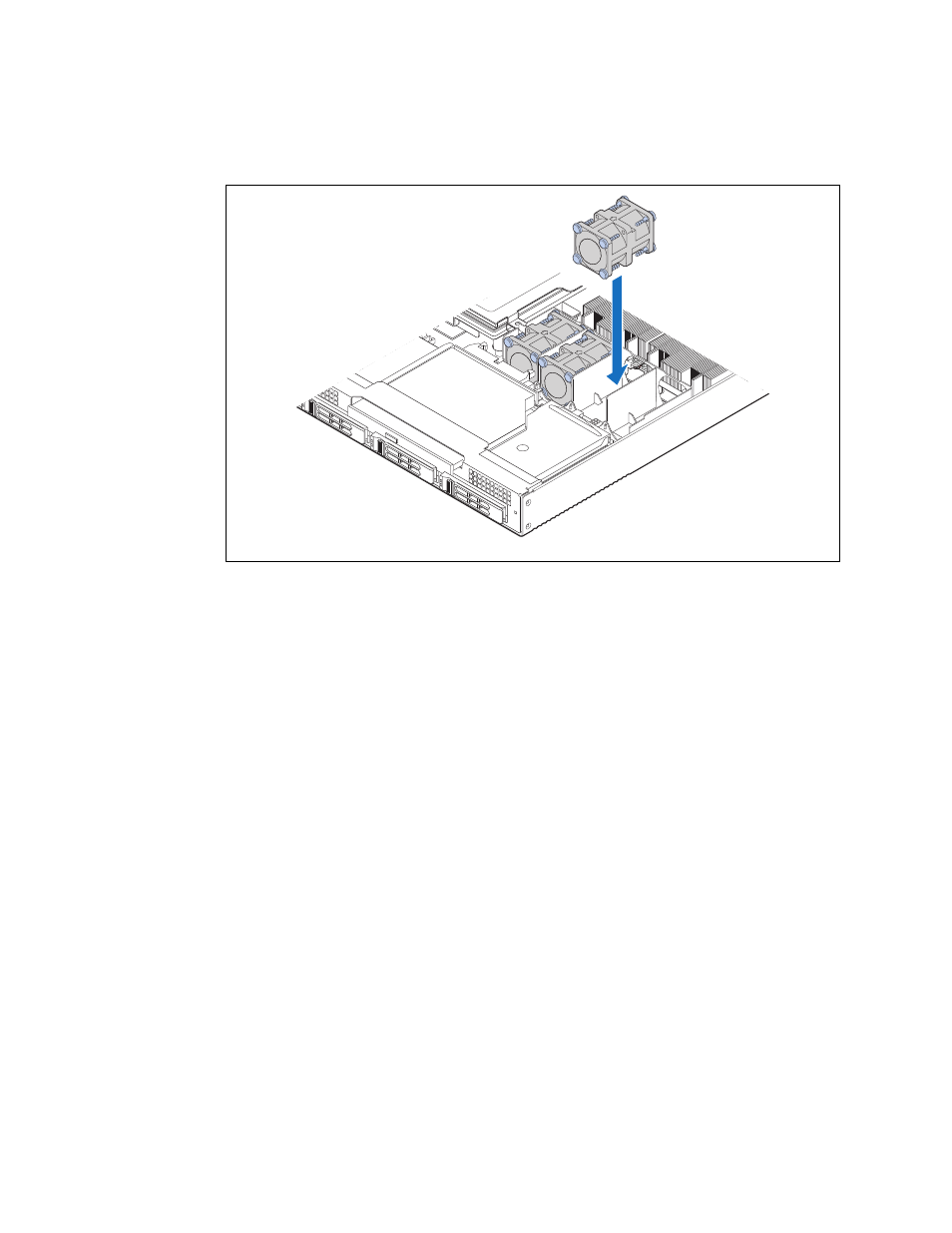

Figure 44. Installing Fans into the Four-Fan Assembly Bracket
TS000297
