2.1 Server Components

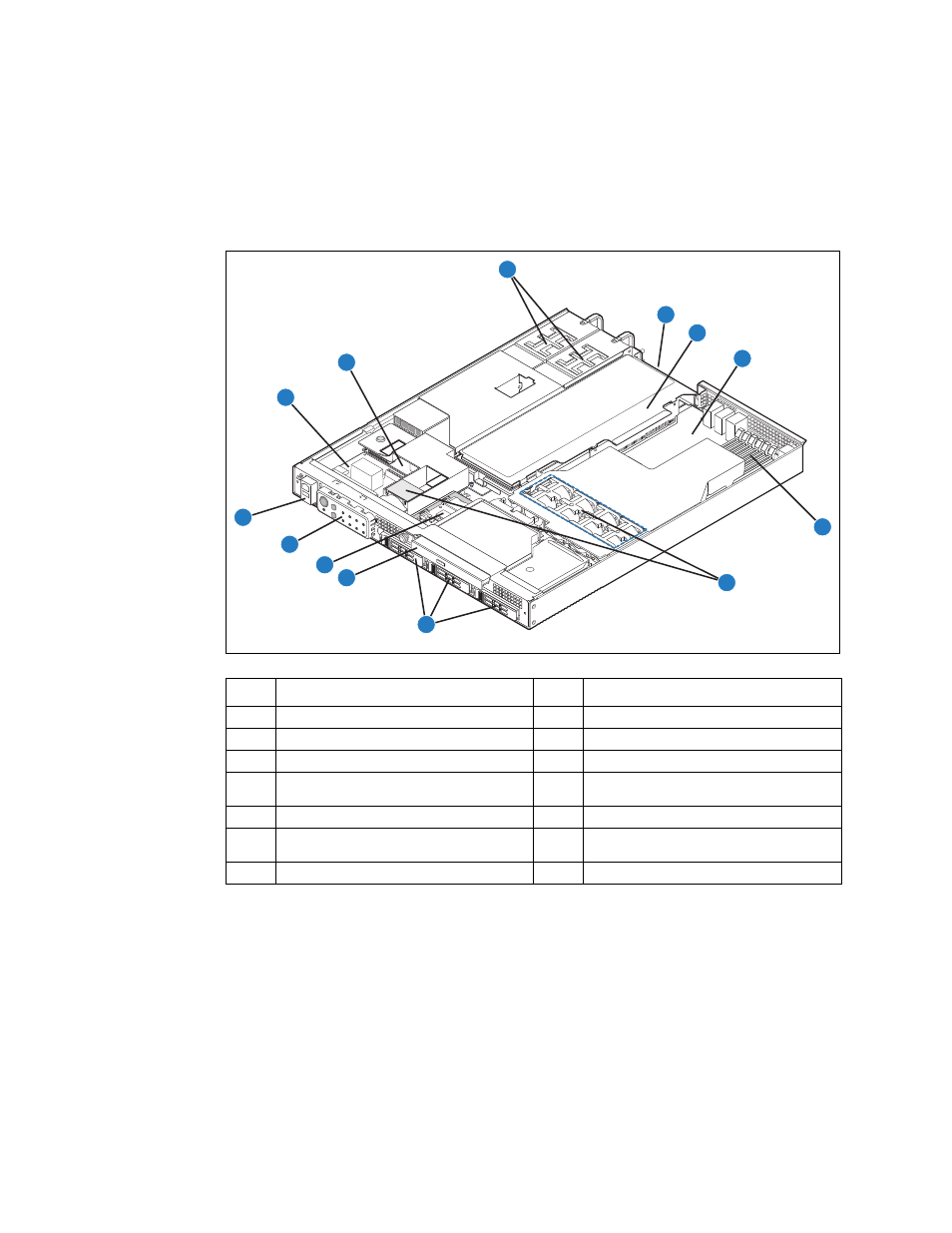

Figure 2 shows the internal components of the TIGW1U server (top cover and front
bezel removed).
Figure 2. Carrier Grade Server TIGW1U Components
Item Description Item Description
A SAS front panel (SFP) board H System fans
B Power distribution board (PDB) I SAS hard disk drive bays
C Power supplies (AC or DC) J Optical drive
D PCI card bracket (full-length) K
SMART Embedded USB Solid-State Drive
(optional)
E Riser card assembly L Front panel LEDs and switches
F Server board M
Front panel serial port (COM2 / Serial B),
USB connector
G System memory
AF000801
G
A
B
C
I
J
K
M
L
D
E
F
H
