Features—TIGW1U server
type of PCI add-in card configured in the PCI-X riser card. For detailed information
about the pinouts and electrical specifications, see the Kontron Carrier Grade Server
TIGW1U Technical Product Specification.
2.8.2 PCI Express Riser Card
The PCI Express (PCIe) riser card implements a x8 link interface and can be used with
add-in cards with a x1, x4, or x8 interface. For detailed information about the pinouts
and electrical specifications, see the Kontron Carrier Grade Server TIGW1U Technical
Product Specification.
2.9 Power Supply
The power subsystem has up to two power supply modules capable of operating in
redundant mode and a power distribution board (PDB). A power supply filler panel for
the empty power supply site is supplied for systems without redundancy.
The power supply is rated for 450 W output capability in full AC (or DC) input voltage
range.
2.10 System Cooling
There are three cooling areas in the TIGW1U server: front panel board area, PCI area,
and CPU-memory-HDD area.

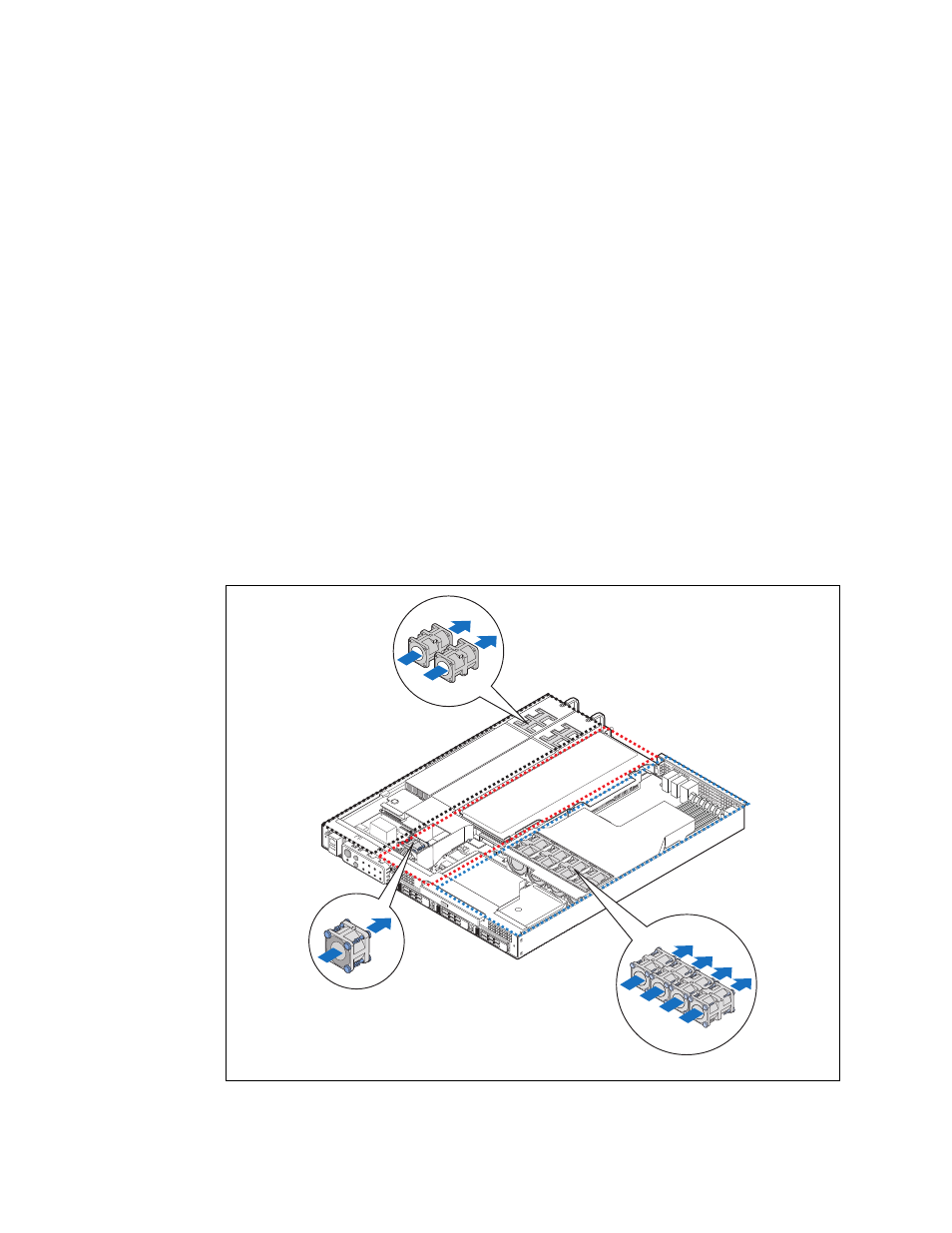

Figure 8. Cooling Areas
Front Panel
Board Area
Airflow
PCI Area
Airflow
CPU-Memory-
HDD Area
Airflow
TS000216
