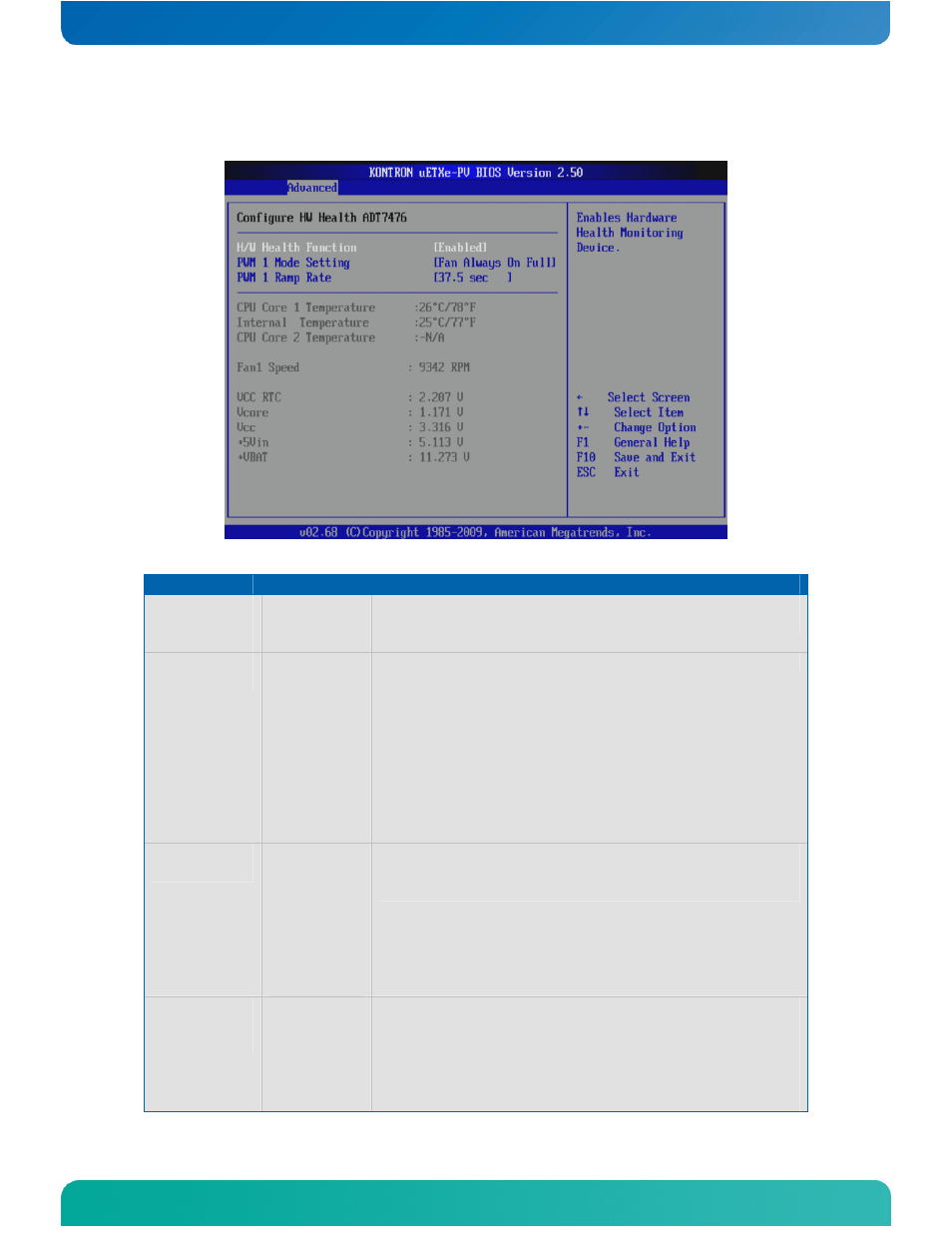

Hardware Health Configuration
Feature Option Description
H/W Health
Function
Enabled
Disabled
Enables Hardware Health Monitoring Device on
module
PWM 1 Mode
Setting Auto Fan
Mode
Fan Always
On Full
Fan
Disabled
Mode
Fan
Manually
Mode
Allows for adjusting fan controls
PWM 1 Ramp
Rate 37.5 secs
18.8 secs
12.5 secs
7.5 secs
4.7 secs
3.1 secs
1.6 secs
0.8 secs
Allows for adjusting the PWM Ramp Rate feature
(Does not appear if “PWM1 mode Setting” is set to
“Fan Disable Mode”)
Min PWM
1 Duty
Cycle Range = 0 -
255
Default =
130
Allows for adjusting the Minimum PWM Duty Cycle
Available only if “PWM1 Mode Setting” is set to
“Auto Fan Mode”.
(See
http://www.onsemi.com/pub_link/Collateral/ADT7476-
D.PDF
for more details)
