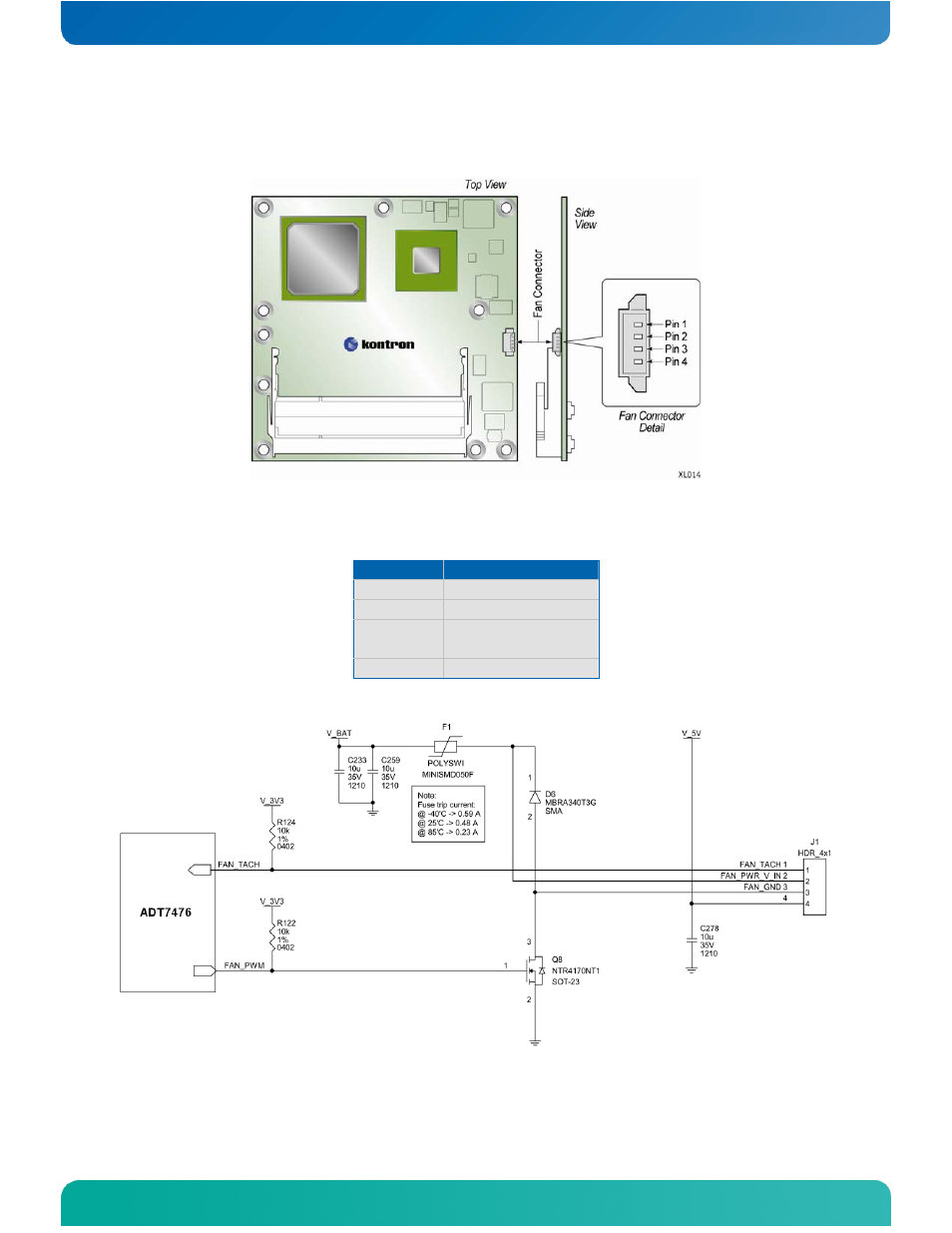

Figure 8: Fan Connector (J1) Location and Pin-Out
The onboard fan connector (J1) is on the right top side of the PCB.
Table 20: Fan Connector (J1) Pin-Out
Pin Description
1 Fan Tachometer
2 Power (12V)
3 Fan GND
(PWM controlled)
4 Power (5V)
Connector J1 specifications and Kontron part numbers for the components are:
» Part number: (Molex) 53261-0471
