Appendix SI6 Piggybacks
Juli 23, 1997 Page SI6- 7 © PEP Modular Computers

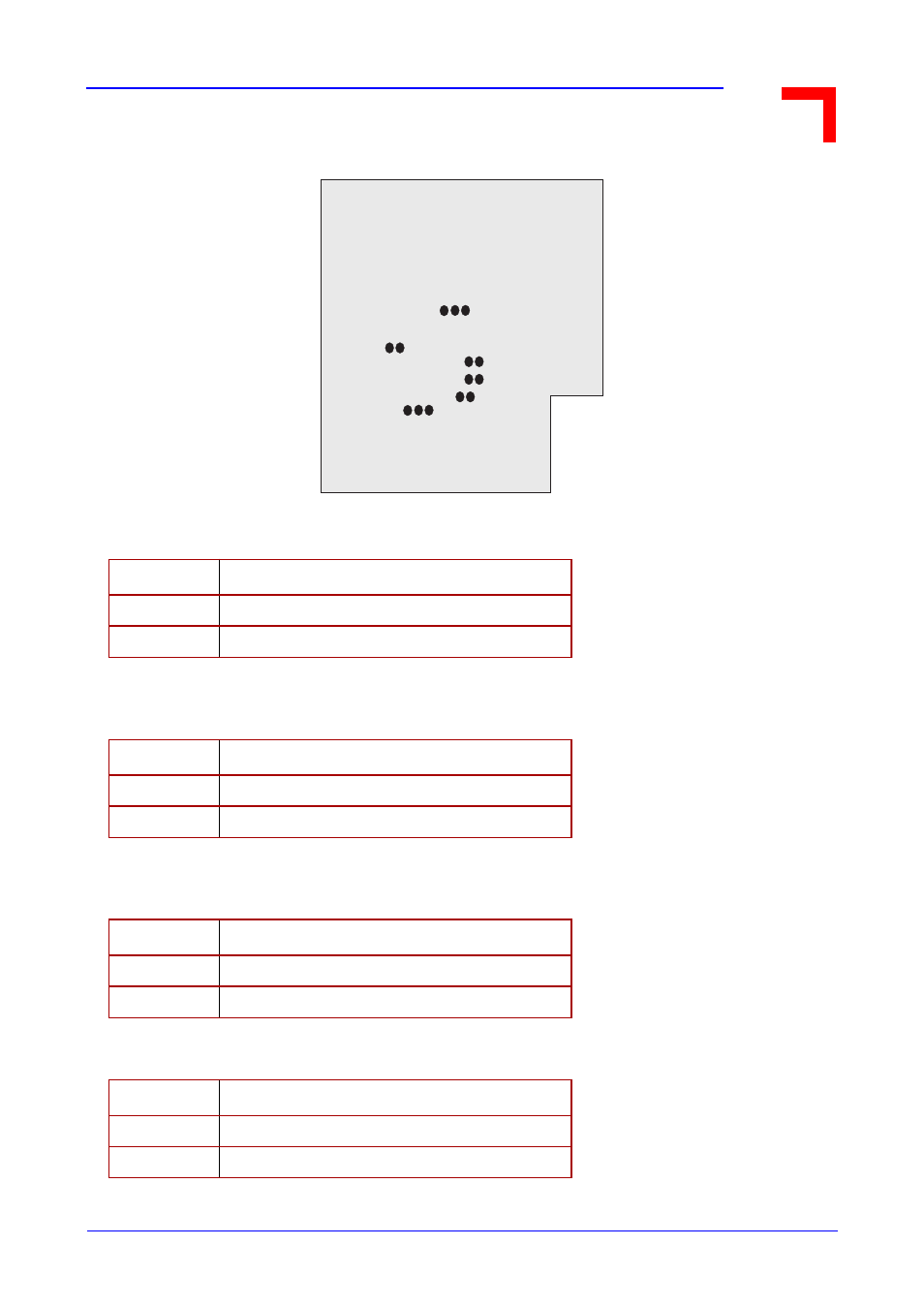

4.3 Jumper Location
Jumper J1 and J2: End-Of-Line Termination
Jumper J3 and J4: Idle Setting
Jumper J5:Isolating Voltage Supply
Jumper J6: Received Control
Setting Descirption
Open No internal line termination Default
Set Internal line termination
Setting Descirption
Open No internal idle status Default
Set Internal idle status
Setting Descirption
1-3 Isolating VCC supplied internally Default
1-2 Isolating VCC supplied externally
Setting Descirption
1-3 Receive permanently enabled Default
1-2 Receive enabled
J3
J3
J2
J1
J5
J6
2 1 3
2 1 3
