3 jumper location, Appendix si6 piggybacks – Kontron VM162 User Manual
Page 89
Appendix SI6 Piggybacks
4
Juli 23, 1997
Page SI6- 5
© PEP Modular Computers

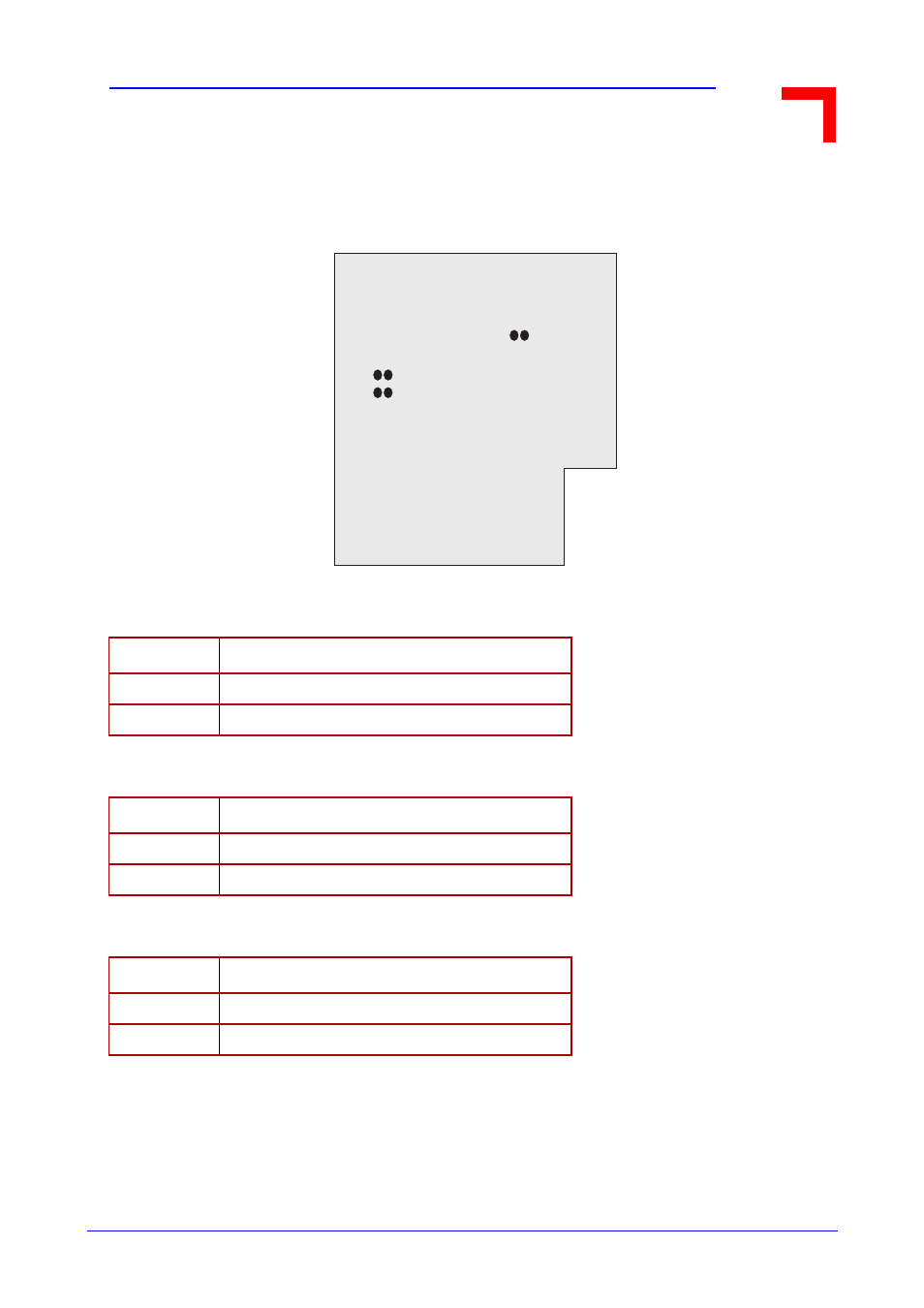

3.3 Jumper Location
Jumper J1: Squelch Threshold
Jumper J2: Link Test
Jumper J3: Shielding
Setting
Descirption
Open
Normal
Default
Set
4.5dB reduced threshold
Setting
Descirption
Open
Link Test enables
Default
Set
Link Test disabled
Setting
Descirption
Open
Unshielded, 100
Ω
termination
Default
Set
Shielded, 150
Ω
termination
J2
J1
J3
