VM162/VM172
Chapter 1 Introduction
Juli 23, 1997
Page 1- 5
© PEP Modular Computers
SC and SI6 piggybacks adapt the multi-protocol serial channels of the ‘QUICC’ to the physical inter-
faces provided on the VM162/172’s front-panel and CXC:
SCC1 channel supports:
SI6-10B5
Ethernet 10base5 (AUI)
SI6-10B2
Ethernet 10base2 (Thin)
SI6-10BT
Ethernet 10baseT (Twisted Pair)
SI6-PB485-ISO
Optoisolated RS485
SCC2 to SCC4 channels support:
SC-232I
Optoisolated RS232 Modem module
SC-485I
Optoisolated RS485 piggyback

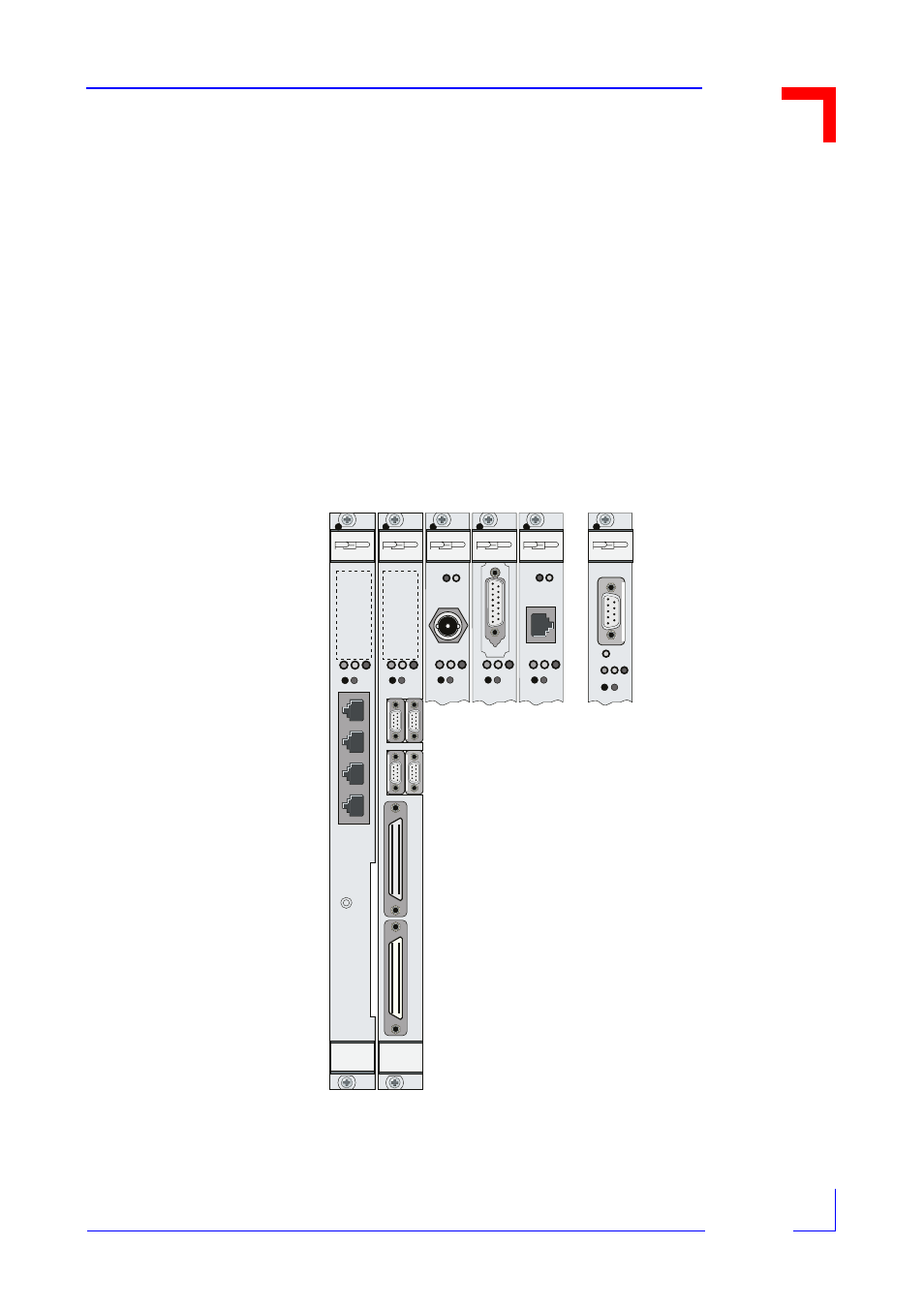

Figure 1.1 Front Panel Options
U
W
H
RST
AB
TERM
SER1
SER2
SER3
RS485-ISO
Tx
U W H
RST
AB
ETHERNET
10Base5
ETHERNET
Col Tx
10Base2
Col Tx
10BaseT
ETHERNET
VM162
TERM SER 1
SER 3
SER 2
RST
AB
IndustryPack
Interface
B
IndustryPack
Interface
A
U
W
H
VM162
RST
AB
U
W
H
RST
AB
U
W
H
RST
AB
U
W
H
Ethernet,RS485
o
r
Blank
Front-Panel
Connector
Ethernet,RS485
o
r
Blank
Front-Panel
Connector
