VM162/VM172 Chapter 2 Functional Description
Page 2- 20 © PEP Modular Computers Juli 23, 1997
2.8 Serial Communication Ports
The 5 serial ports of the VM162/VM172 are based on the 4 SCCs and 1 SMCs of the 68EN360. These
multiprotocol serial ports can be physically translated to the different standards due to application spe-
cific demands. A view of the range of front panels available for the VM162/VM172 can be found in Fi-
gure 1.1 of this manual.

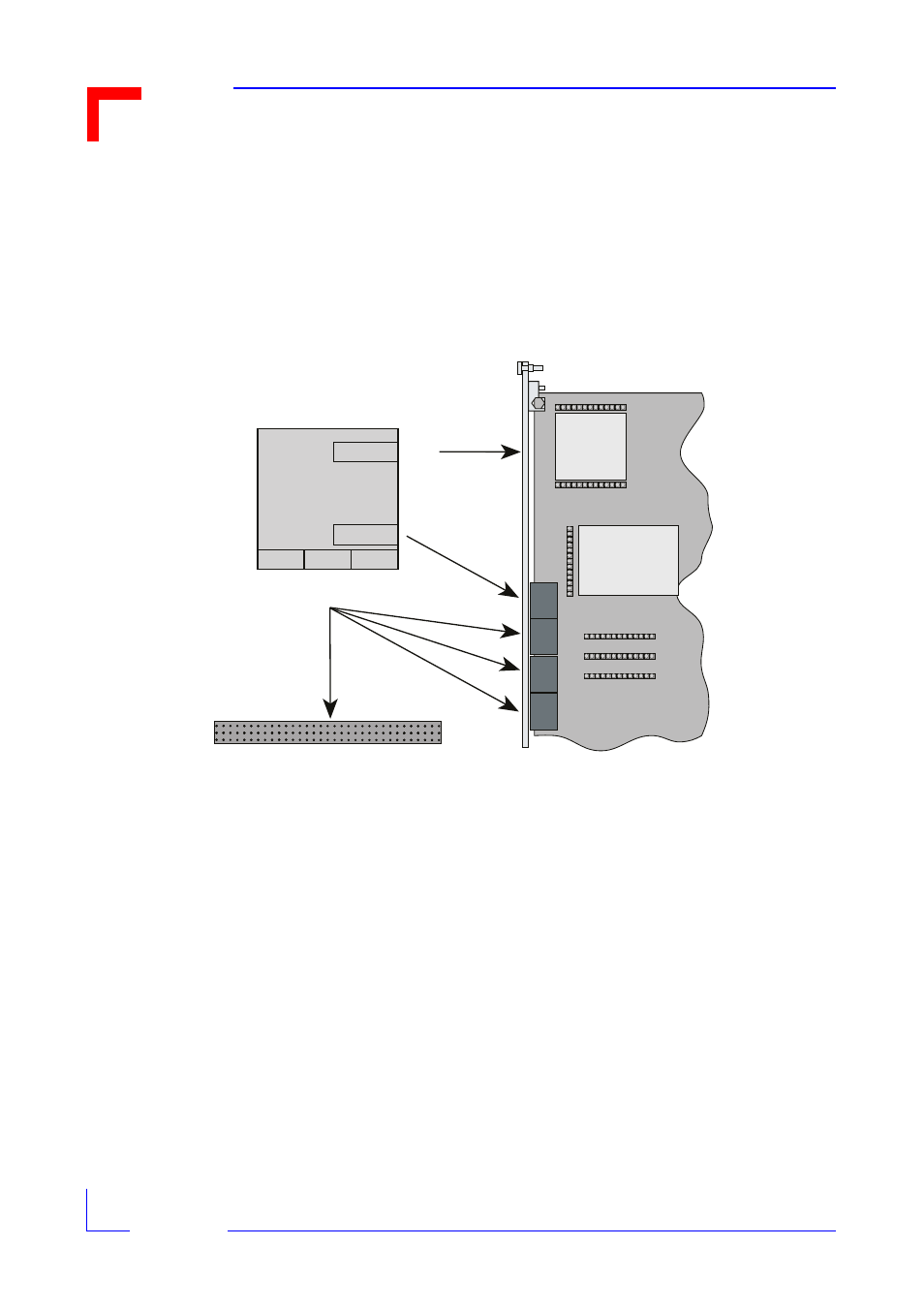

Figure 2.2 MC68EN360 Channel Assignment
This translation between the ‘raw’ 68EN360 signals and ready configured port on the front panel is very
flexible on the VM162/VM172 by using SI and SC piggybacks or even CXMs. 5 configured serial ports
are available on the front panel connectors.
The Table on the following page shows the availability of the various logical serial ports on the internal
interfaces for physical configuration.
}
}
Real-Time
Clock
SI-Piggyback
Interface
SI-Interface
CXC Interface
RS232 with
Rx and Tx only
SC-Piggyback
Interfaces
MC68EN360
SCC2 SCC3 SCC4
SCC1
SMC1
3x Serial Interfaces for
SC-Piggyback And CXC
MC68EN360 Channel
Assignment
