EFCO 8800 Series Assembly Instructions Vol.1 - Manual (Page 9)

EFCO 2009 Page 9
Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 1
H10N
Section 2 - Parts Identification : A. Fasteners and Accessories

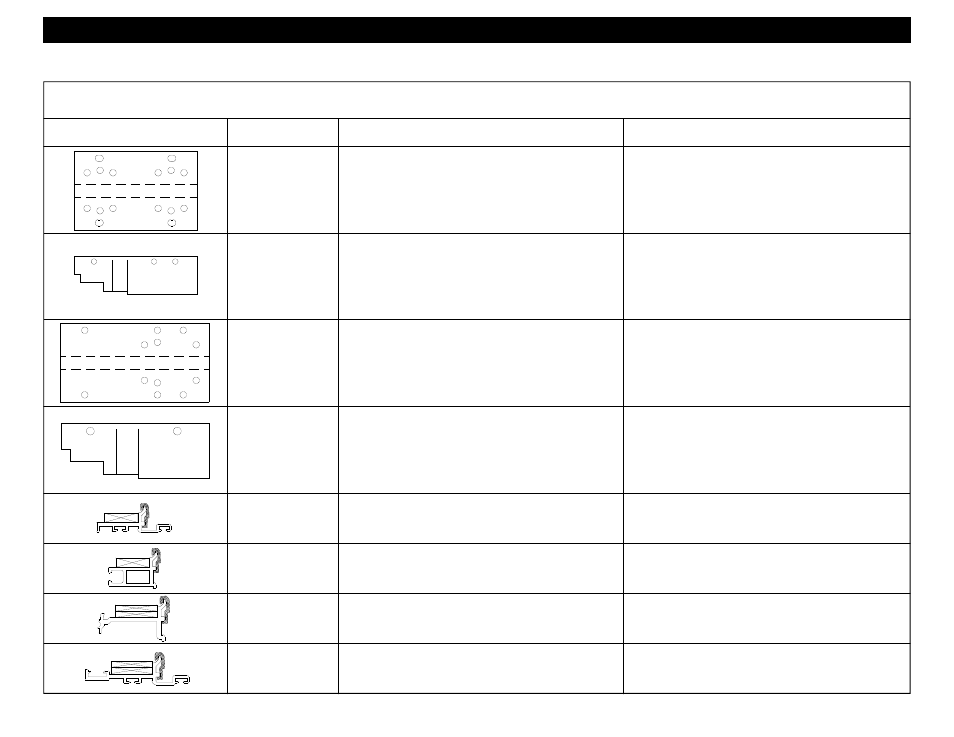

Profile Part # Description Material
Accessories
FRAME GASKET FOR 7” STACK HEAD AND
INTERMEDIATE HORIZONTAL
15 LB DENSITY BLACK FOAM PVC WITH
PRESSURE SENSITIVE ADHESIVE ON ONE
SIDE
H10V FRAME GASKET FOR 8” STACK SILL
15 LB DENSITY BLACK FOAM PVC WITH
PRESSURE SENSITIVE ADHESIVE ON ONE
SIDE
H10T
FRAME GASKET FOR 8” STACK HEAD AND
INTERMEDIATE HORIZONTAL
15 LB DENSITY BLACK FOAM PVC WITH
PRESSURE SENSITIVE ADHESIVE ON ONE
SIDE
H10P FRAME GASKET FOR 7” STACK SILL
15 LB DENSITY BLACK FOAM PVC WITH
PRESSURE SENSITIVE ADHESIVE ON ONE
SIDE
KV01
KV02
KV03
KV04
TEMPORARY GLAZING LOCATER - SSG
STACK SILL
TEMPORARY GLAZING LOCATER - SSG
INTERMEDIATE HORIZONTAL
TEMPORARY GLAZING LOCATER -
CAPTURED STACK SILL
TEMPORARY GLAZING LOCATER -
CAPTURED INTERMEDIATE HORIZONTAL
K-PART MADE FROM FM32, HS32, FM37
K-PART MADE FROM FM30, HS32, FM37
K-PART MADE FROM FM33, (2) HS31, FM37
K-PART MADE FROM FM34, HS32, FM37
