EFCO 2009

Page 26

Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 1

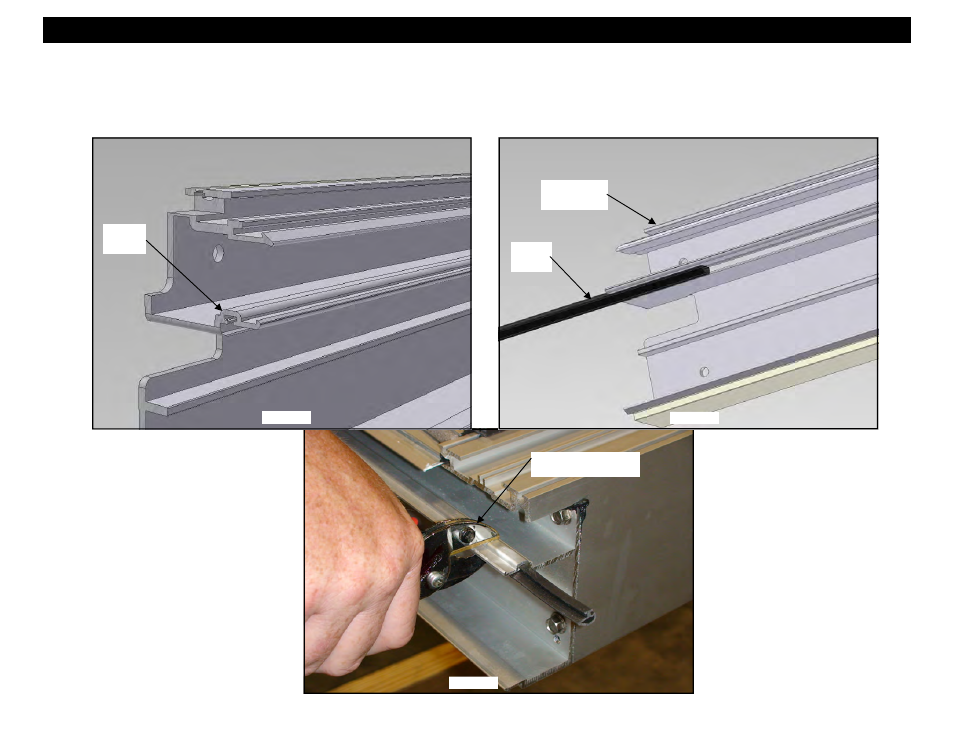

1. Slide WC21 gasket into the male vertical mullion. Exercise care to avoid stretching the gasket. The gasket should be crowded when inserted into the gasket

reglet and overhang each end of the mullion at least 1”.

2. The mullion gasket reglet must be carefully crimped at each end, and along the length in multiple locations (24” on centers), to retain the gasket and keep it

from slipping at the ends (see Figure 3).

WC21

Gasket

Male Vertical

Mullion

Gasket

Reglet

Section 3 - Unit Frame Assembly : A. Mullion Subassembly

Figure 1

Figure 2

Figure 3

Modified gasket
cutters or similar tool.
