EFCO 2009
Page 11
Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 1
KV15

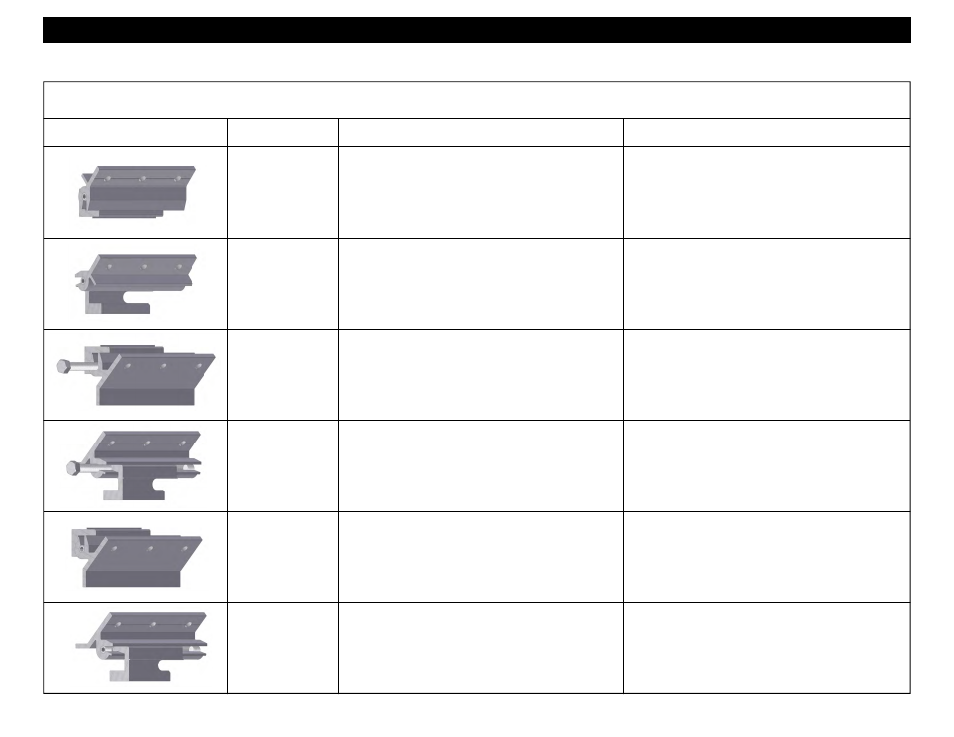

Section 2 - Parts Identification : A. Fasteners and Accessories
Depiction Part
#
Description Material
Accessories
RIGHT HAND WIND LOAD MULLION
ANCHOR ASSEMBLY - 90 DEGREE
OUTSIDE CORNER
K-PART MADE FROM FM05, FM07, AND (2)
M170
KV16
LEFT HAND WIND LOAD MULLION ANCHOR
ASSEMBLY - 90 DEGREE OUTSIDE
CORNER
K-PART MADE FROM FM05, FM07, AND (2)
M170
KV05
RIGHT HAND DEAD LOAD MULLION
ANCHOR ASSEMBLY - 90 DEGREE INSIDE
CORNER
K-PART MADE FROM M169, FM06, FM08,
AND M170
KV06
LEFT HAND DEAD LOAD MULLION
ANCHOR ASSEMBLY - 90 DEGREE INSIDE
CORNER
K-PART MADE FROM M169, FM05, FM08,
AND M170
KV17
RIGHT HAND WIND LOAD MULLION
ANCHOR ASSEMBLY - 90 DEGREE INSIDE
CORNER
K-PART MADE FROM FM06, FM08, AND (2)
M170
KV18
LEFT HAND WIND LOAD MULLION
ANCHOR ASSEMBLY - 90 DEGREE INSIDE
CORNER
K-PART MADE FROM FM05, FM08, AND (2)
M170
