Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 1

10. Apply the “Z” clip caulk backer to the bottom end of all vertical mullions.
11. Thoroughly clean the surfaces of the “Z” clip and mullion that will contact sealant.
12. Apply a bead of sealant to the mullion as shown in Figure 11.
13. Apply a bed of sealant to the “Z” clip on the face of the 1 1/2” long leg as shown in Figure 12.
14. Apply the “Z” clip to the vertical, pressing it into the sealant on the mullion. The “Z” clip must align with the edges of the notch in the mullion as shown in

Figure 15.

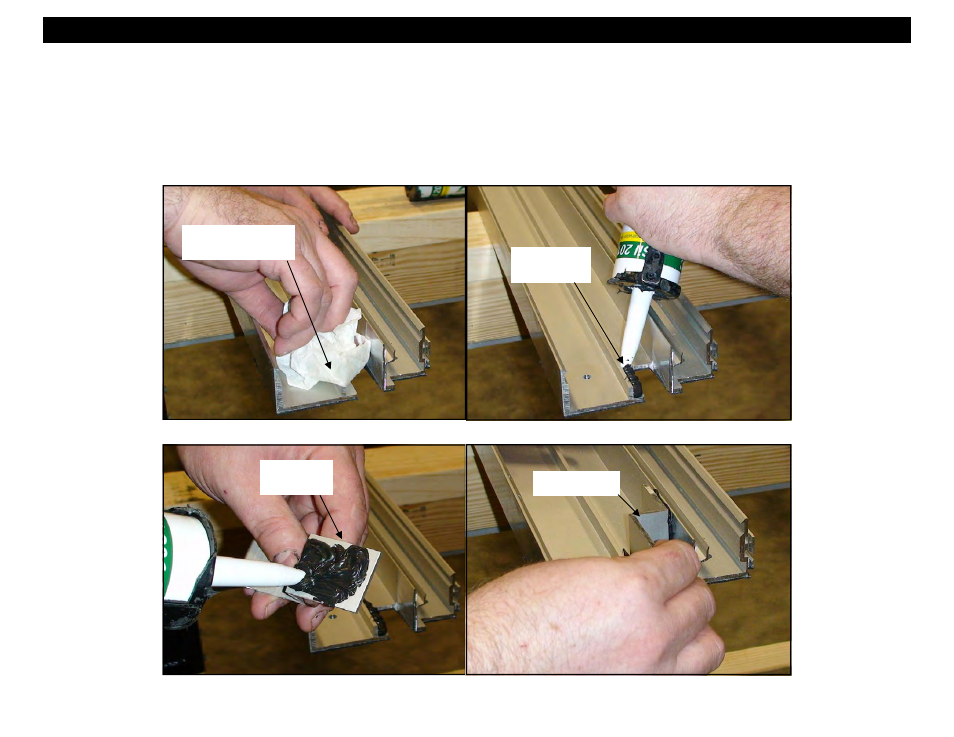

Figure 10

Figure 11

Figure 12

Figure 13

Section 3 - Unit Frame Assembly : A. Mullion Subassembly

Clean the bottom of the

vertical mullion with

cleaner.

Apply a bead of

sealant to the

mullion.

Apply a bed of

sealant to the

“Z” clip.

Apply the “Z” clip

to the vertical.
