Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 1

KV08

Section 2 - Parts Identification : A. Fasteners and Accessories

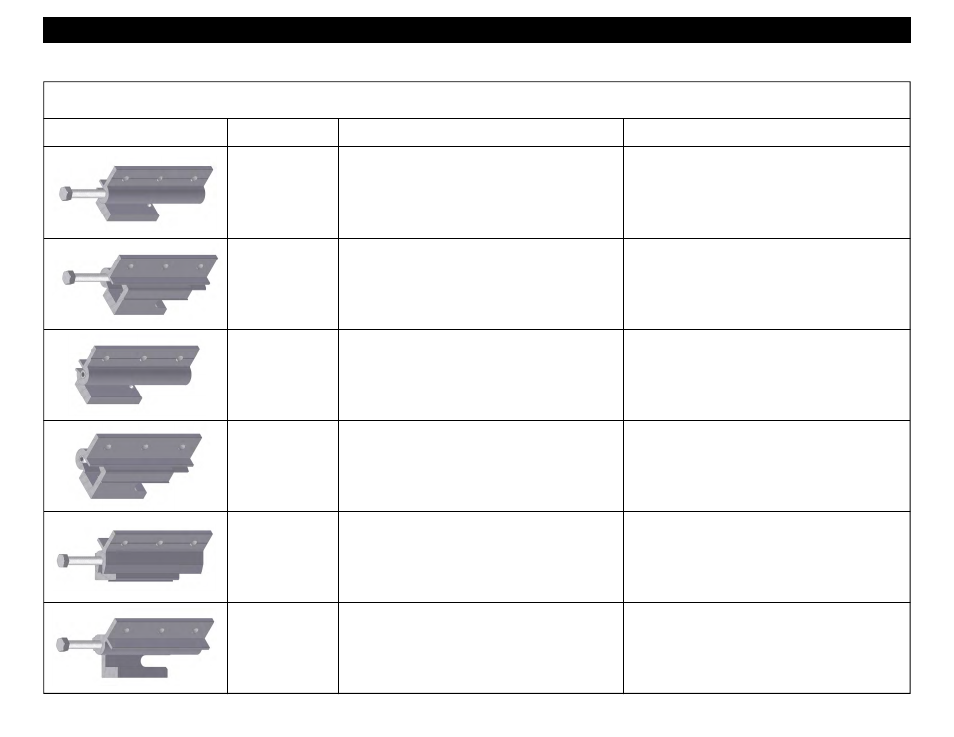

Depiction Part

#

Description Material

Accessories

RIGHT HAND DEAD LOAD MULLION
ANCHOR ASSEMBLY - FLAT WALL

K-PART MADE FROM M169, FM06, FM11,
AND M170

KV07

LEFT HAND DEAD LOAD MULLION
ANCHOR ASSEMBLY - FLAT WALL

K-PART MADE FROM M169, FM05, FM11,
AND M170

KV14

RIGHT HAND WIND LOAD MULLION
ANCHOR ASSEMBLY - FLAT WALL

K-PART MADE FROM FM06, FM11, AND (2)
M170

KV13

LEFT HAND WIND LOAD MULLION
ANCHOR ASSEMBLY - FLAT WALL

K-PART MADE FROM FM05, FM11, AND (2)
M170

KV09

RIGHT HAND DEAD LOAD MULLION
ANCHOR ASSEMBLY - 90 DEGREE
OUTSIDE CORNER

K-PART MADE FROM M169, FM06, FM07,
AND M170

KV10

LEFT HAND DEAD LOAD MULLION
ANCHOR ASSEMBLY - 90 DEGREE
OUTSIDE CORNER

K-PART MADE FROM M169, FM05, FM07,
AND M170
