EFCO 2009

Page 28

Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 1

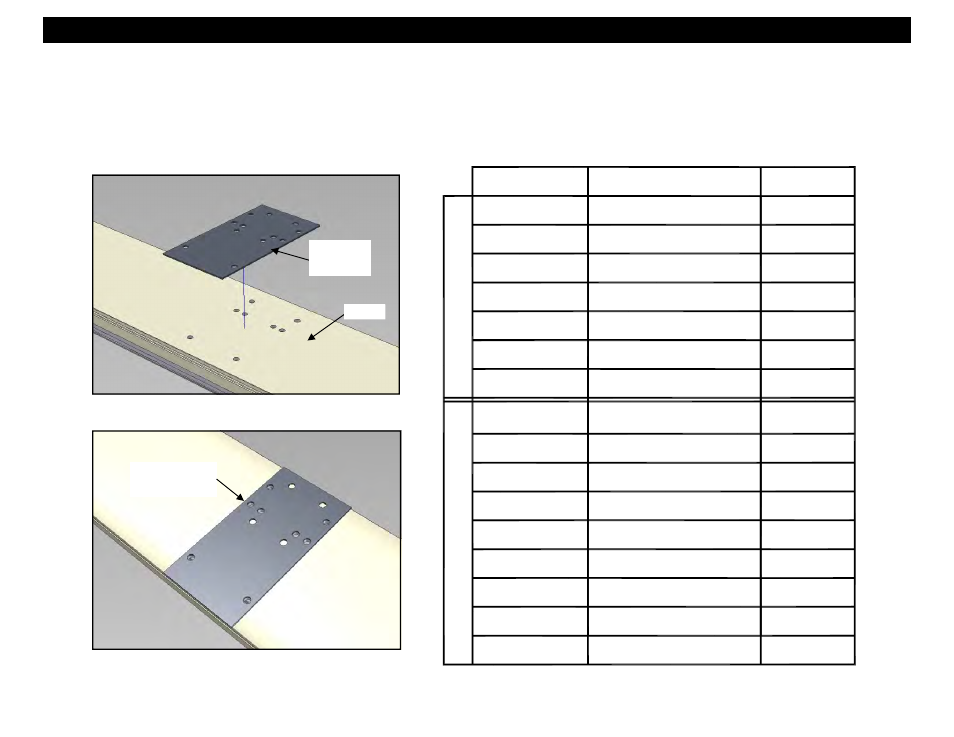

8. Frame pads are required at each mullion intersection. See Table 1.
9. Note: Some pads have right hand and left hand versions and will be provided on a roll, side by side. Tear the pads at the serrations and use the handed pads

as required.

Figure 8

Figure 9

Section 3 - Unit Frame Assembly : A. Mullion Subassembly

TABLE 1

Apply frame
pad to the
mullion.

Vertical

Align the holes in

frame pad with

holes in mullion.

FRAME

PAD

H10P

17B2

17C1

DESCRIPTION

STACK SILL

STACK HEAD

INTER. HORIZ.

7" SYSTEM

8" SYSTEM

17H0

17H1

17H2

STACK SILL

STACK HEAD

INTER. HORIZ.

17B0

H10N

H10N

H10V

H10T

H10T

17D7

HEAD

H10N

17H3

HEAD

H10T

17K2

CONCEALED VENT

HORIZ.

H11B
