EFCO 2009

Page 27

Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 1

Section 3 - Unit Frame Assembly : A. Mullion Subassembly

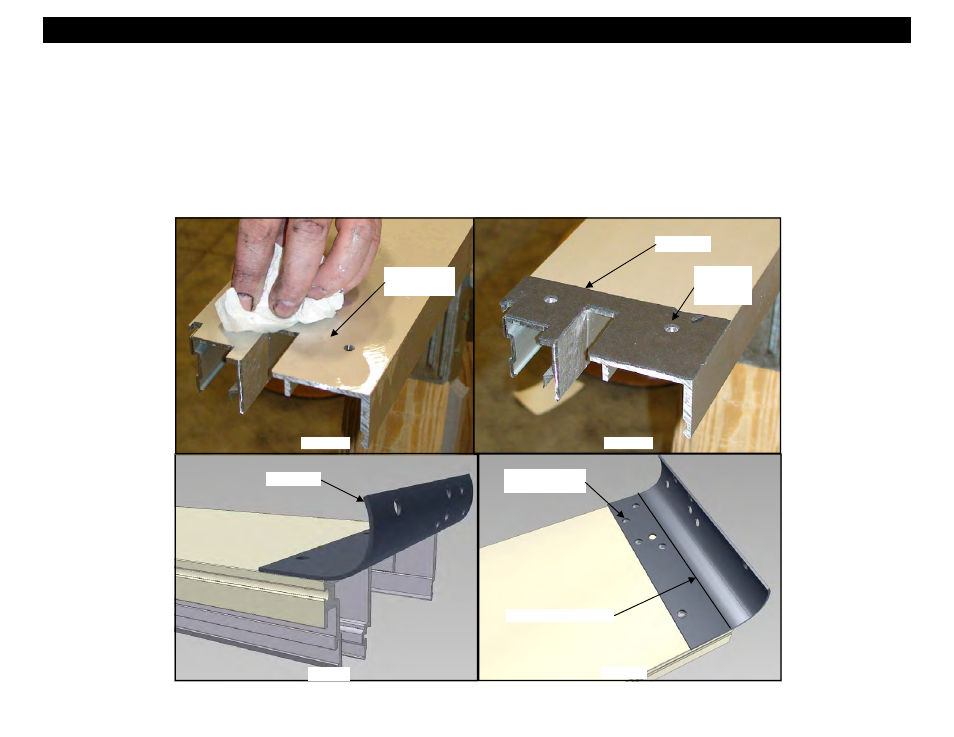

3. Identify the appropriate frame gasket for the intended application (refer to the parts list cross reference on the following page for more information).
4. Clean the mullion surfaces that will contact the frame pads. Using an approved solvent or cleaner, clean the surfaces of all oils and other

contaminants.

5. Remove the liner from the frame gasket and apply it to the matching surface of the mullion ensuring the holes and edges align as required. (There may be

excess holes in the frame gasket without a corresponding hole in the mullion as the gaskets are designed for multiple application locations.)

6. Smooth out the frame gasket onto the mullion surface by forcing out any remaining air bubbles.
7. Tear the excess gasket material at the serrations in areas where the gasket overhangs as shown in Figure 6 and 7.

Frame Pad

Clean mullion
surfaces.

Figure 5

Figure 4

Figure 6

Frame Pad

Align holes in

mullion and pad.

Figure 7

Align holes
in mullion
and pad.

Tear pad at serrations.
