Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 1

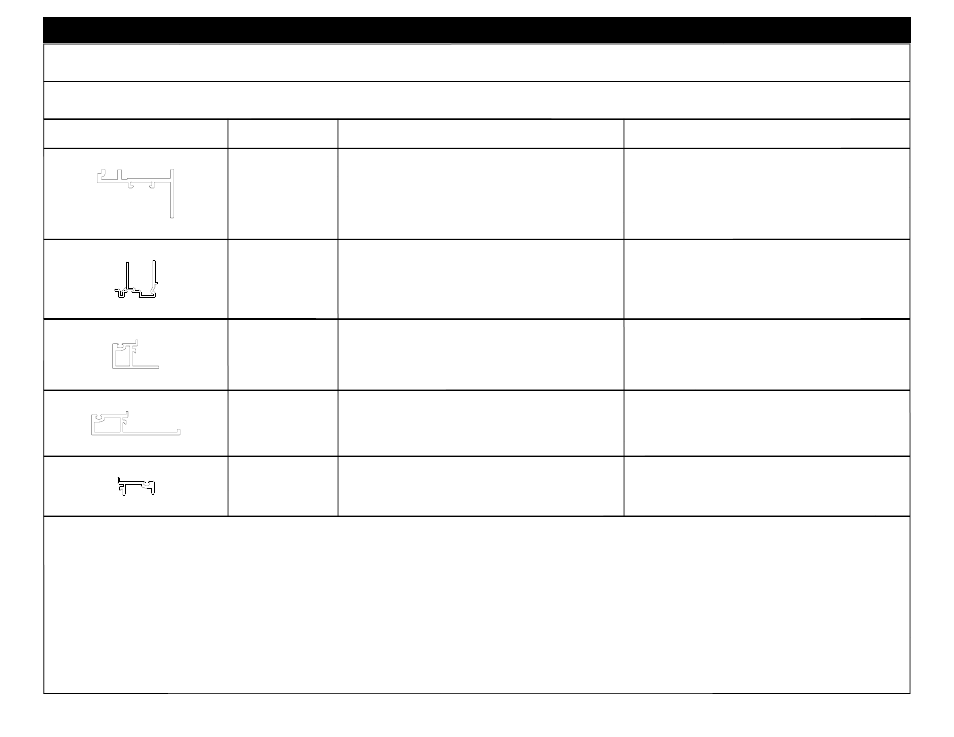

Section 2 - Parts Identification : H. Concealed Vent Extrusions

Profile

Part #

Description

Tooling/Cut Length Formula

Concealed Vent Extrusions

17L5

CONCEALED VENT JAMB ADAPTER

U17L5-001, U17L5-002

17L4

POCKET FILLER FOR CAPTURED
CONCEALED VENT

REFER TO SHOP DRAWINGS

17L1

CAPTURED SILL SASH COVER AT STACK
SILL

CUT TO LENGTH - HORIZONTAL D.L.O.
MINUS .375

17L2

HORIZONTAL COVER FOR CONCEALED
VENT

CUT TO LENGTH - HORIZONTAL UNIT DIM.
MINUS .250

17L3

BEAD AT CONCEALED VENT HORIZONTAL
AT SILL SASH

CUT TO LENGTH - D.L.O. MINUS .063
