Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 1

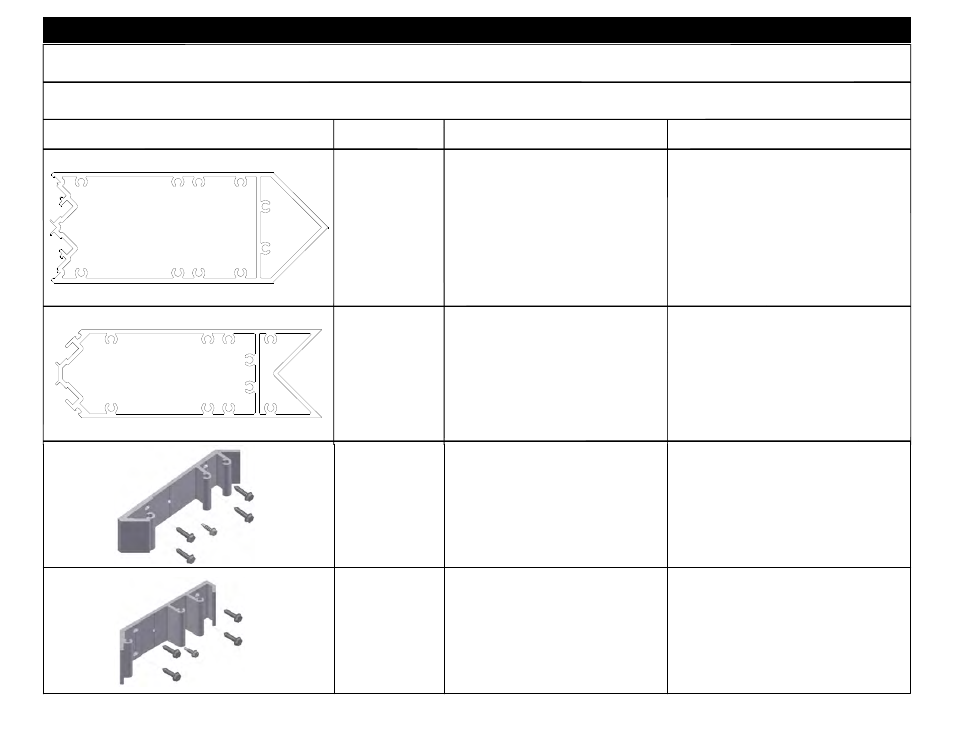

Section 2 - Parts Identification : F. Corner Extrusions - 8" System
Profile Part # Description Tooling/Cut Length Formula
Frame Extrusions - 8" System Corners
17J4
CAPTURED AND SSG 90° I.S.
CORNER MULLION
U17J4-001, U17J47-002
17J5
CAPTURED AND SSG 90° O.S.
CORNER MULLION
U17J5-001, U17J5-002
17J6
FABRICATED #
KV11
CAPTURED AND SSG INTERM.
HORIZONTAL 90° O.S. CORNER
SHEAR BLOCK REFERENCE KV11 K-PART MADE
FROM (4) SM00, (1) STK3, (1) FM35
USE WITH (7) STD0
17J7
FABRICATED #
KV12
CAPTURED AND SSG INTERM.
HORIZONTAL 90° I.S. CORNER
SHEAR BLOCK REFERENCE KV12 K-PART MADE
FROM (4) SM00, (1) STK3, (1) FM36
USE WITH (7) STD0
