EFCO 8800 Series Assembly Instructions Vol.1 - Manual (Page 32)

EFCO 2009 Page 32
Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 1

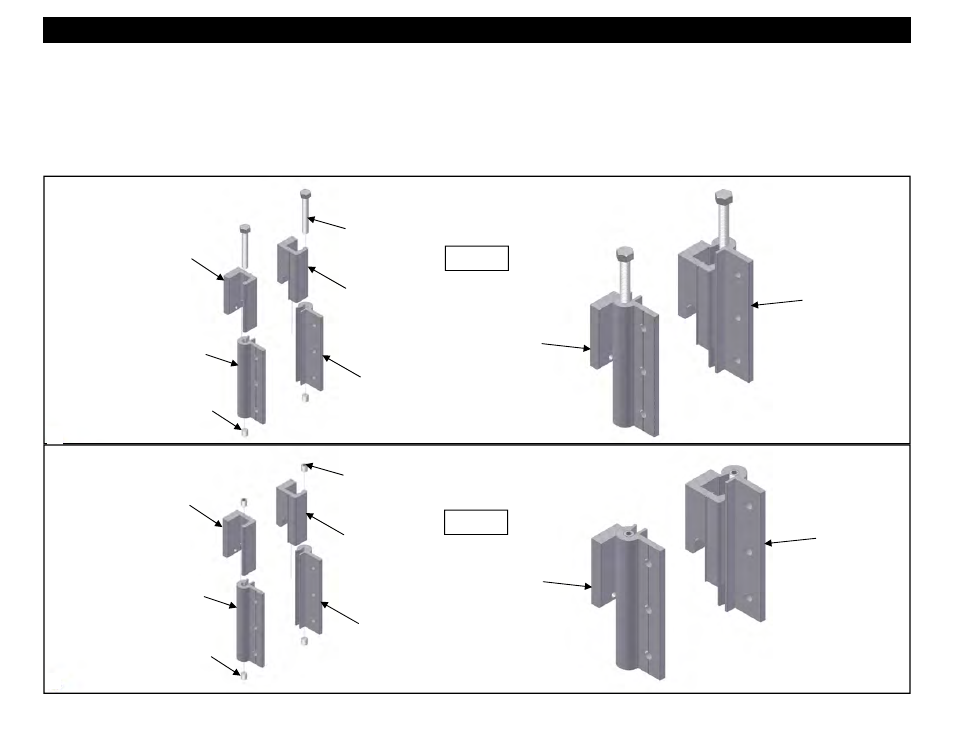

Figure 20
19. Assemble the anchor kits by screwing in the M170 set screw into the bottom of the FM11 mullion anchors until the set screw is flush with the bottom of the
anchor. (Left and Right Hand Assemblies Required.)
20. Slide the FM05 or FM06 hook anchor into the FM11 mullion anchor as shown in Figure 20 and 21. See END VIEW on page 33 for part orientation.
21. For the dead load anchor, screw a M169 hex head bolt into the top of the FM11 mullion anchor, half way into the anchor, so that 1 3/4” of the bolt extends
from it. See Figure 20 below. For the wind load anchor, screw a M170 socket set screw in the top of the anchor, flush with the top of FM11 as shown in
Figure 21, below.
Figure 21
Section 3 - Unit Frame Assembly : A. Mullion Subassembly
LEFT HAND
ASSEMBLY
(KV07)
TOP
BOTTOM
RIGHT HAND
ASSEMBLY
(KV08)
M169 Hex
Head Bolt
FM05 Hook
Anchor
FM06 Hook
Anchor
FM11 Mullion
Anchor
BOTTOM
M170 Socket Set Screw
(Set flush with bottom of FM11)
TOP
FM05 Hook
Anchor
FM06 Hook
Anchor
FM11 Mullion
Anchor
BOTTOM
TOP
M170 Socket Set Screw
(Set flush with top of FM11)
M170 Socket Set Screw
(Set flush with bottom of FM11)
DEAD LOAD
ANCHOR
WIND LOAD
ANCHOR
LEFT HAND
ASSEMBLY
KV13
RIGHT HAND
ASSEMBLY
KV14
FM11 Mullion
Anchor
FM11 Mullion
Anchor
TOP
BOTTOM
