EFCO 2009

Page 7

Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 1

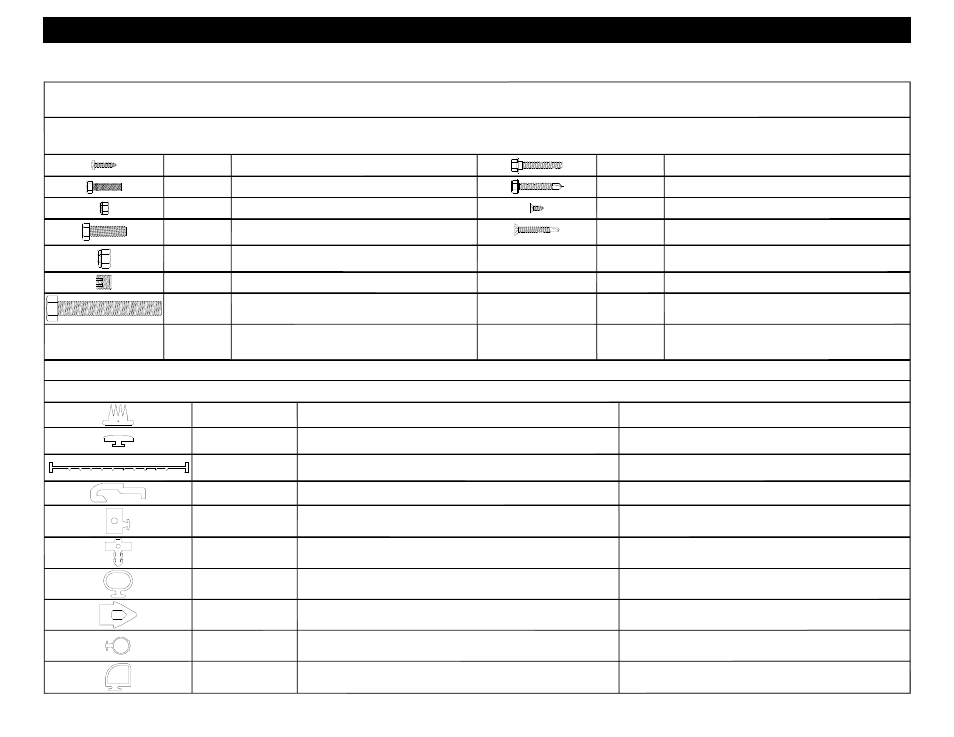

Section 2 - Parts Identification : A. Fasteners and Accessories

Profile

Part #

Description

SPZ1

#8-15 X 3/4" PL-PH-SMS 18-8 A

SFQ5

1/4"-14 X 1 1/2" HX- SMS 18-8 B

M171

1/4"-14 X 1 1/2" HWH #3 UC TEK 3 SG

IHP5

1/4"-20 X 1" HX- -MS 18-8

M173

1/4"-20 HX NYLON INSERT STOP NUT 18-8 HD

M174

3/8"-16 X 1 1/4" HX-MS 18-8

M172

3/8"-16 HX NYLON INSERT STOP NUT 18-8 HD

M170

1/2"-13 X 1/2" SHSS W/ CP - STEEL

M169

1/2"-13 X 3 1/2" HX-MS 18-8 (FULL THREAD)

Fasteners

Accessories

WC19

HORIZONTAL STACK JOINT SEAL GASKET

60 SHORE "A" DURO BLACK EPDM

LC23

HORIZONTAL STACK SPACER GASKET

BLACK RIGID PVC

WC17

HORIZONTAL STACK RAIN SCREEN GASKET

70 SHORE "A" DURO BLACK EPDM

L142

THERMAL ISOLATOR

HIGH TEMPERATURE PVC

WC18

STRUCTURAL SILICONE SPACER GASKET

90 SHORE "A" DURO BLACK SILICONE

WC16

FIN BAR PRESET ISOLATOR GASKET

85 SHORE "A" DURO BLACK SILICONE

WC20

FIN BAR BULB GASKET

70 SHORE "A" DURO BLACK EPDM

WVD1

PERIMETER ADAPTER RETAINER GASKET

70 SHORE "A" DURO BLACK EPDM

Profile

Part #

Description

Material

SFC7

STK8

#6-18 X 3/8” PL-FH-SMS 18-8 A

#8-18 X 1 3/16” PL-FH-SMS 410 TEK 2

Profile

Part #

Description

WA07

WS00

VENT BULB GASKET

VENT SURROUND GASKET

70 SHORE "A" DURO SANTOPRENE

70 SHORE "A" DURO BLACK SILICONE
